30148 - Toro 48" Recycler Mower Deck (SN: 020000001 - 029999999) (1992) DECK & SPINDLE ASSEMBLY Parts Diagram

48" Recycler Mower Deck

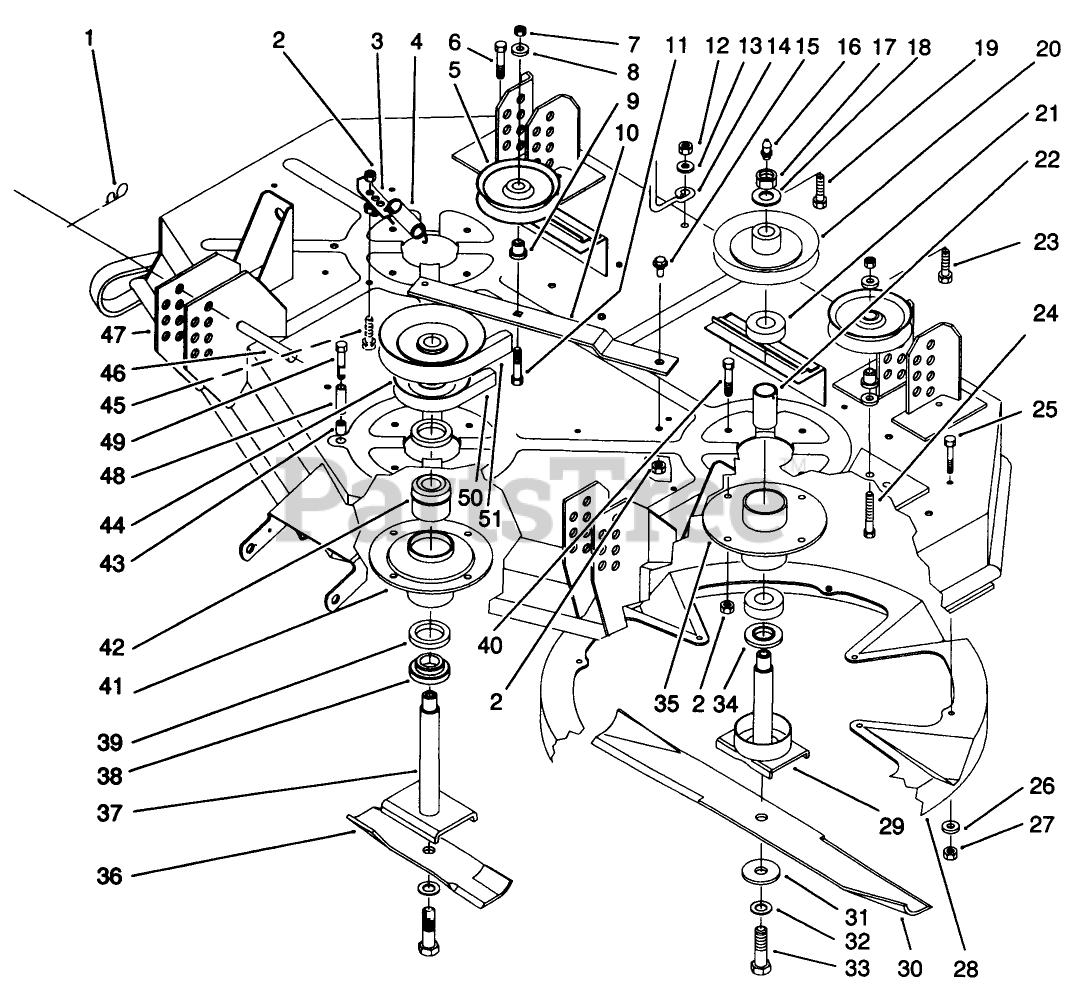

DECK & SPINDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

2

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

3

Toro 72-7590

ANCHOR SPRING R

$14.99

$

In Stock, only 1 left!

0

4

Toro 54-1160

SPRING-EXTENSION, DECK

$55.99

$

In Stock, only 2 left!

0

5

Toro 65-5940

PULLEY-IDLER

$43.99

$

In Stock, Qty 7

0

6

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

7

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

8

Toro 7-0081

WASHER-FLAT

$1.49

$

In Stock, only 1 left!

0

9

Toro 65-5950

BUSHING-PULLEY

$5.49

$

In Stock, Qty 16

0

10

Toro 72-7620

IDLER LEVER R

$

$

Not available

11

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

13

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

14

Toro 52-4782

BELT ROD

$

$

Not available

15

Toro 19-1470

SCREW-SHOULDER

$3.99

$

In Stock, Qty 5

0

16

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, only 2 left!

0

17

Toro 32146-20

NUT-HEX

$3.99

$

In Stock, only 4 left!

0

18

Toro 7-4150

WASHER

$1.49

$

In Stock, Qty 6

0

19

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

20

Toro 67-7690

PULLEY-DECK

$90.99

$

Usually ships in 3-6 days

0

21

Toro 251-257

BEARING-BALL

$15.99

$

In Stock, Qty 11

0

22

Toro 67-7580

SPACER-BEARING

$

$

Not available

23

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

24

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

25

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

26

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

27

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 3 left!

0

28

Toro 82-9890

KICKER INSERT

$

$

Not available

29

Toro 71-2780

SHAFT-SPINDLE
(Superseded to 71-2780-03)

$333.99

$

Usually ships in 3-6 days

0

30

Toro 72-7730

L/H BLADE

$

$

Not available

Toro 72-7740

R/H BLADE
(Superseded to 72-7740-03)

$58.99

$

Usually ships in 3-6 days

0

31

Toro 82-7460

BLADE WASHER

$

$

Not available

32

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

33

Toro 51-4060

SCREW-BLADE

$7.99

$

In Stock, Qty 14

0

34

Toro 67-7570

SPACER-SPINDLE

$12.99

$

In Stock, only 2 left!

0

35

Toro 67-7590

HOUSING-SPINDLE

$331.99

$

Usually ships in 3-6 days

0

36

Toro 72-7690

CENTER BLADE

$42.99

$

Usually ships in 3-6 days

0

37

Toro 51-3552

SHAFT-SPINDLE

$356.99

$

Usually ships in 3-6 days

0

38

Toro 27-0950

SPACER

$31.99

$

In Stock, only 1 left!

0

39

Toro 253-139

SEAL-OIL

$13.99

$

In Stock, Qty 5

0

40

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

41

Toro 82-5990

SPINDLE HOUSING

$

$

Not available

42

Toro 46-8530

BEARING ASM

$109.99

$

In Stock, only 4 left!

0

43

Toro 3290-472

INSERT-THREADED

$

$

Not available

44

Toro 82-2410

CENTER PULLEY WA

$298.99

$

Usually ships in 3-6 days

0

45

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

46

Toro 283-55

PIN-CLEVIS

$11.99

$

In Stock, Qty 5

0

47

Toro 14-3729

DECK W/DECALS

$

$

Not available

48

Toro 47-0920

OUTER TUBE SPACER

$

$

Not available

49

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

50

Toro 82-2390

V-BELT

$297.99

$

Usually ships in 3-6 days

0

51

Toro 82-6420

V-BELT

$159.99

$

Usually ships in 3-6 days

0
