30147 - Toro 112cm Side-Discharge Mower Deck (SN: 099000001 - 099999999) (1999) DECK AND COVERS Parts Diagram

112cm Side-Discharge Mower Deck

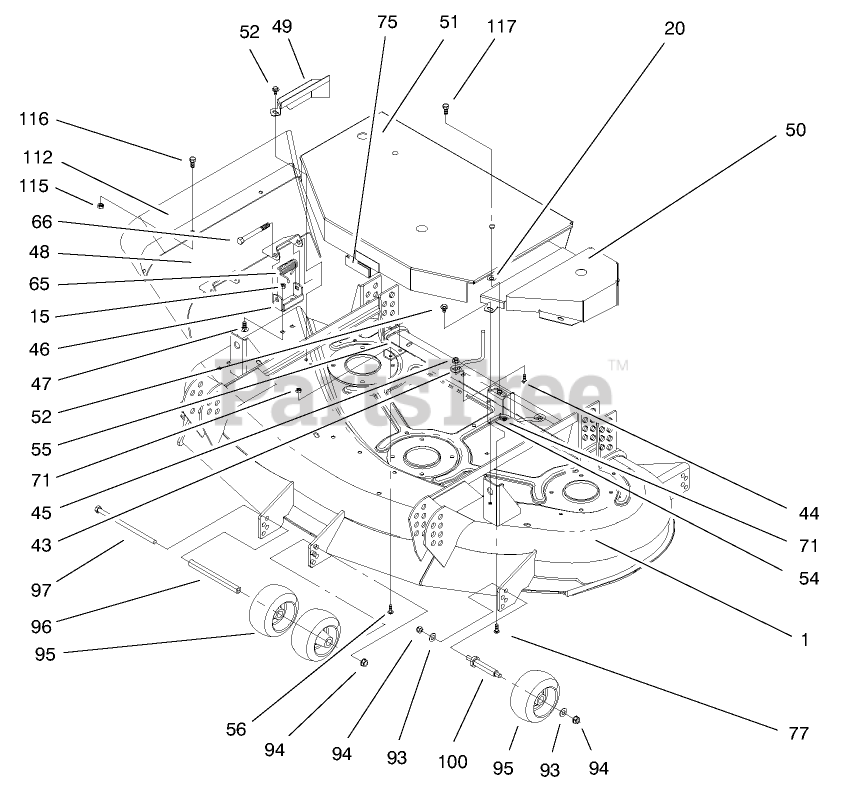

DECK AND COVERS Parts Diagram

  • Title
1

Toro 99-6449

RECYCLER DECK ASM

$

$

Not available

15

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

20

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

43

Toro 52-4780

ROD-BELT

$14.99

$

In Stock, Qty 6

0

44

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 14

0

45

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

46

Toro 29-5590-03

BRACKET-PIVOT

$

$

Not available

47

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 20+

0

48

Toro 57-6970-01

Deflector
(Superseded to 13-3899)

$

$

Not available

49

Toro 54-2250

Cover-RH
(Superseded to 54-2250-01)

$

$

Not available

50

Toro 54-2220

Cover-LH
(Superseded to 54-2220-01)

$166.99

$

Usually ships in 3-6 days

0

51

Toro 54-3190

Cover-Deck
(Superseded to 54-3190-01)

$

$

Not available

52

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, Qty 20+

0

54

Toro 54-3240

Bracket-Cover
(Superseded to 54-3240-03)

$

$

Not available

55

Toro 54-3230

Bracket-Cover RH
(Superseded to 54-3230-03)

$

$

Not available

56

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

65

Toro 40-6230

SPRING

$39.99

$

Usually ships in 3-6 days

0

66

Toro 3211-15

SCREW-HH

$9.49

$

Usually ships in 3-6 days

0

71

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

75

Toro 29-0641

TRIM-JIFFY

$5.99

$

In Stock, only 3 left!

0

77

Toro 3229-3

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0

93

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

94

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

95

Toro 68-2730

WHEEL-GAGE
(Superseded to 1-603299)

$23.99

$

In Stock, Qty 20+

0

96

Toro 98-5967

SPACER-WHEEL

$15.99

$

In Stock, Qty 20+

0

97

Toro 323-28

SCREW-HH

$8.49

$

In Stock, Qty 20+

0

100

Toro 99-2842

SPACER
(Superseded to 126-2928)

$27.99

$

In Stock, Qty 20+

0

112

Toro 93-9484

Guard-Deflector
(Superseded to 93-9484-01)

$

$

Not available

113

Toro 99-4578

Guard-Left
(Superseded to 99-4578-01)

Note: Not illustrated

$

$

Not available

114

Toro 99-4579

Guard-Right
(Superseded to 99-4579-01)

Note: Not illustrated

$

$

Not available

115

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

116

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

117

Toro 323-4

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

118

Toro 32144-14

SCREW-HWHTF

Note: Not illustrated

$4.99

$

In Stock, only 3 left!

0
