30147 - Toro 112cm Side-Discharge Mower Deck (SN: 099000001 - 099999999) (1999) CARRIER FRAME Parts Diagram

112cm Side-Discharge Mower Deck

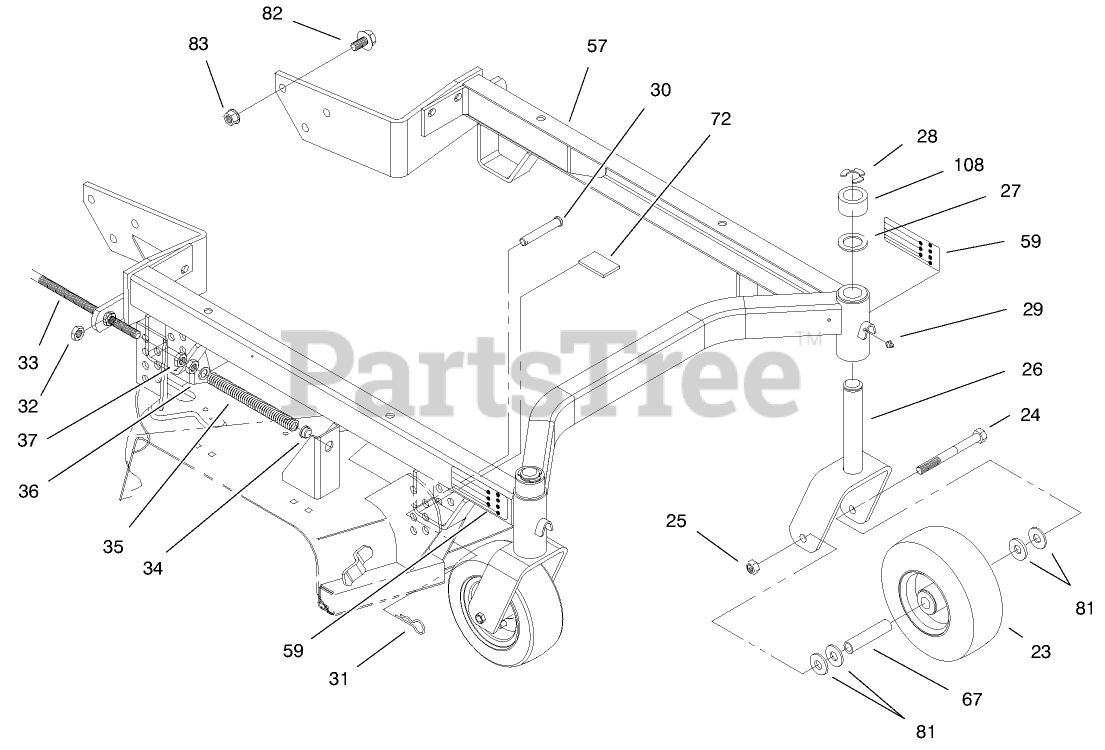

CARRIER FRAME Parts Diagram

  • Title

23

Toro 98-2859

CASTOR WHEEL ASM

$143.99

$

Usually ships in 3-6 days

0

24

Toro 325-19

SCREW-HH

$8.49

$

In Stock, only 4 left!

0

25

Toro 32153-5

NUT-HEX

$1.99

$

In Stock, Qty 13

0

26

Toro 98-2857

Castor Fork
(Superseded to 98-2857-01)

$

$

Not available

27

Toro 3-6781

WASHER-THRUST

$3.99

$

In Stock, Qty 20+

0

28

Toro 32151-91

RING-RETAINING

$2.49

$

In Stock, Qty 5

0

29

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

30

Toro 283-55

PIN-CLEVIS

$11.99

$

In Stock, Qty 5

0

31

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

32

Toro 3296-45

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

33

Toro 74-0310

SHAFT-ADJUSTING

$64.99

$

In Stock, only 2 left!

0

34

Toro 256-156

BUSHING-FLANGE

$13.99

$

In Stock, only 2 left!

0

35

Toro 74-0290

SPRING

$27.99

$

Usually ships in 3-6 days

0

36

Toro 41-8440

WASHER

$1.99

$

In Stock, only 4 left!

0

37

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

57

Toro 94-4175

FRAME ASM

$2121.99

$

Usually ships in 3-6 days

0

59

Toro 93-7819

DECAL-HOC

$9.99

$

Usually ships in 3-6 days

0

67

Toro 68-8980

SPANNER-TIRE

$10.99

$

In Stock, Qty 12

0

72

Toro 74-0340

CUSHION-RUBBER

$4.99

$

Usually ships in 3-6 days

0

81

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

82

Toro 3234-6

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

83

Toro 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0

108

Toro 93-1167

SPACER-CASTOR

$36.99

$

Usually ships in 3-6 days

0
