30145 - Toro 44" Side-Discharge Mower Deck (SN: 069000001 - 069999999) (1996) DECALS AND BAFFLES Parts Diagram

44" Side-Discharge Mower Deck

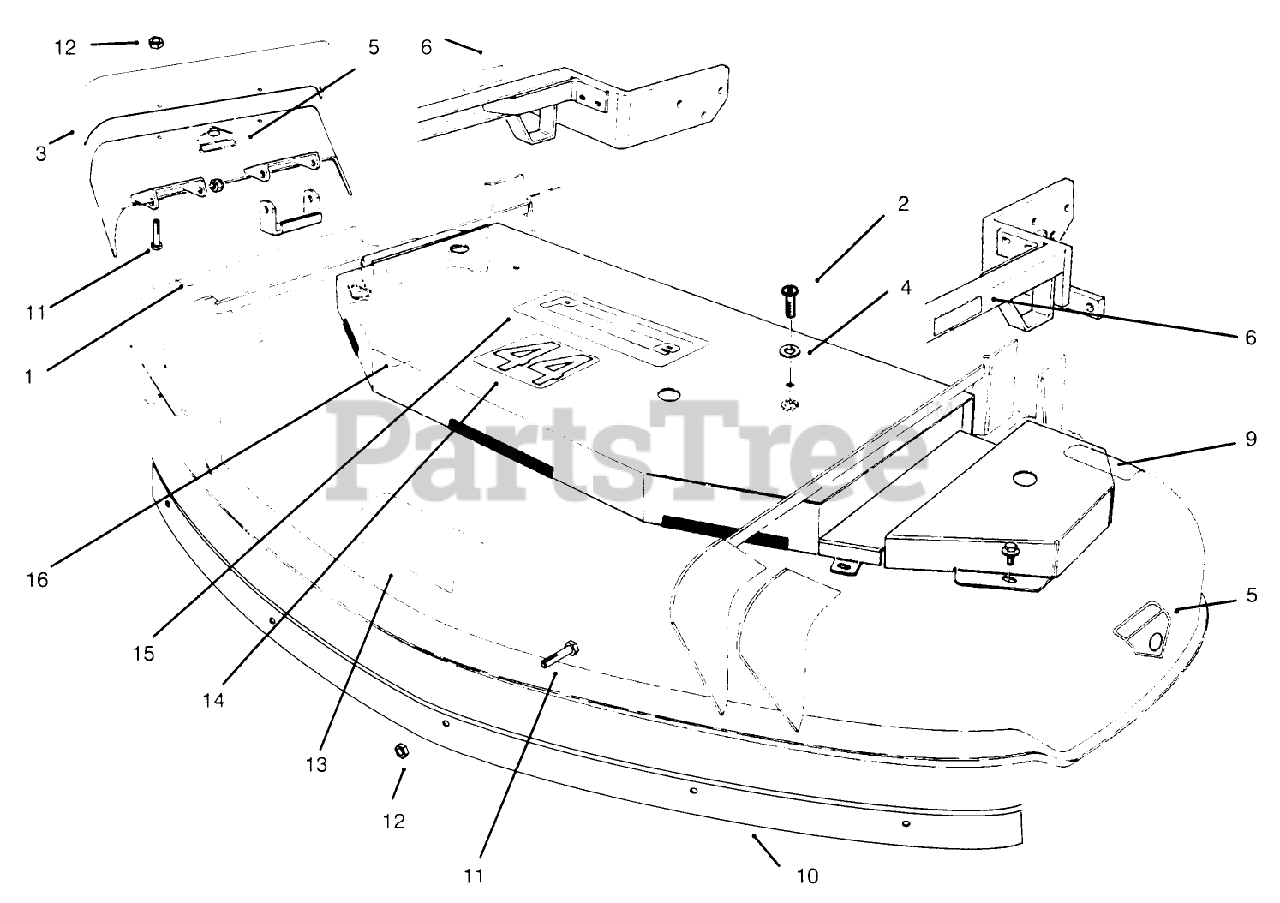

DECALS AND BAFFLES Parts Diagram

  • Title

1

Toro 93-7828

DECAL-WARNING, DEFLECTOR

$23.99

$

Usually ships in 3-6 days

0

2

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 3 left!

0

3

Toro 93-9484

Guard-Deflector
(Superseded to 93-9484-01)

$

$

Not available

4

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 93-7316

DECAL-DANGER

$9.49

$

In Stock, Qty 20+

0

6

Toro 93-7819

DECAL-HOC

$9.99

$

Usually ships in 3-6 days

0

9

Toro 93-7818

DECAL-TORQUE, BLADE BOLT

$11.99

$

In Stock, only 2 left!

0

10

Toro 93-9485

Baffle-Front
(Superseded to 93-9485-01)

$

$

Not available

11

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

12

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 7

0

13

Toro 93-7824

DECAL-DANGER

$24.99

$

Usually ships in 3-6 days

0

14

Toro 54-2760

DECAL-44 INCH

$69.99

$

Usually ships in 3-6 days

0

15

Toro 74-2080

DECAL-PROLINE

$

$

Not available

16

Toro 93-7273

DECAL-DANGER
(Superseded to 106-8120)

$10.99

$

Usually ships in 3-6 days

0
