30144 - Toro 44" Side-Discharge Mower Deck (SN: 800001 - 801221) (1988) CARRIER FRAME ASSEMBLY Parts Diagram

44" Side-Discharge Mower Deck

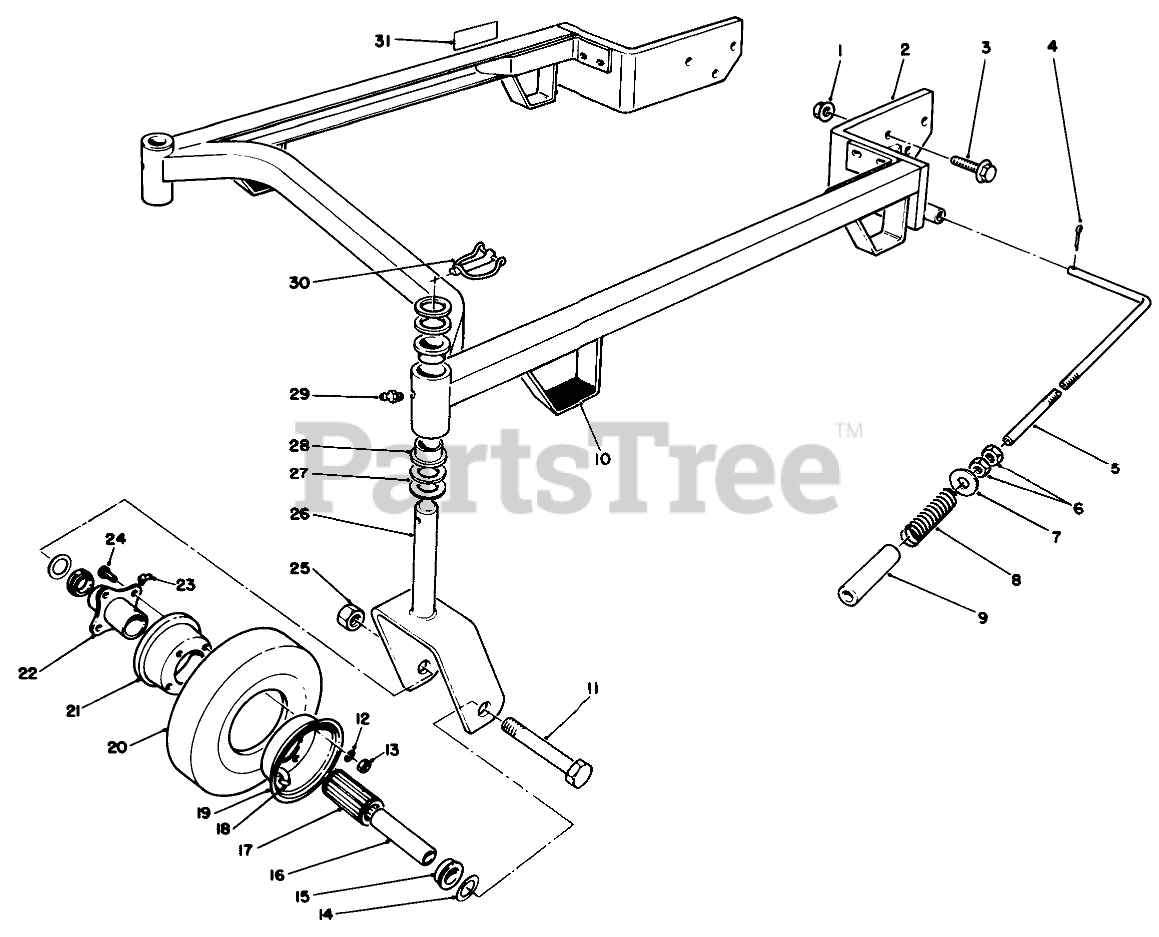

CARRIER FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0

2

Toro 54-2800

Suspension Frame (Incl. Ref. #28)

$

$

Not available

3

Toro 3234-6

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

4

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

5

Toro 51-3490

ADJUSTING SHAFT
(Superseded to 920037)

$

$

Not available

6

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

7

Toro 51-3500

WASHER

$2.99

$

Usually ships in 3-6 days

0

8

Toro 47-0960

SPRING-COMPRESSION

$

$

Not available

9

Toro 51-3480

SLEEVE-TUBE, 36 INCH

$

$

Not available

10

Toro 54-2700

Pad-Rubber
(Superseded to 74-0340)

$4.99

$

Usually ships in 3-6 days

0

11

Toro 328-9

SCREW-HH

$21.99

$

In Stock, only 1 left!

0

12

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

13

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

14

Toro 57-4250

SPACER-WHEEL

$10.99

$

Usually ships in 3-6 days

0

15

Toro 54-8840

RETAINER

$6.49

$

In Stock, Qty 6

0

16

Toro 54-8860

Bushing-Spanner
(Superseded to 27-1200)

$15.99

$

In Stock, only 3 left!

0

17

Toro 54-8850

BEARING-ROLLER

$29.99

$

In Stock, only 2 left!

0

18

Toro 54-8880

TUBE

$

$

Not available

19

Toro 54-8900

WHEEL HALF-MALE

$37.99

$

Usually ships in 3-6 days

0

20

Toro 54-8870

TIRE-8 Inch (4-PLY)

$78.99

$

Usually ships in 3-6 days

0

21

Toro 54-8910

WHEEL HALF-FEMALE

$37.99

$

Usually ships in 3-6 days

0

22

Toro 54-8830

HUB-CENTERED

$

$

Not available

23

Toro 302-10

FITTING-GREASE

$3.99

$

Usually ships in 3-6 days

0

24

Toro 54-8890

WHEEL BOLT

$0.99

$

Usually ships in 3-6 days

0

25

Toro 32153-6

NUT-LOCK

$4.99

$

Usually ships in 3-6 days

0

26

Toro 40-0370

FORK-Castor
(Superseded to 40-0370-01)

$117.99

$

In Stock, only 1 left!

0

27

Toro 3-6781

WASHER-THRUST

$3.99

$

In Stock, Qty 20+

0

28

Toro 28-9290

Bushing
(Superseded to 94-1291)

$11.99

$

In Stock, Qty 14

0

29

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

30

Toro 3290-384

PIN-LYNCH

$22.99

$

Usually ships in 3-6 days

0

31

Toro 26-7980

DECAL-CAUTION, DEFLECTOR

$

$

Not available

Toro 12-1519

Castor Wheel Assembly (Incl. Ref. #12, 13 & 15-24)(Qty 2 per carton)

$

$

Not available
