30144 - Toro 44" Side-Discharge Mower Deck (SN: 089000748 - 089999999) (1998) SPINDLE ASM, AND IDLERS Parts Diagram

44" Side-Discharge Mower Deck

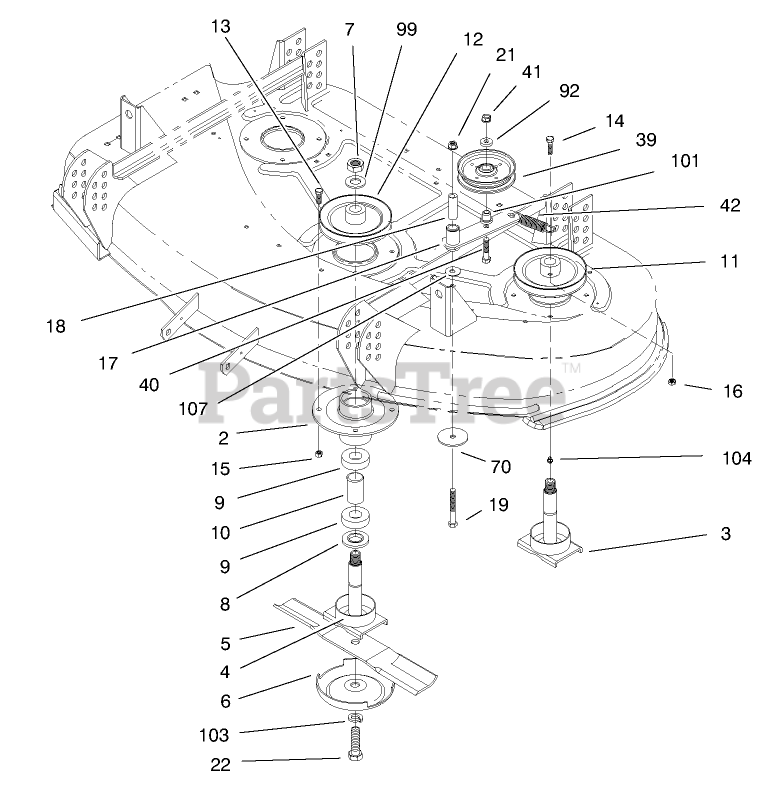

SPINDLE ASM, AND IDLERS Parts Diagram

  • Title

2

Toro 67-7590

HOUSING-SPINDLE

$285.99

$

Usually ships in 3-6 days

0

3

Toro 71-2780

SHAFT-SPINDLE
(Superseded to 71-2780-03)

$330.99

$

Usually ships in 3-6 days

0

4

Toro 71-2790

SHAFT-SPINDLE

$287.99

$

In Stock, only 1 left!

0

5

Toro 54-0010

Blade
(Superseded to 54-0010-03)

$29.99

$

In Stock, only 3 left!

0

6

Toro 67-7561

CUP-SCALP, ANTI

$42.99

$

In Stock, only 2 left!

0

7

Toro 32146-20

NUT-HEX

$3.49

$

In Stock, Qty 6

0

8

Toro 67-7570

SPACER-SPINDLE

$13.99

$

In Stock, only 2 left!

0

9

Toro 251-257

BEARING-BALL

$13.99

$

In Stock, Qty 12

0

10

Toro 67-7580

SPACER-BEARING

$

$

Not available

11

Toro 67-7690

PULLEY-DECK

$79.99

$

Usually ships in 3-6 days

0

12

Toro 67-7650

PULLEY-CENTER

$120.99

$

In Stock, only 1 left!

0

13

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

14

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

15

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

16

Toro 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

17

Toro 92-1657

IDLER ARM ASM

$108.99

$

Usually ships in 3-6 days

0

18

Toro 79-2760

SPACER

$8.99

$

Usually ships in 3-6 days

0

19

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 20+

0

21

Toro 32128-19

NUT-HF

$1.49

$

In Stock, Qty 20+

0

22

Toro 51-4060

SCREW-BLADE

$7.99

$

In Stock, Qty 20+

0

39

Toro 65-5940

PULLEY-IDLER

$36.99

$

In Stock, Qty 7

0

40

Toro 3211-8

SCREW-HH

$3.99

$

In Stock, Qty 9

0

41

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

42

Toro 54-2730

Spring-Extension

$15.99

$

In Stock, only 2 left!

0

70

Toro 20-9530

WASHER-END

$35.99

$

Usually ships in 3-6 days

0

92

Toro 7-0081

WASHER-FLAT

$1.49

$

In Stock, only 1 left!

0

99

Toro 7-4150

WASHER

$1.49

$

In Stock, Qty 7

0

101

Toro 65-5950

BUSHING-PULLEY

$5.49

$

In Stock, Qty 16

0

103

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

104

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, only 2 left!

0

107

Toro 52-2860

WASHER

$1.49

$

In Stock, Qty 15

0
