30144 - Toro 44" Side-Discharge Mower Deck (SN: 079000001 - 079999999) (1997) CUTTING UNIT ASSEMBLY Parts Diagram

44" Side-Discharge Mower Deck

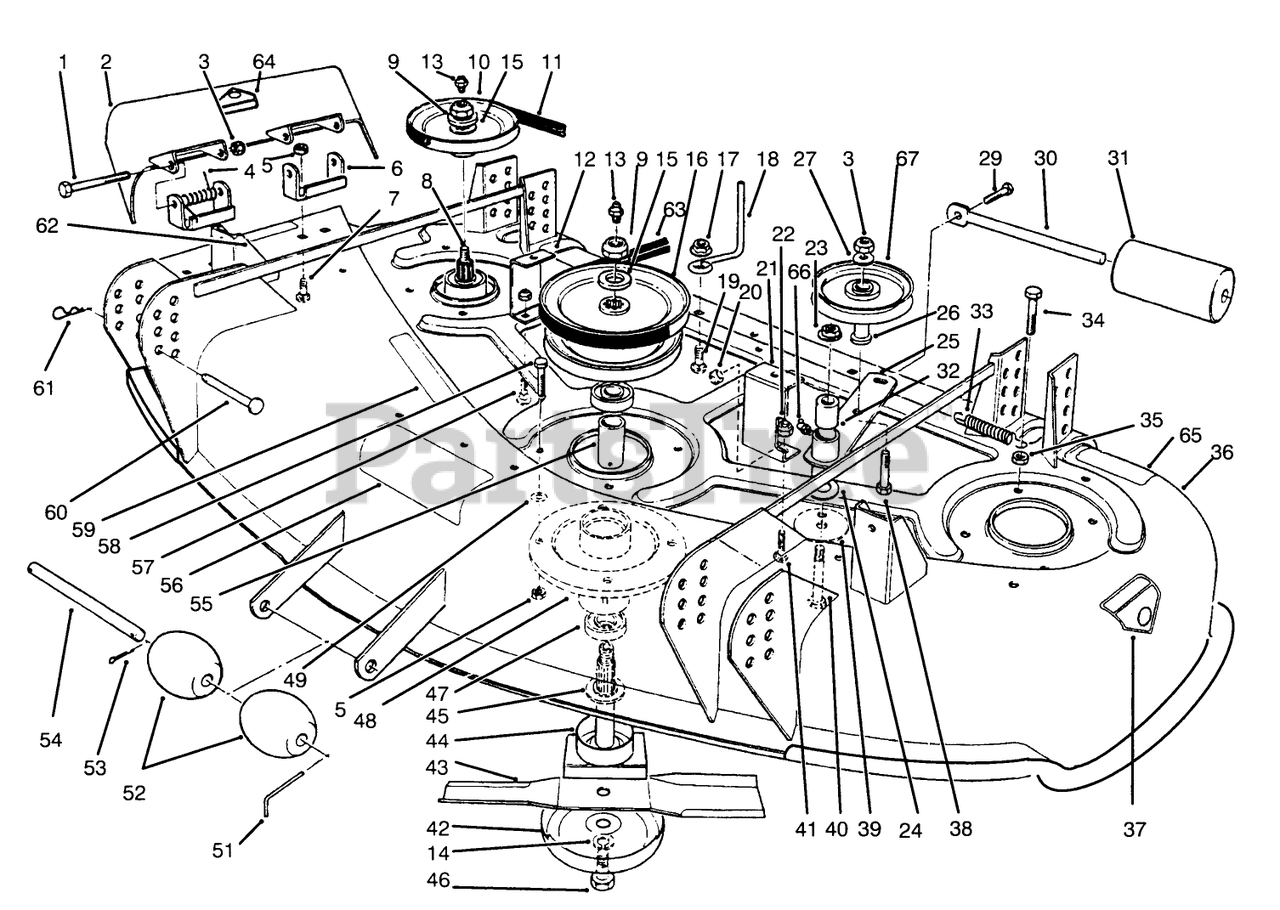

CUTTING UNIT ASSEMBLY Parts Diagram

  • Title

1

Toro 3211-15

SCREW-HH

$9.49

$

Usually ships in 3-6 days

0

2

Toro 13-3899

Deflector-Grass (Incl. Ref. #64)

$

$

Not available

3

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

4

Toro 40-6230

SPRING

$39.99

$

Usually ships in 3-6 days

0

5

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

6

Toro 55-8320

PIVOT BRKT WA R/B

$

$

Not available

7

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 5

0

8

Toro 71-2780

SHAFT-SPINDLE
(Superseded to 71-2780-03)

$333.99

$

Usually ships in 3-6 days

0

9

Toro 32146-20

NUT-HEX

$3.99

$

In Stock, only 4 left!

0

10

Toro 67-7690

PULLEY-DECK

$90.99

$

Usually ships in 3-6 days

0

11

Toro 27-1160

V-BELT

$63.99

$

In Stock, only 1 left!

0

12

Toro 54-3230

Bracket-Cover RH
(Superseded to 54-3230-03)

$

$

Not available

13

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, only 2 left!

0

14

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

15

Toro 7-4150

WASHER

$1.49

$

In Stock, Qty 20+

0

16

Toro 67-7650

PULLEY-CENTER

$137.99

$

In Stock, only 1 left!

0

17

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

18

Toro 52-4780

ROD-BELT

$14.99

$

In Stock, only 2 left!

0

19

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

20

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

21

Toro 54-3240

Bracket-Cover
(Superseded to 54-3240-03)

$

$

Not available

22

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

23

Toro 32128-19

NUT-HF

$1.49

$

In Stock, Qty 20+

0

24

Toro 52-2860

WASHER

$1.49

$

In Stock, Qty 13

0

25

Toro 92-1657

IDLER ARM ASM

$

$

Not available

26

Toro 65-5950

BUSHING-PULLEY

$5.49

$

In Stock, Qty 16

0

27

Toro 7-0081

WASHER-FLAT

$1.49

$

In Stock, only 1 left!

0

29

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

30

Toro 62-4480

ROD-ROLLER

$19.99

$

Usually ships in 3-6 days

0

31

Toro 36-1740

ROLLER-DECK

$45.99

$

In Stock, only 3 left!

0

32

Toro 79-2760

SPACER

$

$

Not available

33

Toro 54-2730

Spring-Extension

$22.99

$

In Stock, only 2 left!

0

34

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

35

Toro 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

36

Toro 94-5836

Deck Asm. (Incl. Ref. #37, 56, 62, 64, & 65)

$

$

Not available

37

Toro 43-8480

DECAL-DANGER

$6.99

$

In Stock, Qty 6

0

38

Toro 3211-8

SCREW-HH

$4.49

$

In Stock, Qty 9

0

39

Toro 20-9530

WASHER-END

$37.99

$

Usually ships in 3-6 days

0

40

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 14

0

41

Toro 3229-3

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0

42

Toro 67-7560

Anti-Scalp Cup
(Superseded to 67-7561)

$43.99

$

In Stock, only 2 left!

0

43

Toro 54-0010

Blade
(Superseded to 54-0010-03)

$33.99

$

In Stock, only 3 left!

0

44

Toro 71-2790

SHAFT-SPINDLE

$329.99

$

In Stock, only 1 left!

0

45

Toro 67-7570

SPACER-SPINDLE

$12.99

$

In Stock, only 2 left!

0

46

Toro 51-4060

SCREW-BLADE

$7.99

$

In Stock, Qty 14

0

47

Toro 251-257

BEARING-BALL

$15.99

$

In Stock, Qty 11

0

48

Toro 67-7590

HOUSING-SPINDLE

$331.99

$

Usually ships in 3-6 days

0

49

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

51

Toro 57-0690

PIN-SPECIAL

$4.99

$

In Stock, only 4 left!

0

52

Toro 29-4820

ROLLER

$18.99

$

In Stock, only 2 left!

0

53

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

54

Toro 40-6400

SHAFT-ROLLER

$39.99

$

In Stock, Qty 5

0

55

Toro 67-7580

SPACER-BEARING

$

$

Not available

56

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 1 left!

0

57

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

58

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

59

Toro 67-5360

DECAL-DANGER

$15.99

$

In Stock, only 1 left!

0

60

Toro 283-55

PIN-CLEVIS

$11.99

$

In Stock, Qty 5

0

61

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

62

Toro 66-6380

DECAL-DANGER

$8.99

$

Usually ships in 3-6 days

0

63

Toro 54-2750

V-BELT, DRIVE

$59.99

$

In Stock, only 2 left!

0

64

Toro 93-1122

DECAL-DANGER

$9.99

$

In Stock, Qty 12

0

65

Toro 68-8340

DECAL-TORQUE

$21.99

$

In Stock, only 1 left!

0

66

Toro 111420

Fitting-Grease
(Superseded to 302-11)

$1.99

$

In Stock, only 2 left!

0

67

Toro 64-5940

Pulley-Idler
(Superseded to 65-5940)

$43.99

$

In Stock, Qty 7

0

Toro 55-4940

Blade
(Superseded to 55-4940-03)

Note: Not illustrated

$38.99

$

In Stock, only 1 left!

0

Toro 67-7660

Spindle Housing Assembly (Incl. Ref. #8-10,13,15,45,47,48, & 55)

Note: Not illustrated

$928.99

$

Usually ships in 3-6 days

0

Toro 67-7600

Spindle Housing Assembly (Incl. Ref. #9,13,15,16,44,45,47,48, & 55)

Note: Not illustrated

$694.99

$

Usually ships in 3-6 days

0
