30144 - Toro 44" Side-Discharge Mower Deck (SN: 059000001 - 059999999) (1995) CARRIER FRAME ASSEMBLY Parts Diagram

44" Side-Discharge Mower Deck

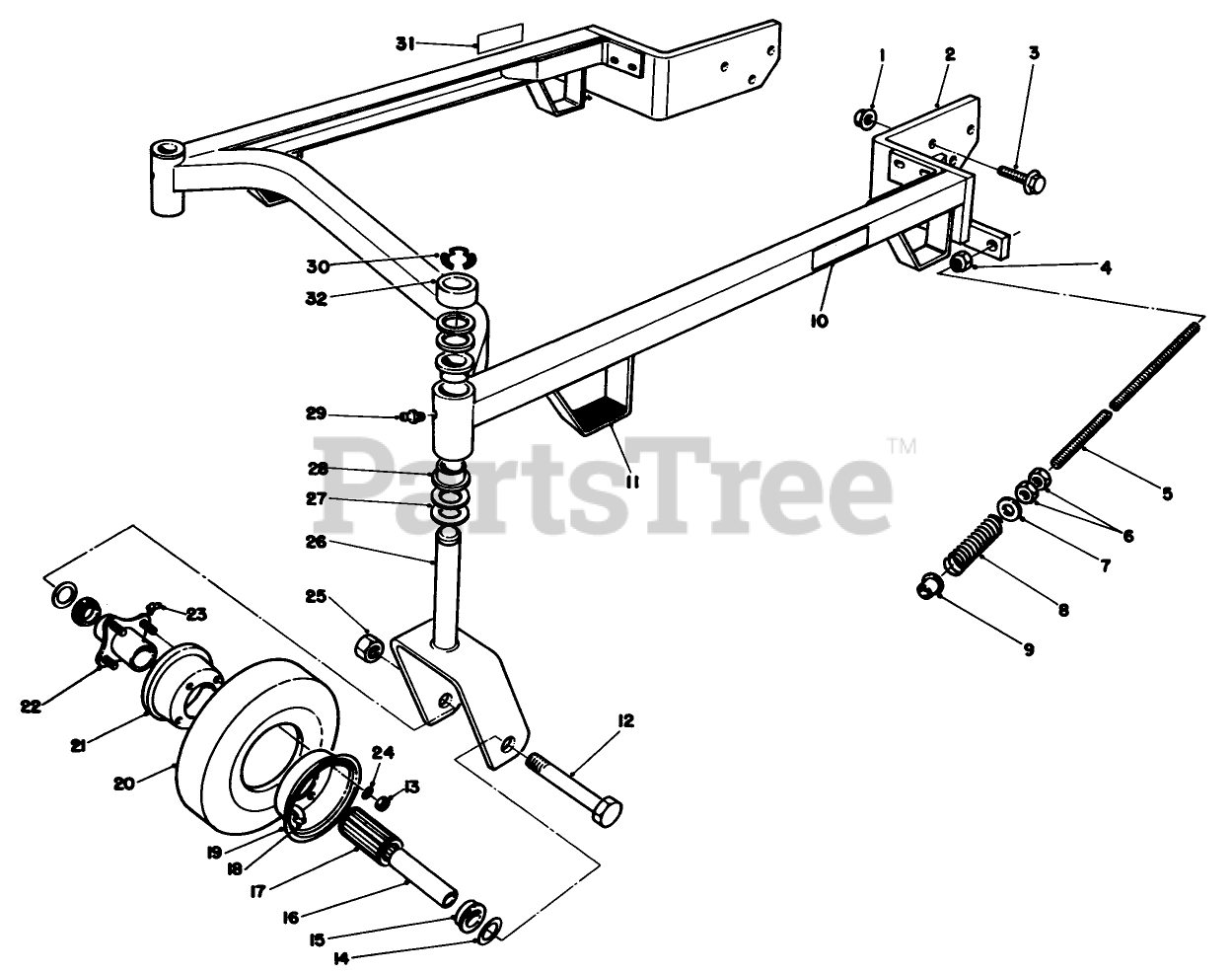

CARRIER FRAME ASSEMBLY Parts Diagram

  • Title
1

Toro 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0

2

Toro 74-0160

Frame-Suspension (Incl. Ref. #28)
(Superseded to 94-4175)

$2121.99

$

Usually ships in 3-6 days

0

3

Toro 3234-6

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

4

Toro 3296-45

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

5

Toro 74-0310

SHAFT-ADJUSTING

$64.99

$

In Stock, only 2 left!

0

6

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

7

Toro 41-8440

WASHER

$1.99

$

In Stock, only 4 left!

0

8

Toro 74-0290

SPRING

$27.99

$

Usually ships in 3-6 days

0

9

Toro 256-156

BUSHING-FLANGE

$13.99

$

In Stock, only 2 left!

0

10

Toro 68-8360

DECAL-HOC, LH

$28.99

$

Usually ships in 3-6 days

0

Toro 85-7450

DECAL-HOC, LH

Note: Not illustrated

$

$

Not available

11

Toro 74-0340

CUSHION-RUBBER

$4.99

$

Usually ships in 3-6 days

0

12

Toro 325-19

SCREW-HH

$8.49

$

In Stock, only 4 left!

0

13

Toro 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

14

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 62-5580

BEARING-OUTSIDE

$7.49

$

In Stock, Qty 12

0

16

Toro 68-8980

SPANNER-TIRE

$10.99

$

In Stock, Qty 12

0

17

Toro 62-5570

BEARING-ROLLER

$20.99

$

In Stock, only 2 left!

0

18

Toro 68-8950

TUBE-INNER (W/VALVE)

$29.99

$

Usually ships in 3-6 days

0

19

Toro 68-8920

FEMALE WHEEL HALF

$20.99

$

In Stock, only 1 left!

0

20

$64.99

$

In Stock, only 1 left!

0

21

Toro 68-8930

MALE WHEEL HALF

$21.99

$

In Stock, only 1 left!

0

22

Toro 68-8940

HUB-CENTER

$30.99

$

In Stock, only 2 left!

0

23

Toro 302-61

FITTING-GREASE

$11.99

$

In Stock, only 2 left!

0

24

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

25

Toro 32153-5

NUT-HEX

$1.99

$

In Stock, Qty 13

0

26

Toro 74-0251

Fork
(Superseded to 74-0251-01)

$

$

Not available

27

Toro 3-6781

WASHER-THRUST

$3.99

$

In Stock, Qty 20+

0

28

Toro 28-9290

Bushing
(Superseded to 94-1291)

$11.99

$

In Stock, Qty 14

0

29

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

30

Toro 32151-91

RING-RETAINING

$2.49

$

In Stock, Qty 5

0

31

Toro 74-0940

DECAL-HOC, RH

$

$

Not available

Toro 85-7460

DECAL-HOC, RH

Note: Not illustrated

$

$

Not available

32

Toro 93-1167

SPACER-CASTOR

$36.99

$

Usually ships in 3-6 days

0

Toro 13-3869

Assembly-Castor Wheel
(Superseded to 68-8970)

Note: Not illustrated

$127.99

$

Usually ships in 3-6 days

0
