30144 - Toro 44" Side-Discharge Mower Deck (SN: 005000001 - 005999999) (1985) ENGINE ASSEMBLY Parts Diagram

44" Side-Discharge Mower Deck

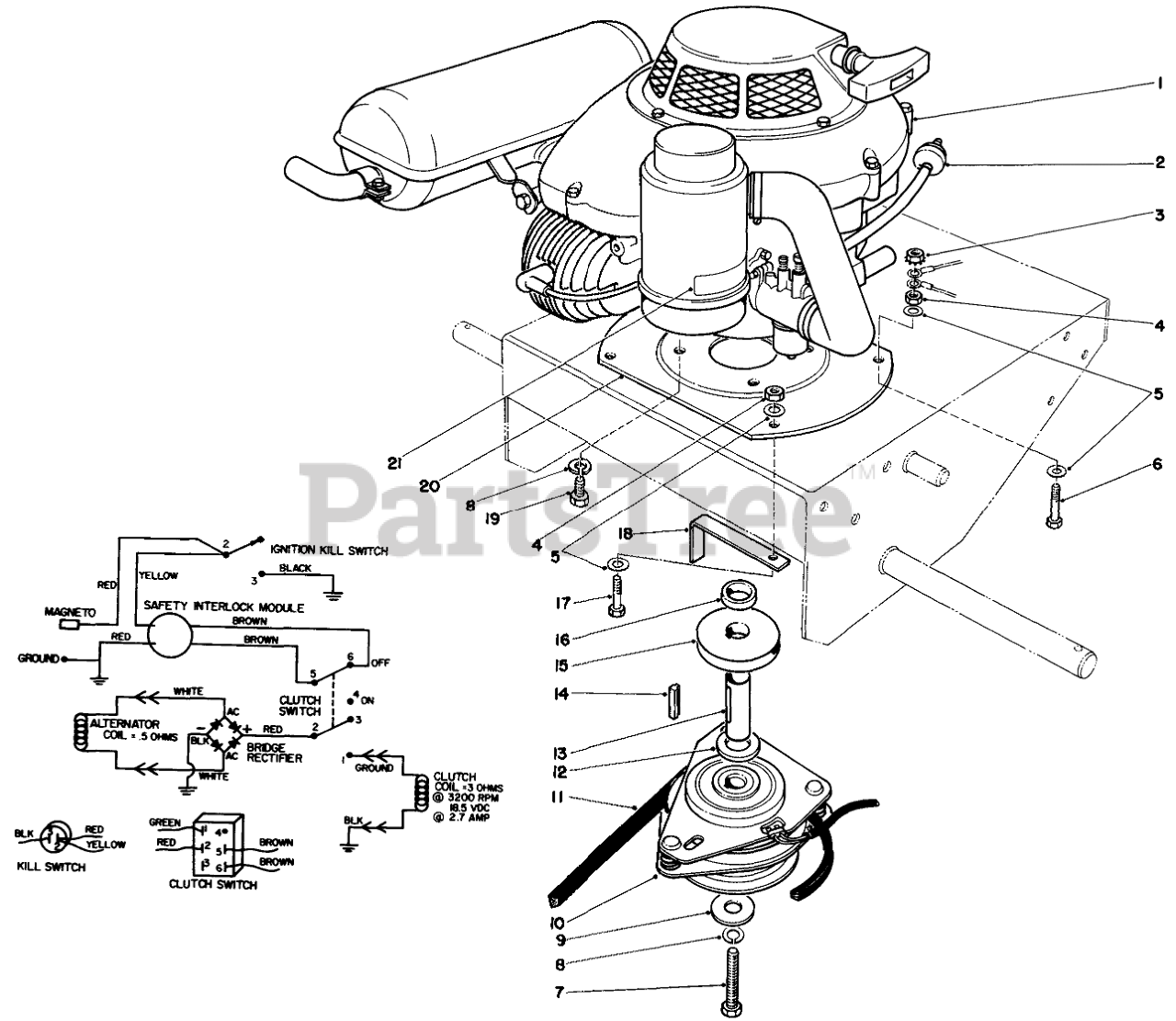

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 54-3130

Engine Assembly
(Superseded to 71-3021)

$

$

Not available

2

Toro 42-5240

Nut
(Superseded to 56-6360)

$6.49

$

In Stock, Qty 20+

0

3

Toro 32149-1

NUT-KEPS

$6.49

$

In Stock, Qty 9

0

4

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

5

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

6

Toro 322-16

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

7

Toro 54-3260

CAPSCREW

$58.99

$

Usually ships in 3-6 days

0

8

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

9

Toro 44-8160

WASHER-CLUTCH

$

$

Not available

10

Toro 54-3200

CLUTCH/BRAKE
(Superseded to 105-2635)

$576.99

$

In Stock, only 1 left!

0

11

Toro 54-2750

V-BELT, DRIVE

$59.99

$

In Stock, only 2 left!

0

12

Toro 51-3280

SPACER-LOWER

$

$

Not available

13

Toro 54-2920

Adapter-Crankshaft
(Superseded to 71-3170)

$

$

Not available

14

Toro 54-2930

CRANKSHAFT KEY

$27.99

$

Usually ships in 3-6 days

0

15

Toro 51-4460

Pulley-Drive
(Superseded to 100-3251)

$

$

Not available

16

Toro 54-2940

UPPER SPACER

$

$

Not available

17

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Toro 51-4540

Retainer-Clutch
(Superseded to 51-4540-03)

$21.99

$

In Stock, only 3 left!

0

19

Toro 54-3250

CAPSCREW

$

$

Not available

20

Toro 54-2910

ENGINE PLATE

$

$

Not available

21

Toro 55-7450

DECAL

$

$

Not available
