30144 - Toro 44" Side-Discharge Mower Deck (SN: 005000001 - 005999999) (1985) 52" CARRIER FRAME MODEL NO. 30152 Parts Diagram

44" Side-Discharge Mower Deck

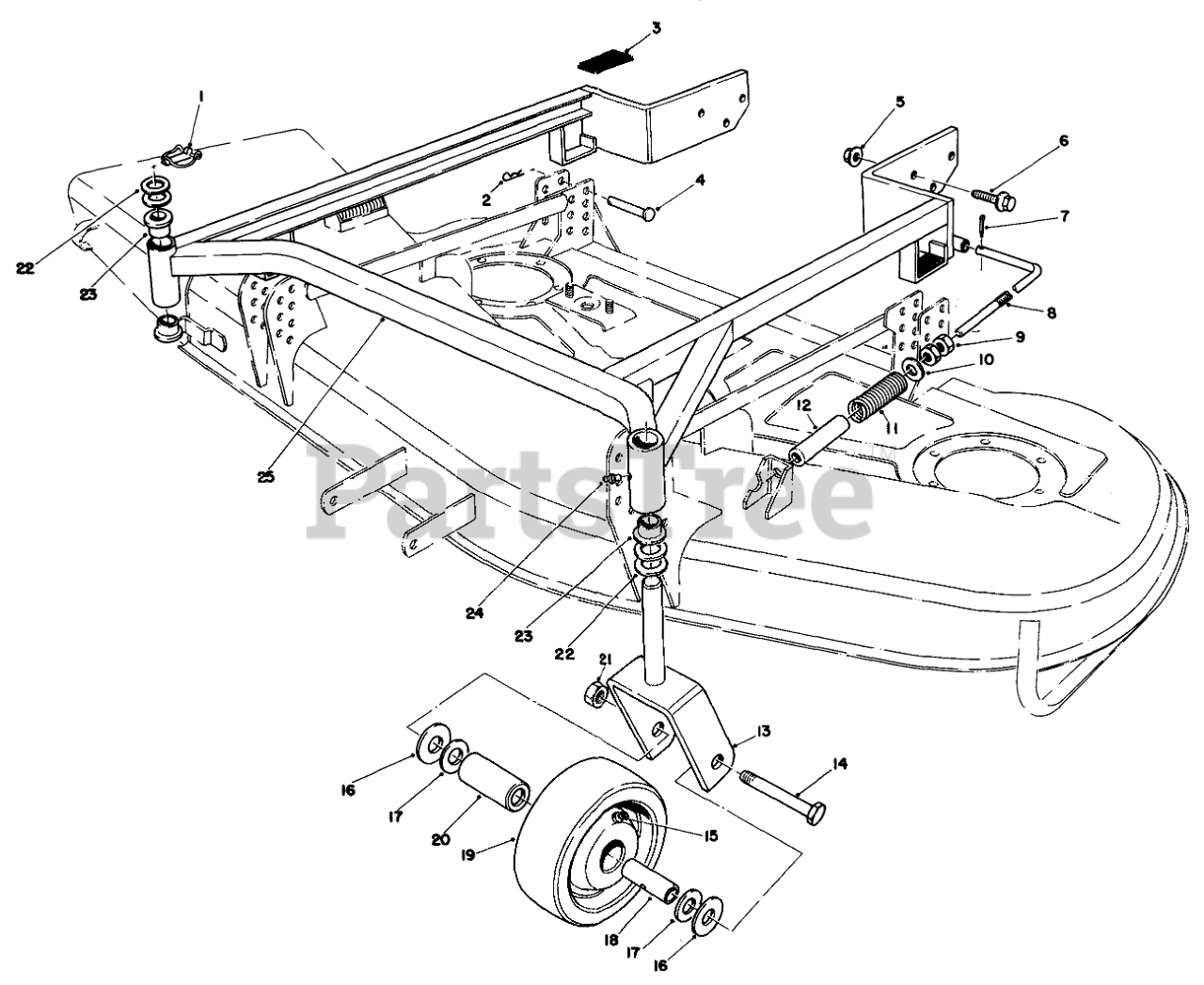

52" CARRIER FRAME MODEL NO. 30152 Parts Diagram

  • Title

1

Toro 3290-384

PIN-LYNCH

$22.99

$

Usually ships in 3-6 days

0

2

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

3

Toro 51-3720

Cushion-Rubber
(Superseded to 74-0350)

$53.99

$

In Stock, Qty 5

0

4

Toro 283-55

PIN-CLEVIS

$11.99

$

In Stock, Qty 5

0

5

Toro 32128-27

NUT-LOCK, FLANGE

$4.99

$

Usually ships in 3-6 days

0

6

Toro 3234-6

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

7

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

8

Toro 51-3490

ADJUSTING SHAFT
(Superseded to 920037)

$

$

Not available

9

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

10

Toro 51-3500

WASHER

$2.99

$

Usually ships in 3-6 days

0

11

Toro 47-0960

SPRING-COMPRESSION

$

$

Not available

12

Toro 51-3480

SLEEVE-TUBE, 36 INCH

$

$

Not available

13

Toro 40-0370

FORK-Castor
(Superseded to 40-0370-01)

$117.99

$

In Stock, only 1 left!

0

14

Toro 323-38

SCREW-HH

$11.99

$

In Stock, only 1 left!

0

15

Toro 302-55

FITTING-GREASE

$3.49

$

Usually ships in 3-6 days

0

16

Toro 27-1170

THRUST WASHER

$4.99

$

Usually ships in 3-6 days

0

17

Toro 27-1180

BEARING RETAINER

$

$

Not available

18

Toro 27-1200

SPANNER BUSHING

$15.99

$

In Stock, only 3 left!

0

19

Toro 27-1190

WHEEL

$91.99

$

In Stock, only 2 left!

0

20

Toro 27-1210

ROLLER BEARING

$

$

Not available

21

Toro 32146-20

NUT-HEX

$3.99

$

In Stock, only 4 left!

0

22

Toro 3-6781

WASHER-THRUST

$3.49

$

In Stock, Qty 7

0

23

Toro 28-9290

Bushing
(Superseded to 94-1291)

$11.99

$

In Stock, Qty 10

0

24

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

25

Toro 51-3970

Frame-Carrier (Incl. Ref. #23)
(Superseded to 94-4185)

$

$

Not available
