30142 - Toro 36" Recycler Kit for Fixed Deck Mid-Size Mowers RECYCLER ASSEMBLY Parts Diagram

36" Recycler Kit for Fixed Deck Mid-Size Mowers

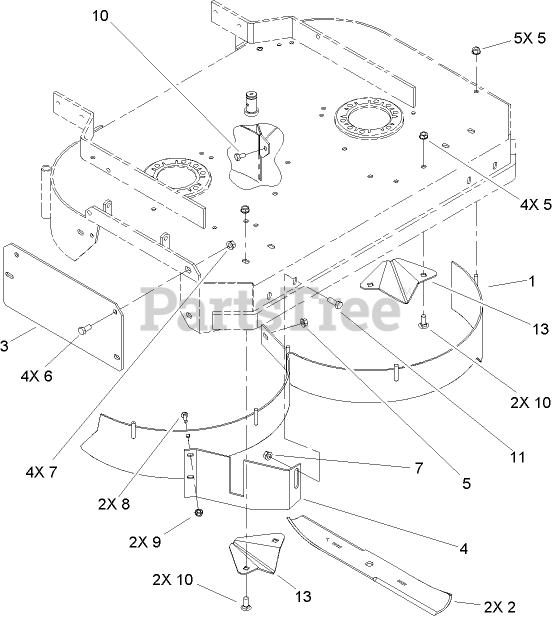

RECYCLER ASSEMBLY Parts Diagram

  • Title
1

Toro 1-302226-03

BAFFLE-MULCH

$

$

Not available

2

Toro 103-2518

BLADE-MULCH

$31.99

$

In Stock, Qty 20+

0

3

Toro 1-303494-01

PLATE-COVER

$71.99

$

In Stock, only 3 left!

0

4

Toro 1-303571-03

PLATE-MULCH, FRONT

$

$

Not available

5

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

6

Toro 323-4

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

7

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

8

Toro 1-807512

BOLT-CARR

$1.49

$

In Stock, Qty 10

0

9

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

10

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 17

0

11

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

13

Toro 1-323655-03

KICKER-DECK

$35.99

$

In Stock, only 1 left!

0
