30140 - Toro 48" ProLine Walk-Behind Mower, T-Bar, Gear Drive, 15hp (SN: 250000001 - 250999999) (2005) IDLER PULLEY ASSEMBLY Parts Diagram

48" ProLine Walk-Behind Mower, T-Bar, Gear Drive, 15hp

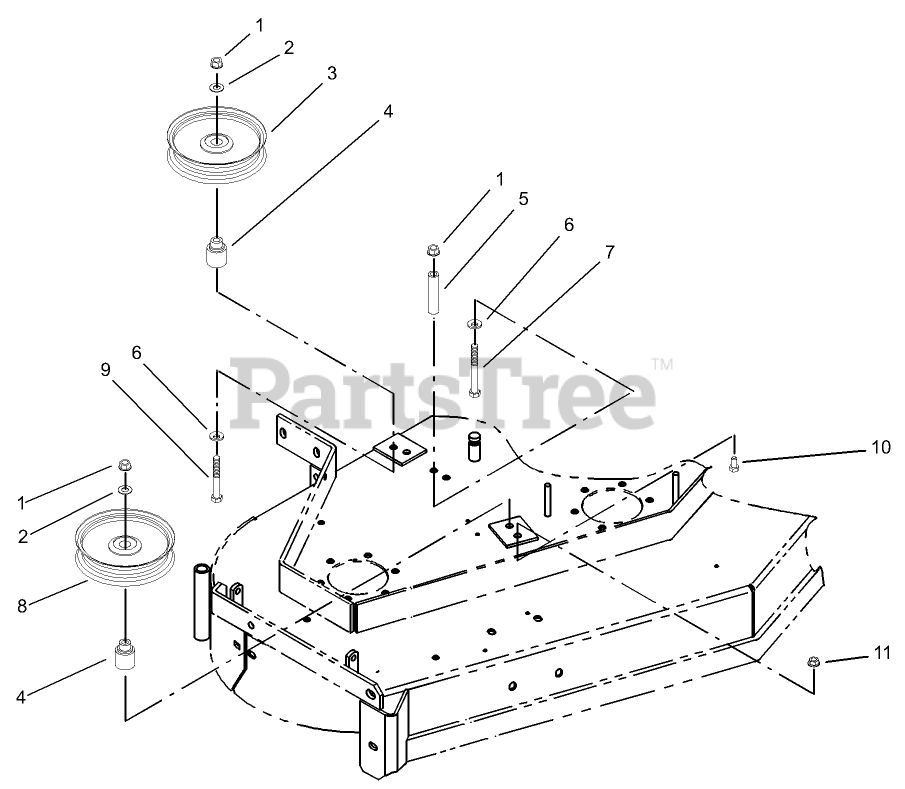

IDLER PULLEY ASSEMBLY Parts Diagram

  • Title

1

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

2

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Toro 1-403186

IDLER-PULLEY, FLAT
(Superseded to 136-5405)

$48.99

$

In Stock, Qty 6

0

4

Toro 1-403184

BUSHING-IDLER
(Superseded to 1-413113)

$5.99

$

In Stock, Qty 20+

0

5

Toro 1-403188

SPACER

$14.99

$

Usually ships in 3-6 days

0

6

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

7

Toro 323-20

SCREW-HH

$3.99

$

In Stock, Qty 12

0

8

Toro 1-613098

PULLEY-IDLER

$47.99

$

In Stock, Qty 20+

0

9

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 20+

0

10

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 17

0

11

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0
