30139 - Toro 37" Recycler Mower Deck (SN: 069000001 - 069999999) (1996) CARRIER FRAME ASSEMBLY Parts Diagram

37" Recycler Mower Deck

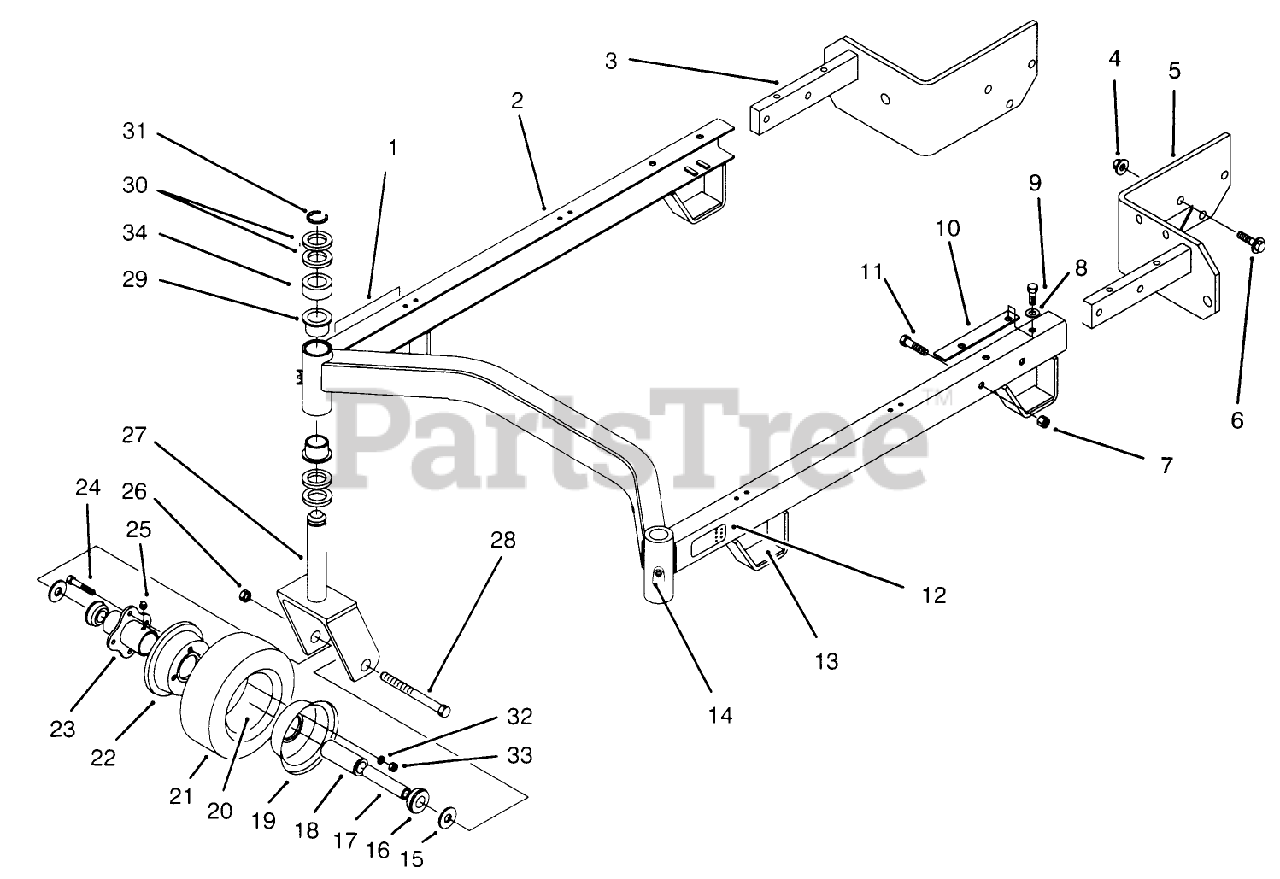

CARRIER FRAME ASSEMBLY Parts Diagram

  • Title
1

Toro Ref

Spacer

$

$

Currently unavailable

2

Toro 94-4166

WA - SUSPENSION

$

$

Not available

3

Toro 86-7110

Bracket RH
(Superseded to 92-8924-01)

$

$

Not available

4

Toro 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0

5

Toro 86-7100

Bracket-LH
(Superseded to 92-8923)

$491.99

$

Usually ships in 3-6 days

0

6

Toro 3234-6

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

Toro 3234-32

SCREW-HHF

Note: Not Illustrated.

$10.99

$

In Stock, only 1 left!

0

7

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

8

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

9

Toro 3235-21

SCREW W/PATCH

$

$

Not available

10

Toro 62-6980

SHIM-CARRIER

$

$

Not available

11

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro Ref

Spacer

$

$

Currently unavailable

13

Toro 74-0340

CUSHION-RUBBER

$4.99

$

Usually ships in 3-6 days

0

14

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

15

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 62-5580

BEARING-OUTSIDE

$7.49

$

In Stock, only 2 left!

0

17

Toro 68-8980

SPANNER-TIRE

$10.99

$

In Stock, Qty 12

0

18

Toro 62-5570

BEARING-ROLLER

$20.99

$

In Stock, only 2 left!

0

19

Toro 68-8930

MALE WHEEL HALF

$21.99

$

In Stock, only 1 left!

0

20

Toro 68-8950

TUBE-INNER (W/VALVE)

$29.99

$

Usually ships in 3-6 days

0

21

$64.99

$

In Stock, only 1 left!

0

22

Toro 68-8920

FEMALE WHEEL HALF

$20.99

$

In Stock, only 1 left!

0

23

Toro 68-8940

HUB-CENTER

$30.99

$

In Stock, only 2 left!

0

24

Toro 54-8890

WHEEL BOLT

$0.99

$

Usually ships in 3-6 days

0

25

Toro 302-61

FITTING-GREASE

$11.99

$

In Stock, only 2 left!

0

26

Toro 32153-5

NUT-HEX

$1.99

$

In Stock, Qty 13

0

27

Toro 74-0251

Fork
(Superseded to 74-0251-01)

$

$

Not available

28

Toro 325-19

SCREW-HH

$8.49

$

In Stock, only 4 left!

0

29

Toro 94-1291

BUSHING

$11.99

$

In Stock, Qty 10

0

30

Toro 3-6781

WASHER-THRUST

$3.49

$

In Stock, Qty 7

0

31

Toro 32151-91

RING-RETAINING

$2.49

$

In Stock, Qty 5

0

32

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

33

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

34

Toro 93-1167

SPACER-CASTOR

$36.99

$

Usually ships in 3-6 days

0

Toro 13-3869

Caster Wheel Assembly (Incl Ref. #16, 18-25, 32 & 33)
(Superseded to 68-8970)

Note: Not Illustrated.

$127.99

$

Usually ships in 3-6 days

0
