30138 - Toro 92cm Side-Discharge Mower Deck (SN: 240000001 - 240999999) (2004) SPINDLE HOUSING ASSEMBLY NO. 54-7781 Parts Diagram

92cm Side-Discharge Mower Deck

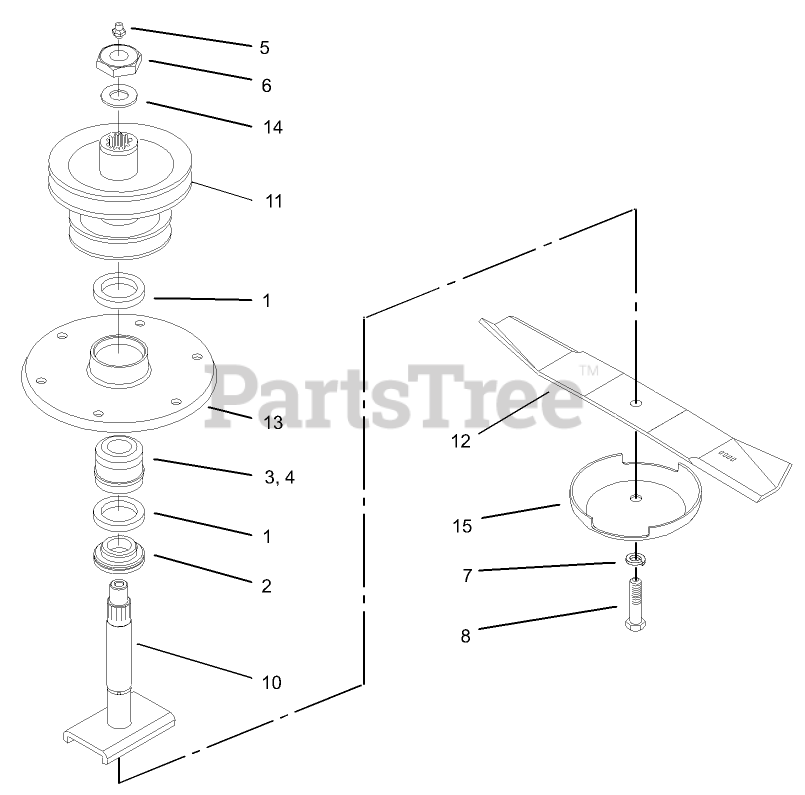

SPINDLE HOUSING ASSEMBLY NO. 54-7781 Parts Diagram

  • Title

1

Toro 253-139

SEAL-OIL

$13.99

$

In Stock, Qty 5

0

2

Toro 27-0950

SPACER

$31.99

$

In Stock, only 1 left!

0

3

Toro 27-0960

BEARING ASM

$69.99

$

In Stock, only 3 left!

0

4

Toro 27-5970

SPACER-SET, MATCHED

$71.99

$

In Stock, only 1 left!

0

5

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, only 2 left!

0

6

Toro 32146-20

NUT-HEX

$3.99

$

In Stock, only 4 left!

0

7

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

8

Toro 44-2200

SCREW-BLADE

$4.99

$

In Stock, Qty 6

0

10

Toro 106-0800

Spindle ASM
(Superseded to 105-1686)

$206.99

$

In Stock, only 1 left!

0

11

Toro 55-7610

PULLEY AND HUB ASM

$213.99

$

Usually ships in 3-6 days

0

12

Toro 56-2390-03

BLADE-SAIL, EXTRA HIGH

$37.99

$

In Stock, Qty 13

0

13

Toro 61-4160

HOUSING-SPINDLE

$138.99

$

In Stock, only 1 left!

0

14

Toro 106-0776

Washer-Pinion

$4.99

$

Usually ships in 3-6 days

0

15

Toro 72-9361

CUP-SCALP, ANTI

$42.99

$

Usually ships in 3-6 days

0
