30138 - Toro 92cm Side-Discharge Mower Deck (SN: 099000001 - 099999999) (1999) FRAME, BELT AND WHEEL ASSEMBLY Parts Diagram

92cm Side-Discharge Mower Deck

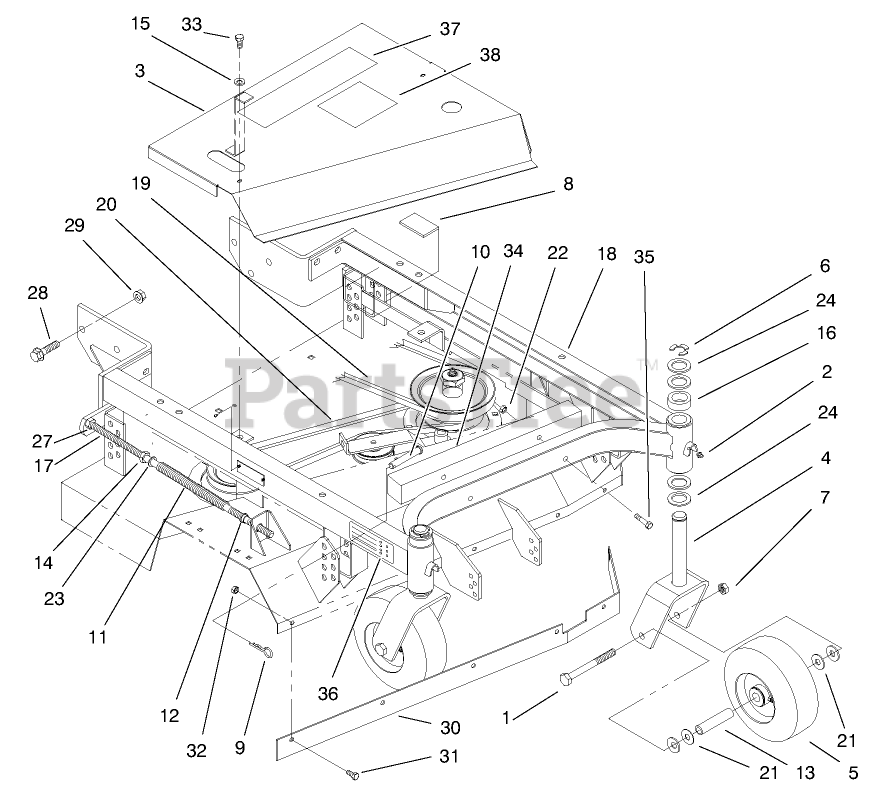

FRAME, BELT AND WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 325-19

SCREW-HH

$8.49

$

In Stock, only 4 left!

0

2

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

3

Toro 82-5460-01

COVER

$

$

Not available

4

Toro 98-2857-01

CASTER FORK

$

$

Not available

5

Toro 98-2859

CASTOR WHEEL ASM

$143.99

$

Usually ships in 3-6 days

0

5:1

Toro 232-27

STEM-VALVE
(Superseded to 5108)

Note: Not illustrated

$6.99

$

In Stock, Qty 17

0

5:2

Toro 302-11

FITTING-LUBE, 45 DEG

Note: Not illustrated

$1.49

$

In Stock, only 2 left!

0

5:3

Toro 62-5570

BEARING-ROLLER

Note: Not illustrated

$20.99

$

In Stock, only 2 left!

0

5:4

Toro 62-5580

BEARING-OUTSIDE

Note: Not illustrated

$6.99

$

In Stock, only 2 left!

0

5:5

Toro 98-2877

TIRE-TUBELESS

Note: Not illustrated

$

$

Not available

6

Toro 32151-91

RING-RETAINING

$2.49

$

In Stock, Qty 5

0

7

Toro 32153-5

NUT-HEX

$1.99

$

In Stock, Qty 13

0

8

Toro 74-0350

CUSHION-RUBBER

$7.99

$

In Stock, Qty 5

0

9

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

10

Toro 283-55

PIN-CLEVIS

$11.99

$

In Stock, Qty 5

0

11

Toro 74-0290

SPRING

$23.99

$

Usually ships in 3-6 days

0

12

Toro 256-156

BUSHING-FLANGE

$13.99

$

In Stock, only 2 left!

0

13

Toro 68-8980

SPANNER-TIRE

$8.99

$

In Stock, Qty 12

0

14

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

15

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 93-1167-01

Spacer-Castor
(Superseded to 93-1167)

$36.99

$

Usually ships in 3-6 days

0

17

Toro 74-0310

SHAFT-ADJUSTING

$56.99

$

In Stock, only 2 left!

0

18

Toro 95-2821

CARRIER FRAME

$2364.99

$

Usually ships in 3-6 days

0

19

Toro 55-7660

V-BELT

$56.99

$

In Stock, only 1 left!

0

20

Toro 51-3530

V-BELT-DRIVE, DECK

$33.99

$

In Stock, only 1 left!

0

21

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 16

0

23

Toro 41-8440

WASHER

$1.99

$

In Stock, only 4 left!

0

24

Toro 3-6781

WASHER-THRUST

$3.49

$

In Stock, Qty 7

0

27

Toro 3296-45

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

28

Toro 3234-6

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

29

Toro 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0

30

Toro 93-9479-01

BAFFLE-FRONT

$134.99

$

Usually ships in 3-6 days

0

31

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

32

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 7

0

33

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 3 left!

0

34

Toro 80-3340-01

Front Weight
(Superseded to 106-0820)

$314.99

$

Usually ships in 3-6 days

0

35

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$1.99

$

In Stock, Qty 14

0

36

Toro 93-7819

DECAL-HOC

$9.99

$

Usually ships in 3-6 days

0

37

Toro 74-2080

DECAL-PROLINE

$

$

Not available

38

Toro 99-4595

Decal-92cm

$

$

Currently unavailable
