30138 - Toro 36" Side-Discharge Mower Deck (SN: 079000001 - 079999999) (1997) CARRIER FRAME ASSEMBLY Parts Diagram

36" Side-Discharge Mower Deck

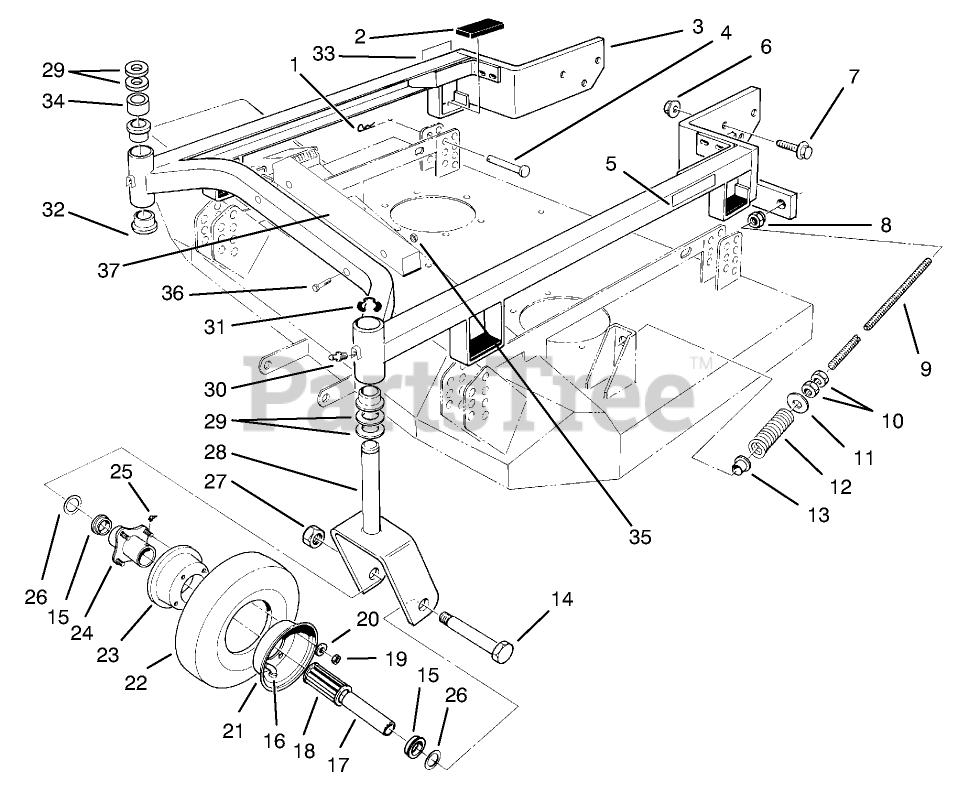

CARRIER FRAME ASSEMBLY Parts Diagram

  • Title
1

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

2

Toro 74-0350

CUSHION-RUBBER

$7.99

$

In Stock, Qty 5

0

3

Toro 95-2821

Frame-Carrier (Incl. Ref. #32)

$2364.99

$

Usually ships in 3-6 days

0

4

Toro 283-55

PIN-CLEVIS

$11.99

$

In Stock, Qty 5

0

5

Decal (Ref)

$

$

Not available

6

Toro 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0

7

Toro 3234-6

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

8

Toro 3296-45

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

9

Toro 74-0310

SHAFT-ADJUSTING

$56.99

$

In Stock, only 2 left!

0

10

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

11

Toro 41-8440

WASHER

$1.99

$

In Stock, only 4 left!

0

12

Toro 74-0290

SPRING

$23.99

$

Usually ships in 3-6 days

0

13

Toro 256-156

BUSHING-FLANGE

$13.99

$

In Stock, only 2 left!

0

14

Toro 325-19

SCREW-HH

$8.49

$

In Stock, only 4 left!

0

15

Toro 62-5580

BEARING-OUTSIDE

$6.99

$

In Stock, only 2 left!

0

16

Toro 68-8950

TUBE-INNER (W/VALVE)

$29.99

$

Usually ships in 3-6 days

0

17

Toro 68-8980

SPANNER-TIRE

$8.99

$

In Stock, Qty 12

0

18

Toro 62-5570

BEARING-ROLLER

$20.99

$

In Stock, only 2 left!

0

19

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

20

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

21

Toro 68-8930

MALE WHEEL HALF

$21.99

$

In Stock, only 1 left!

0

22

$64.99

$

In Stock, only 1 left!

0

23

Toro 68-8920

FEMALE WHEEL HALF

$20.99

$

In Stock, only 1 left!

0

24

Toro 68-8940

HUB-CENTER

$30.99

$

In Stock, only 2 left!

0

25

Toro 302-61

FITTING-GREASE

$11.99

$

In Stock, only 2 left!

0

26

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

27

Toro 32153-5

NUT-HEX

$1.99

$

In Stock, Qty 13

0

28

Toro 74-0251

Fork
(Superseded to 74-0251-01)

$

$

Not available

29

Toro 3-6781

WASHER-THRUST

$3.49

$

In Stock, Qty 7

0

30

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

31

Toro 32151-91

RING-RETAINING

$2.49

$

In Stock, Qty 5

0

32

Toro 94-1291

BUSHING

$10.99

$

In Stock, Qty 11

0

33

Decal (Ref)

$

$

Not available

34

Toro 93-1167

SPACER-CASTOR

$36.99

$

Usually ships in 3-6 days

0

35

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

36

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

37

Toro 80-3340

Weight
(Superseded to 106-0820)

$314.99

$

Usually ships in 3-6 days

0

Toro 68-8970

TIRE AND BEARING ASM

Note: Not illustrated

$127.99

$

Usually ships in 3-6 days

0
