30138 R - Troy-Bilt 38" Snow Thrower Attachment (SN: 0100101 - 0199999) 38" SNOWTHROWER ATTACHMENT Parts Diagram

38" Snow Thrower Attachment

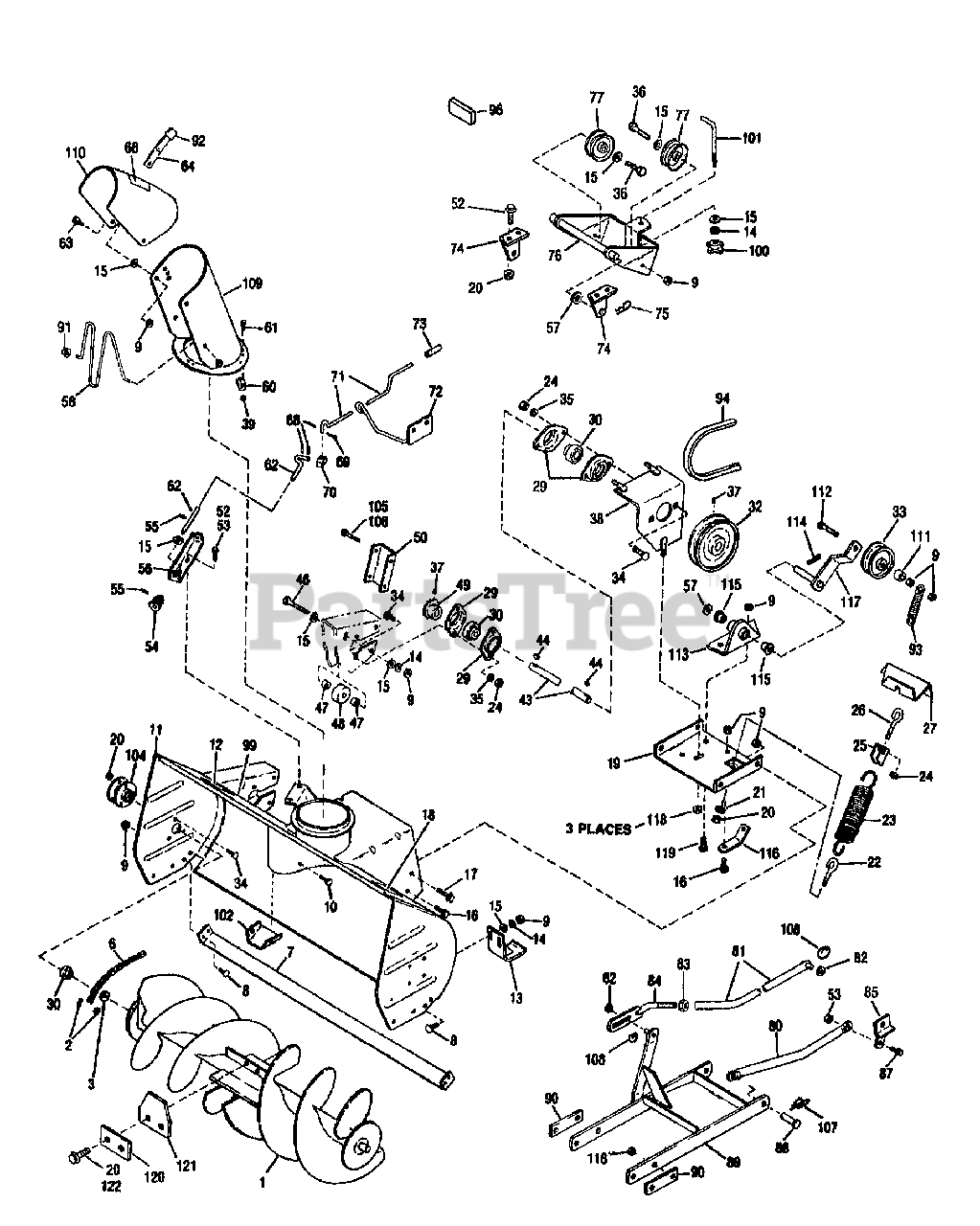

38" SNOWTHROWER ATTACHMENT Parts Diagram

  • Title

1

Troy-Bilt 1750697GAR

ASSM-ROTOR 38"

$

$

Currently unavailable

2

MTD 1185026

LINK-CONNECTOR

$

$

Not available

3

MTD 1700821

WASHER-THRUST 1.1X.76X.05

$

$

Not available

6

MTD 1745341

CHAIN-DRIVE

$

$

Not available

7

MTD 1722596GAR

SCRAPER

$

$

Not available

8

Troy-Bilt 1186128

SCR-CARR 3/8-16X1.00
(Superseded to 710-3168)

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 1733398

NUT-LOCK 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

10

MTD 1185798

SCR-HH 3/8-16X.50

$

$

Not available

11

MTD 1757481

ASSM-ROTOR HOUSING

$

$

Not available

12

MTD 1757254

DECAL-LOGO

$

$

Not available

13

MTD 1715754GAR

SHOE-SKID

$

$

Not available

14

Troy-Bilt 1100243

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 1107383

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

16

MTD 1186345

SCR

$

$

Not available

17

MTD 1186348

SCR-HFLK 3/8-16X1.25 ZP

$

$

Not available

18

MTD 1750691

DECAL-WARNING

$

$

Not available

19

Troy-Bilt 1754601GAR

ASSM-PLATE

$

$

Currently unavailable

20

Troy-Bilt 1732499

NUT-TOP/LK 5/16-18 ZP
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 1107382

WASHER-FLAT 5/16 SAE
(Superseded to 936-0275)

$

$

Not available

22

MTD 1725199

BOLT

$

$

Not available

23

Troy-Bilt 1748480STB

SPRING-EXTENSION

$

$

Currently unavailable

24

Troy-Bilt 1186230

NUT-HEX 5/16-18 ZP
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

25

Troy-Bilt 1730596GAR

BRKT-SPRING

$

$

Currently unavailable

26

Troy-Bilt 1744929

BOLT-EYE

$

$

Currently unavailable

27

Troy-Bilt 1748483STB

BRKT-ANCHOR SPRING

$

$

Currently unavailable

29

MTD 1185838

BEARING-FLANGE

$

$

Not available

30

MTD 1741640

BEARING-BALL

$

$

Not available

32

MTD 1748307

SHEAVE-DRIVE

$

$

Not available

33

Troy-Bilt 1749764

PULLEY

$

$

Not available

34

Troy-Bilt 1186098

SCR-CARR 5/16-18X.75 G2 ZP

$

$

Not available

35

Troy-Bilt 1100242

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

36

Troy-Bilt 1100086

SCR-HH 3/8-16X1.75 G5 ZP
(Superseded to 710-0347)

$5.49

$

In Stock, Qty 20+

0

37

MTD 1182554

SCR-SET

$

$

Not available

38

Troy-Bilt 1748499GAR

ASSM-BRACKET

$

$

Currently unavailable

39

Troy-Bilt 1737938

NUT-H/LK M10-24 NYLOCK
(Superseded to 1983039)

$

$

Not available

43

Troy-Bilt 1754602GAR

ROTOR DRIVE SHAFT

$

$

Currently unavailable

44

Troy-Bilt 1104436

KEY-WOODRUFF .188X.75
(Superseded to 914-0868)

$3.99

$

In Stock, only 4 left!

0

46

Troy-Bilt 1111614

SCR-HH 3/8-16X3.0 G5 ZP
(Superseded to 710-0521)

$5.49

$

In Stock, Qty 11

0

47

Troy-Bilt 1723776

SPACER-.68X.39X.46

$

$

Currently unavailable

48

MTD 1726829

BLOCK-TENSION

$

$

Not available

49

Troy-Bilt 1722614

SPROCKET

$

$

Not available

50

Troy-Bilt 1722617GAR

COVER-END

$

$

Currently unavailable

52

Troy-Bilt 1186329

SCR-HFLK 5/16-18X.75 ZP
(Superseded to 710-04043)

$4.49

$

Usually ships in 3-6 days

0

53

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

54

MTD 1724870

GEAR-WORM LH

$

$

Not available

55

Troy-Bilt 1724885

PIN-DRIVE .09X.75

$

$

Not available

56

MTD 1750573

SUPPORT-SHAFT

$

$

Not available

57

Troy-Bilt 1107386

WASHER-1.305X.649X.098 ZP
(Superseded to 736-0237)

$4.49

$

In Stock, Qty 20+

0

58

MTD 1722501

GUARD-CHUTE

$

$

Not available

60

Troy-Bilt 1724869

CLIP-HOLD DOWN
(Superseded to 1724869099)

$11.99

$

In Stock, Qty 20+

0

61

MTD 1185130

SCR-SEMS MACH

$

$

Not available

62

MTD 1724806

SHAFT-PINION

$

$

Not available

63

Troy-Bilt 1100068

SCR-HH 3/8-16X.75 G5 ZP
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 15

0

64

MTD 1723643

LEVER-ADJUSTING

$

$

Not available

?66

MTD 1750692

DECAL-WARNING

$

$

Not available

68

MTD 1177625

PIN-ROLL 1/8 X 3/4

$

$

Not available

69

Troy-Bilt 1100349

PIN-COTTER .125 X .75 ZP
(Superseded to 914-0474)

$

$

Not available

70

Troy-Bilt 1714782

BLOCK-SWIVEL NYLON

$25.99

$

In Stock, Qty 7

0

71

MTD 1719345

CRANK-HANDLE

$

$

Not available

72

Troy-Bilt 1750954

ASSM-CRANK SUPPORT

$

$

Currently unavailable

73

Troy-Bilt 1715685

GRIP-PLASTIC
(Superseded to 720-0269)

$4.99

$

In Stock, only 1 left!

0

74

Troy-Bilt 1745350GAR

BRACKET-IDLER

$

$

Currently unavailable

75

MTD 1723478

PIN-HITCH .125X2.56 ZP

$

$

Not available

76

Troy-Bilt 1754532GAR

ARM-IDLER ADJUSTING

$

$

Currently unavailable

77

Troy-Bilt 1726660

PULLEY-IDLER
(Superseded to 756-0487)

$48.99

$

In Stock, only 1 left!

0

80

MTD 1748863GAR

ASSM-STRUT SUPPORT

$

$

Not available

81

Troy-Bilt 1749338GAR

ASSM-LIFT TUBE

$

$

Currently unavailable

82

Troy-Bilt 1107385

WASHER-1.06X.531X.1 ZP
(Superseded to 936-0326)

$4.49

$

In Stock, only 4 left!

0

83

Troy-Bilt 1186250

NUT-JAM

$

$

Currently unavailable

84

Troy-Bilt 1749341GAR

ASSM-LIFT ROD

$

$

Currently unavailable

85

Troy-Bilt 1748840GAR

ASSM-BRKT RH

$

$

Currently unavailable

87

Troy-Bilt 1186330

SCR-LOCK
(Superseded to 710-04048)

$4.99

$

In Stock, Qty 7

0

88

MTD 1746208

PIN-CLEVIS

$

$

Not available

89

Troy-Bilt 1748542GAR

ASSM-PUSH ARM

$

$

Currently unavailable

90

Troy-Bilt 1748543GAR

PLATE

$

$

Currently unavailable

91

MTD 1186048

NUT-PUSH 3/16

$

$

Not available

92

Troy-Bilt 1737499

GRIP-VACUCUT

$

$

Not available

93

Troy-Bilt 1746769

SPRING

$16.99

$

Usually ships in 3-6 days

0

94

Troy-Bilt 1767127

BELT-V
(Superseded to 1754702)

$138.99

$

In Stock, only 1 left!

0

96

Troy-Bilt 1751434

REFLECTOR

$

$

Currently unavailable

99

Troy-Bilt 1751060

DECAL-WARNING

$

$

Currently unavailable

100

Troy-Bilt 1749720

KNOB

$

$

Currently unavailable

101

Troy-Bilt 1750732

ROD-ADJUSTOR

$

$

Currently unavailable

102

Troy-Bilt 1750858GAR

ASSM-DEFLECTOR

$

$

Currently unavailable

?103

Troy-Bilt 1750859GAR

SLINGER EXT

$

$

Currently unavailable

104

Troy-Bilt 1800418

BEARING

$

$

Not available

105

MTD 1111602

SCR-HH 1/4-20X3.0 G5 ZP

$

$

Not available

?106

Troy-Bilt 1734398

NUT-HT LK 1/4-20
(Superseded to 912-0291)

$

$

Not available

107

Troy-Bilt 1751909

RING-COTTER
(Superseded to 714-3020)

$4.49

$

In Stock, only 2 left!

0

108

Troy-Bilt 1751908

RING-CIRCLE COTTER

$5.99

$

Usually ships in 3-6 days

0

109

Troy-Bilt 1754465GAR

ASSM-DISCHARGE CHUTE

$

$

Currently unavailable

110

MTD 1757480

CAP-DEFLECTOR W/DECAL

$

$

Not available

111

Troy-Bilt 1700205

SPACER

$

$

Currently unavailable

112

MTD 1100770

SCR-HH 3/8-16X2.75 G5 ZP

$

$

Not available

113

Troy-Bilt 1755553GAR

ASSM-PIVOT SUPPORT

$

$

Currently unavailable

114

Troy-Bilt 1100350

PIN-COTTER .120X1.00 ZP
(Superseded to 914-0115)

$3.99

$

In Stock, Qty 20+

0

115

Troy-Bilt 1725075

BUSHING-.81X.62X.62 FLNG

$

$

Currently unavailable

116

Troy-Bilt 1755554GAR

ARM-SPRING ANCHOR

$

$

Currently unavailable

117

MTD 1755550GAR

ASSM-IDLER ARM

$

$

Not available

118

Troy-Bilt 1186393

NUT-HFLK 3/8-16 ZP

$3.49

$

In Stock, only 2 left!

0

119

Troy-Bilt 1100046

SCR-HH 3/8-16X1.0 G5 ZP
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

120

MTD 1756723GAR

PLATE

$

$

Not available

121

Troy-Bilt 1756579

SEAL

$

$

Not available

122

MTD 1186332

SCR-HFLK 5/16-18X1.25 ZP

$

$

Not available

Troy-Bilt 1900706

PAINT-RED SPRAYCAN POWDER
(Superseded to 788-0638A)

$24.99

$

Usually ships in 3-6 days

0
