30137 - Toro 37" Recycler Mower Deck (SN: 210000001 - 210999999) (2001) DECK ASSEMBLY Parts Diagram

37" Recycler Mower Deck

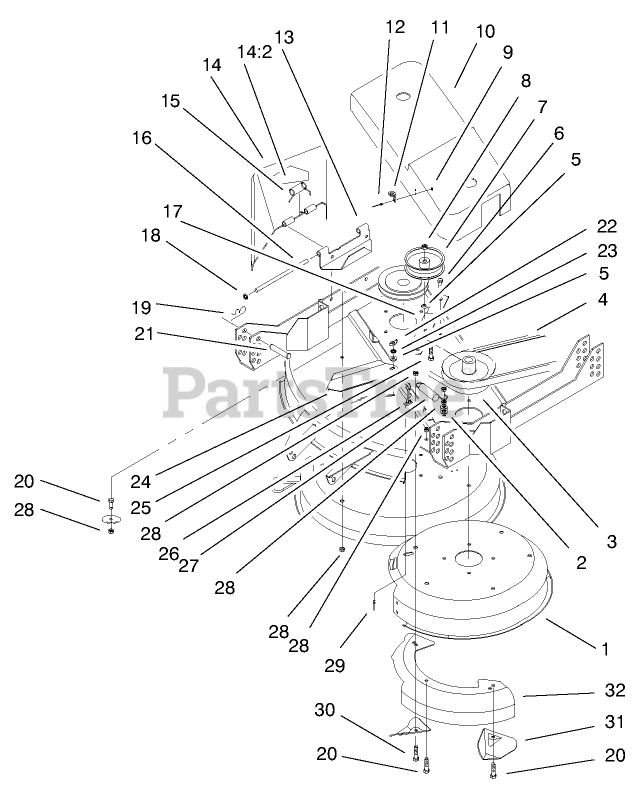

DECK ASSEMBLY Parts Diagram

  • Title
1

Toro 99-8510

DECK SUPPORT

$

$

Not available

2

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

3

Toro 84-4410

V-BELT, DECK

$40.99

$

In Stock, only 3 left!

0

4

Toro 84-4390

V-BELT, DECK DRIVE

$55.99

$

In Stock, only 3 left!

0

5

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

6

Toro 19-1471

SCREW-SHOULDER

$3.99

$

Usually ships in 3-6 days

0

7

Toro 36-3220

PULLEY-IDLER

$33.99

$

In Stock, only 2 left!

0

8

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

9

Toro 3269-10

WASHER-BACK

$0.99

$

In Stock, only 4 left!

0

10

Toro 84-4350

COVER-PULLEY

$

$

Not available

11

Toro 117343

KEEPER-LATCH

$4.99

$

In Stock, only 2 left!

0

12

$0.99

$

Usually ships in 3-6 days

0

13

Toro 82-7530-01

DEFLECTOR HINGE

$

$

Not available

14

Toro 99-8511

DEFLECTOR

$

$

Not available

14:2

Toro 54-9220

DECAL-DANGER
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0

15

Toro 40-6230

SPRING

$39.99

$

Usually ships in 3-6 days

0

16

Toro 82-7540

PIN-HINGE

$

$

Not available

17

Toro 84-4330-03

LEVER-IDLER

$37.99

$

Usually ships in 3-6 days

0

18

Toro 32151-56

RING-RETAINING, EXTERNAL

$6.49

$

In Stock, Qty 5

0

19

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

20

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

21

Toro 283-55

PIN-CLEVIS

$11.99

$

In Stock, Qty 5

0

22

Toro 32103-27

NUT-WING

$2.49

$

Usually ships in 3-6 days

0

23

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

24

Toro 84-4420-01

COVER-SLOT

$

$

Not available

25

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

26

Toro 117344

HANDLE ASM

$36.99

$

In Stock, only 1 left!

0

27

Toro 54-1160

SPRING-EXTENSION, DECK

$55.99

$

In Stock, only 2 left!

0

28

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

29

Toro 3269-13

RIVET-POP

$0.99

$

In Stock, only 2 left!

0

30

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

31

Toro 84-5761-03

PLATE-KICKER

$

$

Not available

32

Toro 92-2937-01

INSERT - DECK

$

$

Not available
