30137 - Toro 37" Recycler Mower Deck (SN: 200000001 - 200999999) (2000) SPINDLE ASSEMBLY Parts Diagram

37" Recycler Mower Deck

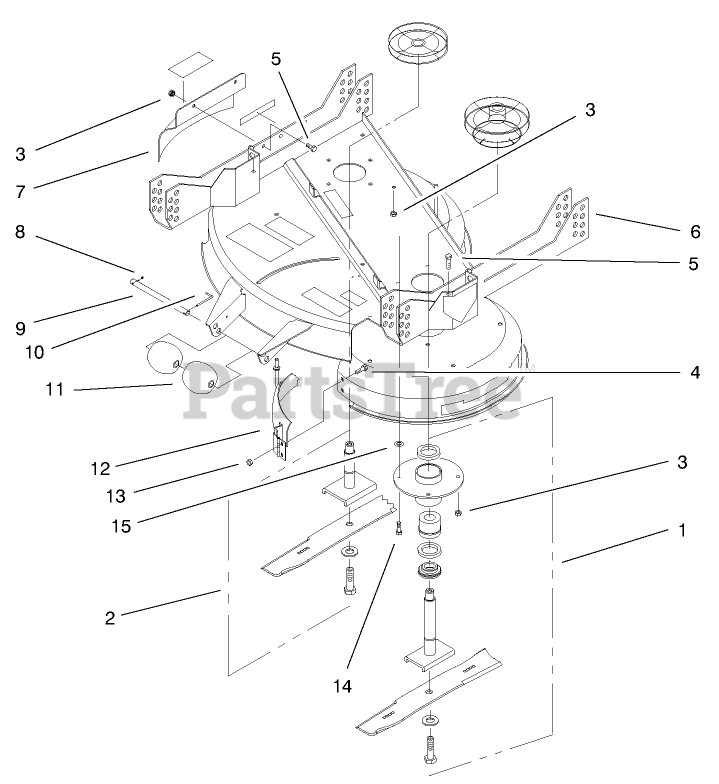

SPINDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 14-6259

SPINDLE ASM-DRIVE

$

$

Not available

2

Toro 14-6269

SPINDLE ASM-OUTER

$

$

Not available

3

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

5

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

6

Toro 92-3143-01

Deck Support Wa

$

$

Not available

7

Toro 86-9870-01

Disch Chute Cover Wa
(Superseded to 99-8512)

$

$

Not available

8

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

9

Toro 40-6400

SHAFT-ROLLER

$39.99

$

In Stock, Qty 5

0

10

Toro 57-0690

PIN-SPECIAL

$4.99

$

In Stock, only 4 left!

0

11

Toro 29-4820

ROLLER

$18.99

$

In Stock, only 2 left!

0

12

Toro 92-2932-01

COVER-FRONT

$

$

Not available

13

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

14

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0
