30137 - Toro 37" Recycler Mower Deck (SN: 039000001 - 039999999) (1993) DECK & SPINDLE ASSEMBLY Parts Diagram

37" Recycler Mower Deck

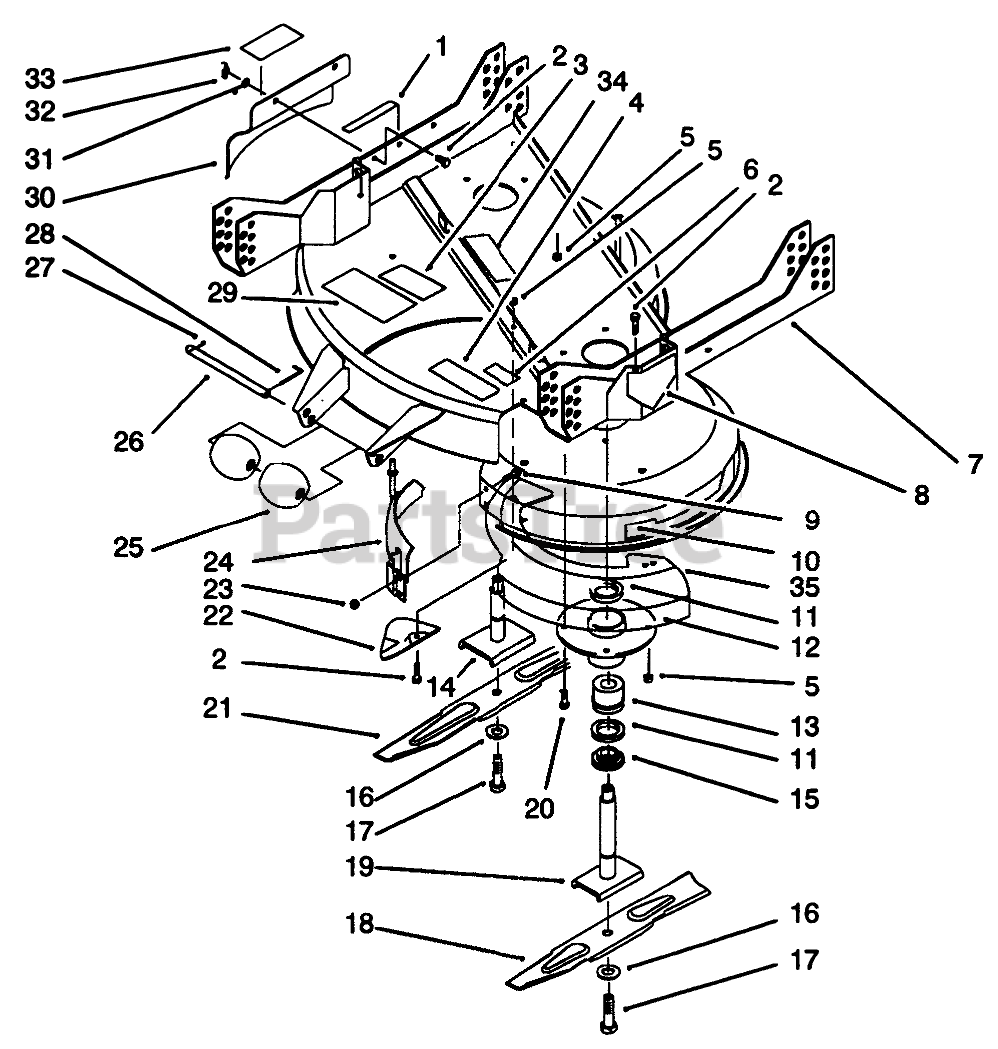

DECK & SPINDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 68-3650

DECAL-DANGER, DEFLECTOR

$13.99

$

Usually ships in 3-6 days

0

2

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Toro 68-8340

DECAL-TORQUE

$19.99

$

In Stock, only 1 left!

0

4

Toro 85-7080

DECAL - DISCHARGE DOOR

$

$

Not available

5

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

6

Decal

$

$

Not available

7

Toro 14-9679

Deck Support (Incl. Ref. #3, 4, 6, 8, & 29)
(Superseded to 99-8510)

$

$

Not available

8

Toro 43-8480

DECAL-DANGER

$6.49

$

In Stock, Qty 6

0

9

Toro 3229-22

SCREW-CARRIAGE
(Superseded to 3229-11)

$1.49

$

In Stock, Qty 20+

0

10

Toro 84-4340

DECAL - 37"

$

$

Not available

11

Toro 253-139

SEAL-OIL

$12.99

$

In Stock, Qty 6

0

12

Toro 82-5990

SPINDLE HOUSING

$

$

Not available

13

Toro 46-8530

BEARING ASM

$94.99

$

In Stock, only 4 left!

0

14

Toro 84-4430

SHAFT-SPINDLE

$279.99

$

Usually ships in 3-6 days

0

15

Toro 27-0950

SPACER

$31.99

$

Usually ships in 3-6 days

0

16

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

17

Toro 51-4060

SCREW-BLADE

$7.99

$

In Stock, Qty 20+

0

18

Toro 84-4370

Blade-17"
(Superseded to 93-0107-03)

$43.99

$

In Stock, only 1 left!

0

19

Toro 51-3552

SHAFT-SPINDLE

$311.99

$

Usually ships in 3-6 days

0

20

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

21

Toro 84-4380

Blade-21"
(Superseded to 93-0106-03)

$35.99

$

In Stock, only 2 left!

0

22

Toro 84-5760

PLATE-KICKER

$13.99

$

Usually ships in 3-6 days

0

23

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

24

Toro 92-2932

Cover-Front
(Superseded to 92-2932-01)

$444.99

$

Usually ships in 3-6 days

0

25

Toro 29-4820

ROLLER

$16.99

$

In Stock, only 2 left!

0

26

Toro 40-6400

SHAFT-ROLLER

$39.99

$

In Stock, Qty 5

0

27

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

28

Toro 57-0690

PIN-SPECIAL

$4.99

$

In Stock, only 4 left!

0

29

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 1 left!

0

30

Toro 86-9870

Cover-Discharge
(Superseded to 99-8512)

$494.99

$

Usually ships in 3-6 days

0

31

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

32

Toro 32103-27

NUT-WING

$1.99

$

Usually ships in 3-6 days

0

33

Toro 82-7490

DECAL - DANGER

$

$

Not available

34

Toro 67-5360

DECAL-DANGER

$13.99

$

In Stock, only 1 left!

0

35

Toro 92-2937

Insert-Deck
(Superseded to 92-2937-01)

$

$

Not available
