30136 - Toro 36" Side-Discharge Mower Deck (SN: 008000001 - 008999999) (1988) CUTTING UNIT ASSEMBLY Parts Diagram

36" Side-Discharge Mower Deck

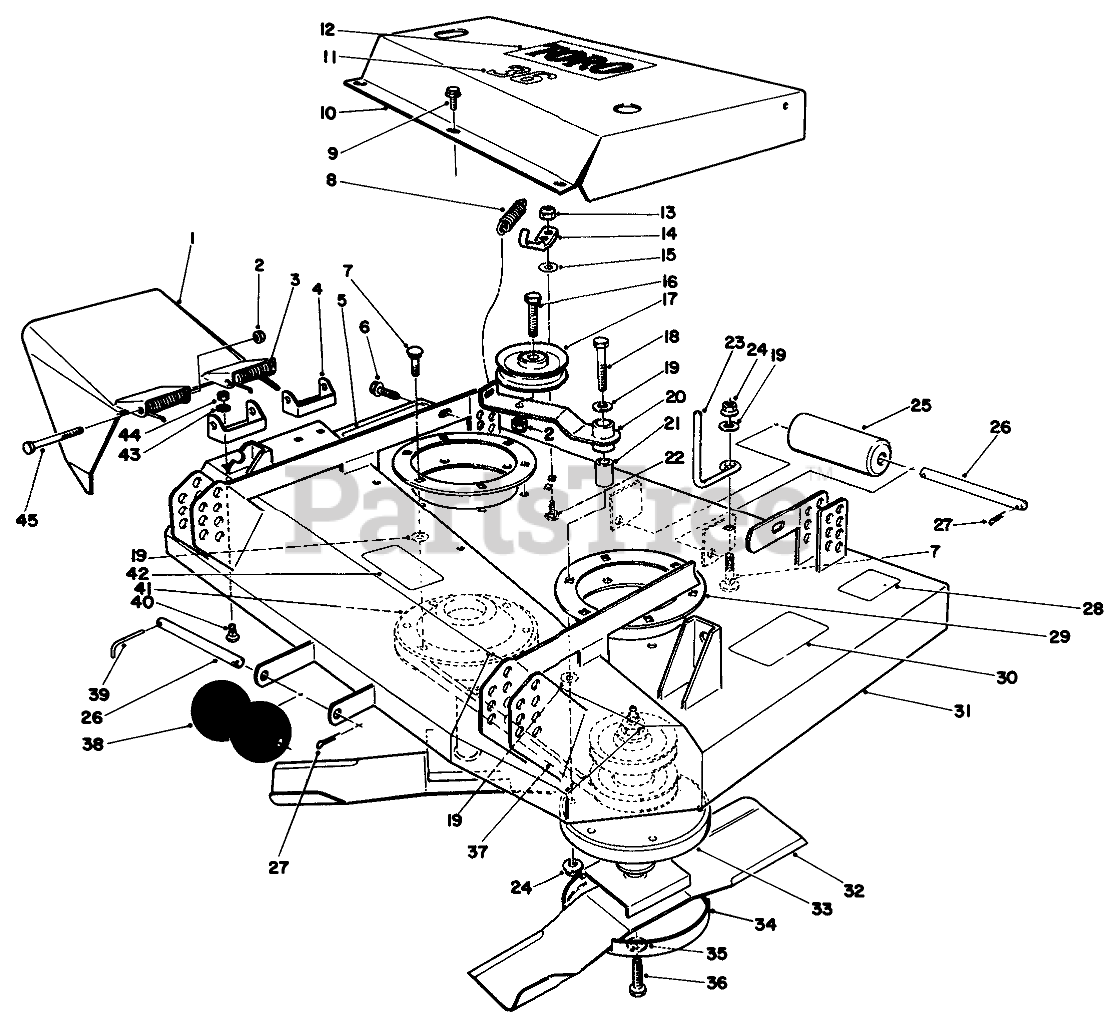

CUTTING UNIT ASSEMBLY Parts Diagram

  • Title

1

Toro 51-3670

Deflector-Grass
(Superseded to 13-3879)

$

$

Not available

2

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

3

Toro 40-6230

SPRING

$39.99

$

Usually ships in 3-6 days

0

4

Toro 29-5590

Bracket-Pivot
(Superseded to 29-5590-03)

$

$

Not available

5

Toro 26-7980

DECAL-CAUTION, DEFLECTOR

$

$

Not available

6

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

7

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

8

Toro 51-3650

SPRING-EXTENSION

$23.99

$

In Stock, Qty 5

0

9

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, Qty 20+

0

10

Toro 51-3690

COVER-DECK

$

$

Not available

11

Toro 51-3730

Decal-36 Inch

$

$

Not available

12

Toro 62-7400

DECAL

$26.99

$

Usually ships in 3-6 days

0

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 56-4360

ROD - SPRING

$78.99

$

Usually ships in 3-6 days

0

15

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 3211-5

SCREW-HH

$3.49

$

In Stock, Qty 5

0

17

Toro 51-3660

PULLEY-IDLER

$39.99

$

In Stock, Qty 5

0

18

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

19

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 56-4341

Wa-Arm
(Superseded to 56-4341-03)

$93.99

$

Usually ships in 3-6 days

0

21

Toro 51-3641

SLEEVE-PIVOT, IDLER

$20.99

$

In Stock, only 2 left!

0

22

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, Qty 20+

0

23

Toro 52-4780

ROD-BELT

$14.99

$

In Stock, Qty 6

0

24

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

25

Toro 36-1740

ROLLER-DECK

$45.99

$

In Stock, only 3 left!

0

26

Toro 40-6400

SHAFT-ROLLER

$39.99

$

In Stock, Qty 5

0

27

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

28

Toro 42-6860

DECAL

$

$

Not available

29

Toro 27-7680

SUPPORT-DECK, RING
(Superseded to 27-7680-03)

$86.99

$

Usually ships in 3-6 days

0

30

Toro 26-7970

DECAL-CAUTION, BLADE

$

$

Not available

31

Toro 51-3310

Deck
(Superseded to 99-5873)

$

$

Not available

32

Toro 56-2390

BLADE-SAIL, EXTRA HIGH
(Superseded to 56-2390-03)

$37.99

$

In Stock, Qty 13

0

Toro 27-0990

Blade
(Superseded to 27-0990-03)

$23.99

$

In Stock, Qty 8

0

33

Toro 54-7781

HOUSING - SPINDLE ASM

$1053.99

$

Usually ships in 3-6 days

0

34

Toro 27-1000

Cup-Scalp
(Superseded to 72-9361)

$42.99

$

Usually ships in 3-6 days

0

35

Toro 3253-27

WASHER-LOCK

$2.99

$

In Stock, Qty 6

0

36

Toro 44-2200

SCREW-BLADE

$4.99

$

In Stock, Qty 6

0

37

Toro 51-3530

V-BELT-DRIVE, DECK

$37.99

$

In Stock, Qty 6

0

38

Toro 29-4820

ROLLER

$18.99

$

In Stock, Qty 8

0

39

Toro 57-0690

PIN-SPECIAL

$4.99

$

In Stock, only 4 left!

0

40

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 20+

0

41

Toro 27-0870

SPINDLE ASM

$548.99

$

Usually ships in 3-6 days

0

42

Toro 26-7960

Decal-Caution
(Superseded to 68-7280)

$13.99

$

Usually ships in 3-6 days

0

43

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

44

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

45

Toro 3211-15

SCREW-HH

$9.49

$

Usually ships in 3-6 days

0
