30136 - Toro 36" Side-Discharge Mower Deck (SN: 004000001 - 004999999) (1984) SULKY MODEL NO. 30120 (OPTIONAL) Parts Diagram

36" Side-Discharge Mower Deck

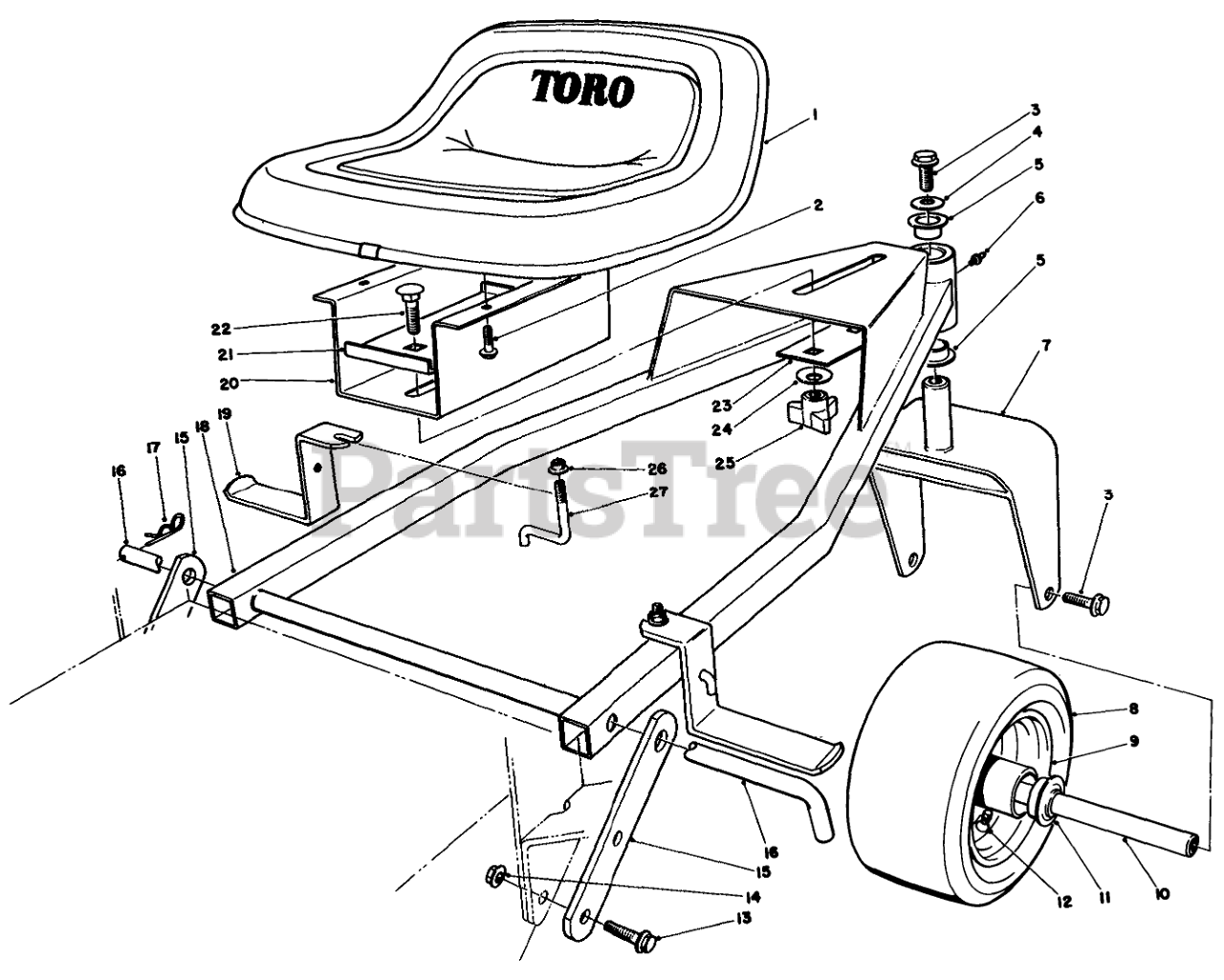

SULKY MODEL NO. 30120 (OPTIONAL) Parts Diagram

  • Title

1

Toro 38-0850

Seat
(Superseded to 55-8691)

$

$

Not available

2

Toro 3234-14

SCREW-HHF

$1.99

$

In Stock, Qty 20+

0

3

Toro 3234-6

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

4

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 256-132

BUSHING-FLANGE

$8.99

$

In Stock, Qty 5

0

6

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

7

Toro 52-8670

Castor Assembly

$

$

Not available

8

Toro 231-111

TIRE

$104.99

$

Usually ships in 3-6 days

0

9

Toro 52-8830

Wheel & Tire Assembly (Incl. Ref. #8, 11 & 12)

$

$

Currently unavailable

10

Toro 52-8810

Shaft-Wheel

$

$

Not available

11

Toro 251-299

BEARING-WHEEL

$59.99

$

Usually ships in 3-6 days

0

12

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 14

0

13

Toro 3234-18

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

14

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

15

Toro 52-8750

Bracket-Mounting

$

$

Not available

16

Toro 52-8770

ATTACHMENT PIN

$

$

Not available

17

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

18

Toro 52-8660

Frame Assembly

$

$

Not available

19

Toro 52-8710

Plate-Foot Rest

$

$

Not available

20

Toro 52-8720

Support-Seat Upper

$

$

Not available

21

Toro 52-8730

Plate-Lock, Upper

$

$

Not available

22

Toro 3231-4

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

23

Toro 52-8740

Plate-Lock, Lower

$

$

Not available

24

Toro 3290-340

WASHER-BELLEVILLE

$7.99

$

In Stock, Qty 10

0

25

Toro 233-52

KNOB

$

$

Not available

26

Toro 52-8780

Rod-Foot Rest

$

$

Not available

27

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0
