30136 - Toro 36" Side-Discharge Mower Deck (SN: 004000001 - 004999999) (1984) HANDLE ASSEMBLY Parts Diagram

36" Side-Discharge Mower Deck

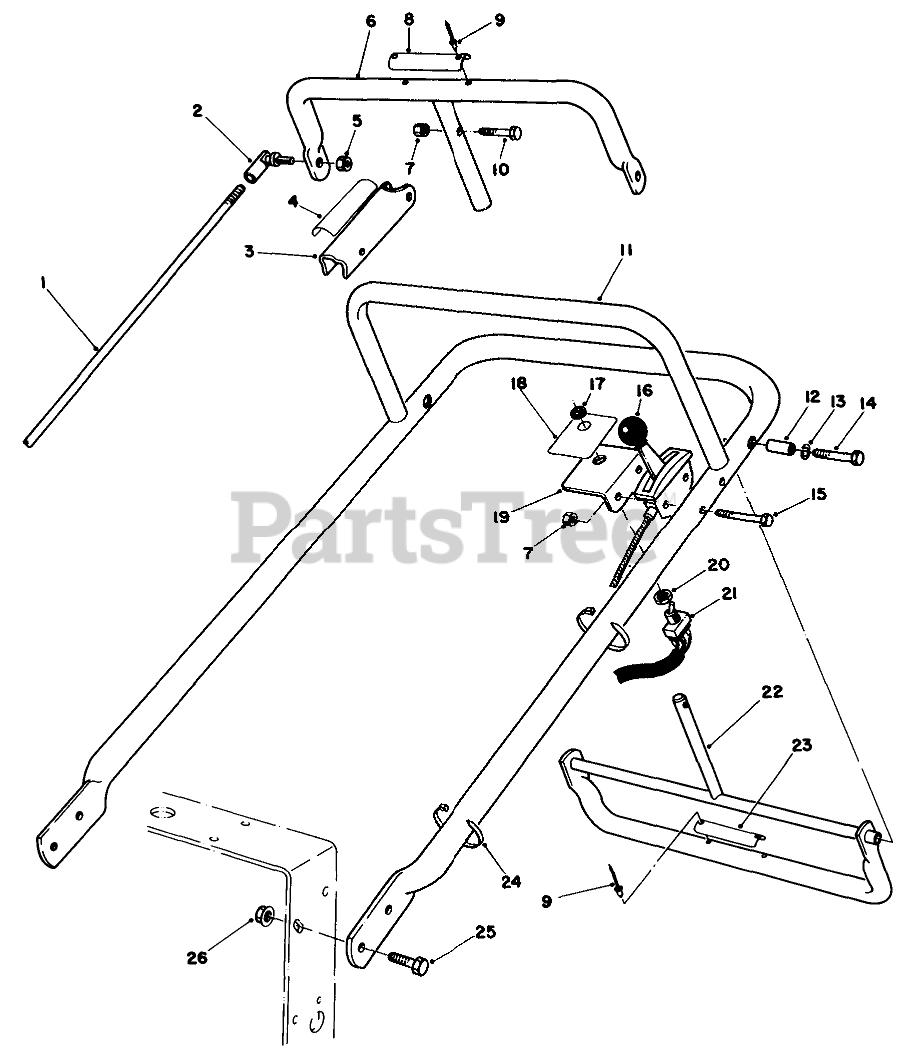

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 52-5420

Rod-Control
(Superseded to 51-4590)

$

$

Not available

2

Toro 2411-32

JOINT-BALL

$33.99

$

Usually ships in 3-6 days

0

3

Toro 51-4850

Lever-Parking Brake
(Superseded to 51-4850-03)

$38.99

$

In Stock, only 1 left!

0

4

Toro 52-2010

DECAL-LEVER, PARKING

$5.99

$

Usually ships in 3-6 days

0

5

Toro 32964

Nut

$

$

Currently unavailable

6

Toro 51-4730

Bar-Control
(Superseded to 51-4730-03)

$

$

Not available

7

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Toro 52-2120

DECAL-REVERSE HANDLE

$

$

Not available

9

Toro 3290-54

RIVET-BLIND

$0.99

$

In Stock, only 2 left!

0

10

Toro 32105-1

SCREW-SHH

$3.49

$

In Stock, Qty 7

0

11

Toro 51-4550

HANDLE-UPPER
(Superseded to 51-4550-01)

$

$

Not available

12

Toro 51-4790

PIVOT-SPACER

$

$

Not available

13

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

14

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

15

Toro 32105-6

MACH SCREW 10-24 2.25 L

$

$

Not available

16

Toro 51-4820

THROTTLE-CONTROL

$

$

Not available

17

Toro 218-497

NUT-BULB

$

$

Not available

18

Toro 52-2130

CLUTCH/THROTTLE DECAL

$

$

Not available

19

Toro 51-4840

Plate-Switch

$

$

Not available

20

Toro 218-498

NUT-LOCK

$0.99

$

In Stock, only 2 left!

0

21

Toro 51-3260

Switch-Toggle (Incl. Ref.#16 & 19)

$

$

Not available

22

Toro 51-4760

Control-Pivot
(Superseded to 106-5477-03)

$202.99

$

Usually ships in 3-6 days

0

23

Toro 52-2110

Plate-Control Bar

$

$

Not available

24

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0

25

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

26

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0
