30136 - Toro 36" Side-Discharge Mower Deck (SN: 004000001 - 004999999) (1984) FRAME ASSEMBLY Parts Diagram

36" Side-Discharge Mower Deck

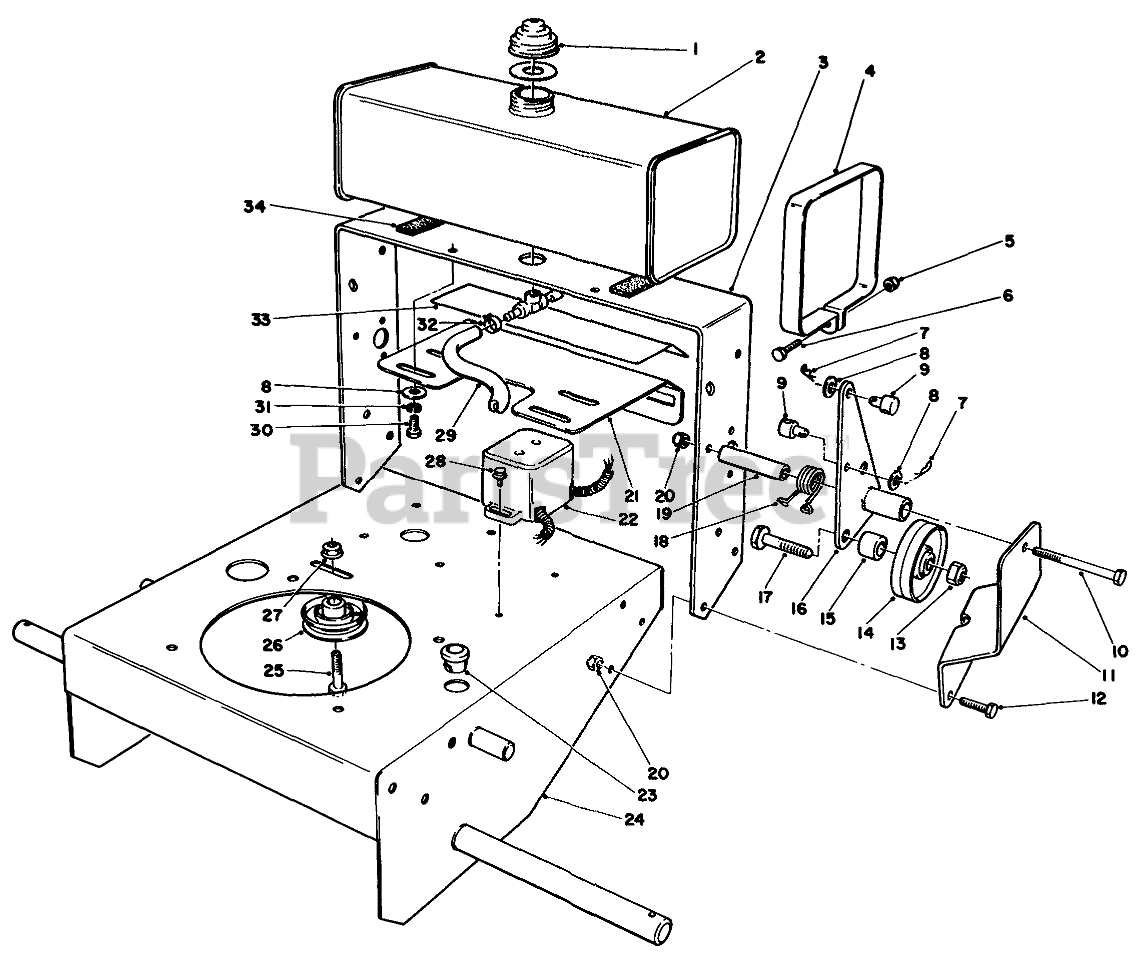

FRAME ASSEMBLY Parts Diagram

  • Title
1

Toro 2210-255

Cap-Gas

$

$

Currently unavailable

2

Toro 51-4420

Tank-Fuel

$

$

Currently unavailable

3

Toro 51-4130

Frame-Rear
(Superseded to 74-0360-01)

$

$

Not available

4

Toro 51-4430

FUEL TANK STRAP B

$

$

Not available

5

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

6

Toro 321-8

SCREW-HH

$3.99

$

In Stock, Qty 9

0

7

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

8

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

9

Toro 51-4690

ROD FITTING

$

$

Not available

10

Toro 323-42

SCREW-HH
(Superseded to 325-14)

$4.49

$

Usually ships in 3-6 days

0

11

Toro 51-4360

Support-Idler L.H.
(Superseded to 67-6380-01)

$126.99

$

Usually ships in 3-6 days

0

Toro 51-4350

Support-Idler R.H.
(Superseded to 67-6370-01)

Note: Not Illustrated.

$126.99

$

Usually ships in 3-6 days

0

12

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

13

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

14

Toro 51-4480

IdlerWheel
(Superseded to 99-5879)

$67.99

$

Usually ships in 3-6 days

0

15

Toro 51-4490

WHEEL IDLER SPACER

$

$

Not available

16

Toro 51-4310

LH IDLER BRKT WA

$96.99

$

Usually ships in 3-6 days

0

Toro 51-4300

Bracket-Idler R.H.
(Superseded to 67-6750)

Note: Not Illustrated.

$

$

Not available

17

Toro 51-4450

SCREW-LEVELER

$13.99

$

Usually ships in 3-6 days

0

18

Toro 51-4380

SPRING-TORSION, LH

$17.99

$

In Stock, only 1 left!

0

Toro 51-4370

SPRING-TORSION, RH

Note: Not Illustrated.

$17.99

$

In Stock, only 1 left!

0

19

Toro 51-4340

PIVOT-IDLER SPACER

$22.99

$

In Stock, only 1 left!

0

20

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

21

Toro 51-4140

CONTROL PLATE R

$

$

Not available

22

Toro 51-4830

Electrical Package Assembly
(Superseded to 56-2250)

$

$

Not available

23

Toro 237-121

BUSHING

$

$

Not available

24

Toro 51-4100

Frame

$

$

Not available

25

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

26

Toro 51-4810

PULLEY-IDLER

$46.99

$

Usually ships in 3-6 days

0

27

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

28

Toro 33-2270

SCREW

$

$

Not available

29

Toro 47-2983

HOSE-FUEL
(Superseded to 109-0296)

$10.99

$

In Stock, only 4 left!

0

30

Toro 322-1

SCREW-HH

$0.99

$

In Stock, Qty 9

0

31

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

32

Toro 2412-33

Clamp
(Superseded to 2412-98)

$1.49

$

In Stock, Qty 20+

0

33

Toro 52-2140

Decal-Ground Speed
(Superseded to 82-7750)

$

$

Not available

34

Toro 51-4210

PAD-TANK, FUEL

$

$

Not available
