30135 - Toro 36" Side-Discharge Mower Deck (SN: 260000001 - 260999999) (2006) CARRIER FRAME AND CASTER ASSEMBLY Parts Diagram

36" Side-Discharge Mower Deck

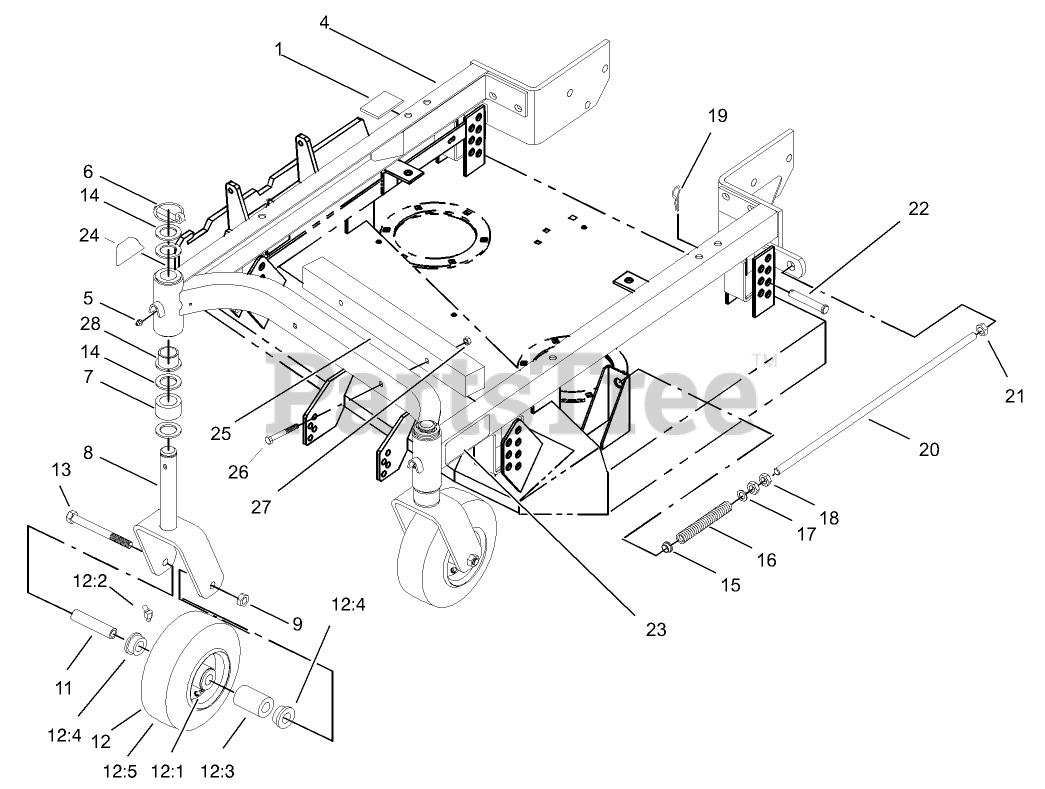

CARRIER FRAME AND CASTER ASSEMBLY Parts Diagram

  • Title

1

Toro 74-0350

CUSHION-RUBBER

$7.99

$

In Stock, Qty 5

0

4

Toro 17-5999-01

36" Carrier Frame
(Superseded to 95-2821)

$2364.99

$

Usually ships in 3-6 days

0

5

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

6

Toro 1-809020

PIN

$11.99

$

In Stock, only 2 left!

0

7

Toro 93-1166

SPACER-CASTOR

$34.99

$

Usually ships in 3-6 days

0

8

Toro 100-6455-01

CASTOR FORK ASM

$252.99

$

Usually ships in 3-6 days

0

9

Toro 32153-5

NUT-HEX

$1.99

$

In Stock, Qty 13

0

11

Toro 100-6453

BUSHING-SPANNER

$26.99

$

In Stock, only 2 left!

0

12

Toro 100-6451

CASTER WHEEL ASM

$158.99

$

In Stock, only 2 left!

0

12:1

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 17

0

12:2

Toro 302-11

FITTING-LUBE, 45 DEG

$1.49

$

In Stock, only 2 left!

0

12:3

Toro 83-4740

BEARING

$14.99

$

In Stock, Qty 7

0

12:4

Toro 62-5580

BEARING-OUTSIDE

$6.99

$

In Stock, only 2 left!

0

12:5

Toro 100-6452

TIRE-TUBELESS

$71.99

$

In Stock, only 2 left!

0

13

Toro 325-19

SCREW-HH

$8.49

$

In Stock, only 4 left!

0

14

Toro 3-6781

WASHER-THRUST

$3.49

$

In Stock, Qty 7

0

15

Toro 256-156

BUSHING-FLANGE

$13.99

$

In Stock, only 2 left!

0

16

Toro 74-0290

SPRING

$23.99

$

Usually ships in 3-6 days

0

17

Toro 41-8440

WASHER

$1.99

$

In Stock, only 4 left!

0

18

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

19

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

20

Toro 74-0310

SHAFT-ADJUSTING

$56.99

$

In Stock, only 2 left!

0

21

Toro 3296-45

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

22

Toro 283-55

PIN-CLEVIS

$11.99

$

In Stock, Qty 5

0

23

Toro 85-7450

DECAL-HOC, LH

$28.99

$

Usually ships in 3-6 days

0

24

Toro 85-7460

DECAL-HOC, RH

$28.99

$

Usually ships in 3-6 days

0

25

Toro 80-3340-01

Front Weight
(Superseded to 106-0820)

$314.99

$

Usually ships in 3-6 days

0

26

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$1.99

$

In Stock, Qty 14

0

27

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

28

Toro 94-1291

BUSHING

$10.99

$

In Stock, Qty 11

0
