30135 - Toro 36" Side-Discharge Mower Deck (SN: 250000001 - 250999999) (2005) DECAL AND DECK ASSEMBLY Parts Diagram

36" Side-Discharge Mower Deck

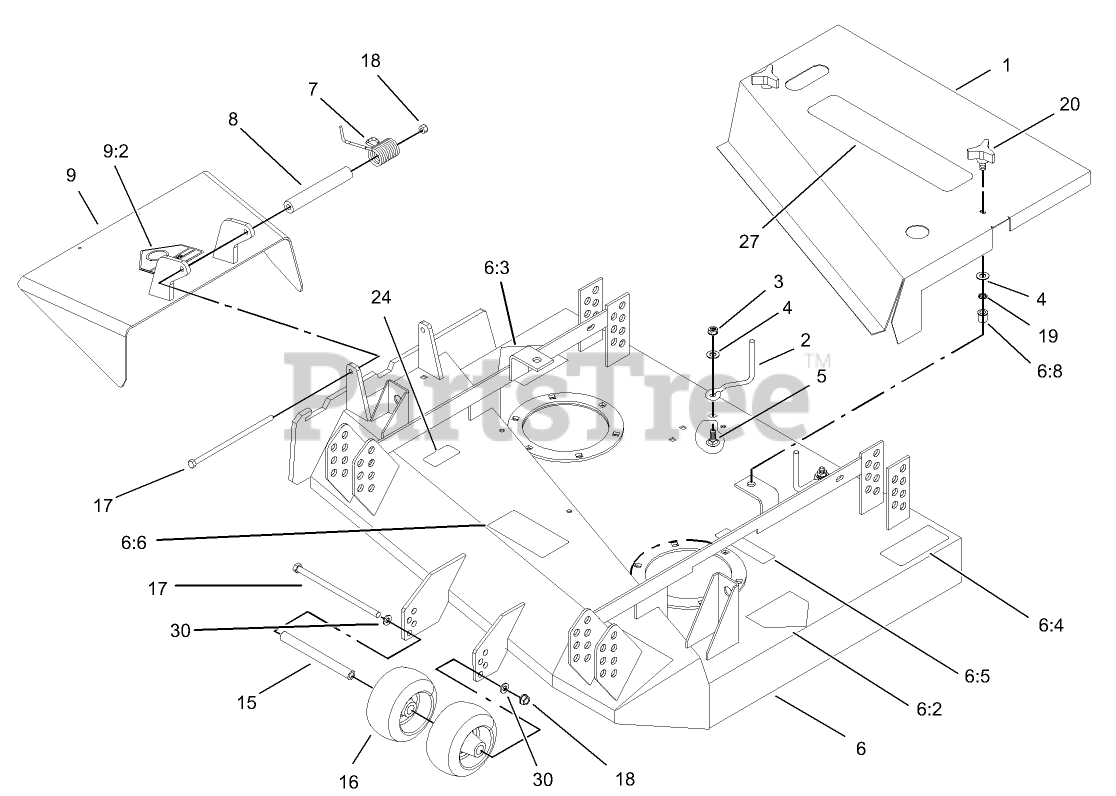

DECAL AND DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 82-5460-01

COVER

$

$

Not available

2

Toro 52-4780

ROD-BELT

$14.99

$

In Stock, Qty 6

0

3

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

4

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

6

Toro 106-0745

Deck ASM

$

$

Not available

6:2

Toro 43-8480

DECAL-DANGER

$6.99

$

In Stock, Qty 6

0

6:3

Toro 93-1122

DECAL-DANGER

$9.99

$

In Stock, Qty 12

0

6:4

Toro 68-8340

DECAL-TORQUE

$21.99

$

In Stock, only 1 left!

0

6:5

Toro 67-5360

DECAL-DANGER

$15.99

$

In Stock, only 1 left!

0

6:6

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 3 left!

0

6:8

Toro 32148-10

INSERT-NUT

$8.99

$

Usually ships in 3-6 days

0

7

Toro 104-8554

SPRING-TORSION

$23.99

$

In Stock, only 1 left!

0

8

Toro 105-4622

SPACER

$10.99

$

In Stock, Qty 5

0

9

Toro 104-7753

DEFLECTOR ASM
(Superseded to 105-4623)

$365.99

$

Usually ships in 3-6 days

0

9:2

Toro 54-9220

DECAL-DANGER
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0

15

Toro 98-5967

SPACER-WHEEL

$15.99

$

In Stock, Qty 20+

0

16

Toro 68-2730

WHEEL-GAGE
(Superseded to 1-603299)

$23.99

$

In Stock, Qty 20+

0

17

Toro 322-50

SCREW-HH

$6.49

$

In Stock, Qty 13

0

18

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

19

Toro 32151-72

RING-RETAINING

$1.99

$

Usually ships in 3-6 days

0

20

Toro 62-6520

KNOB

$8.49

$

In Stock, only 1 left!

0

27

Toro 106-0703

Decal

$

$

Not available
