30135 - Toro 36" Side-Discharge Mower Deck (SN: 200000001 - 200999999) (2000) SPINDLE AND IDLER ASSEMBLY Parts Diagram

36" Side-Discharge Mower Deck

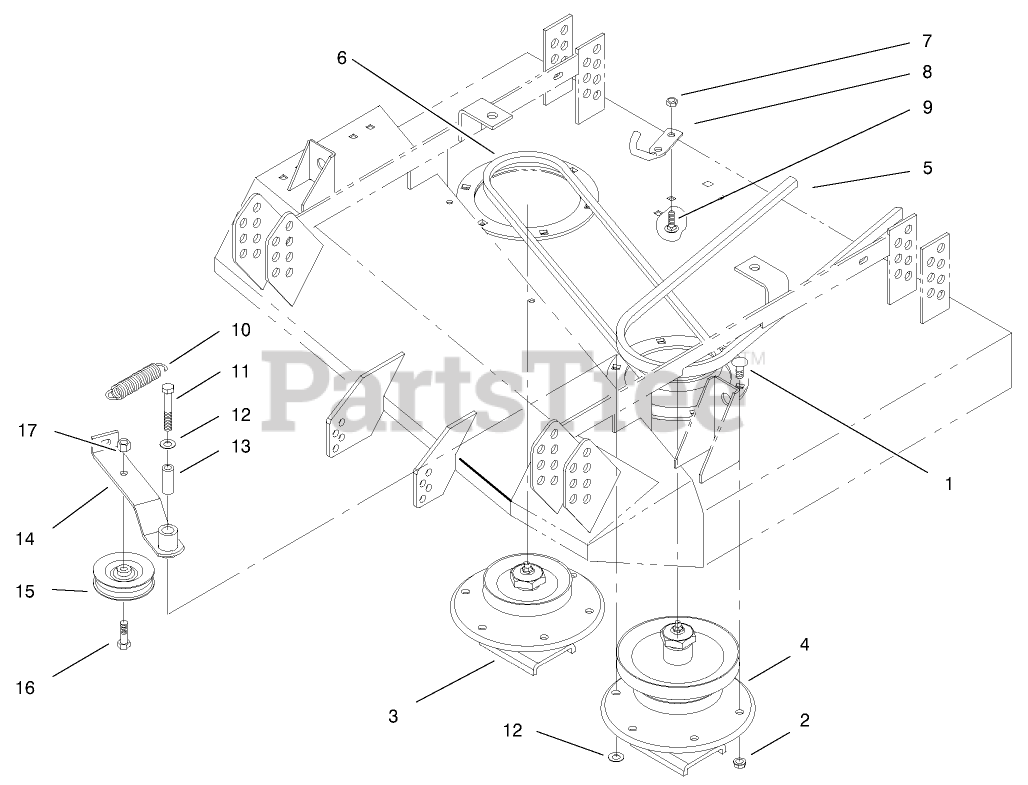

SPINDLE AND IDLER ASSEMBLY Parts Diagram

  • Title

1

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

2

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

3

Toro 27-0870

SPINDLE ASM

$548.99

$

Usually ships in 3-6 days

0

4

Toro 54-7781

HOUSING - SPINDLE ASM

$1053.99

$

Usually ships in 3-6 days

0

5

Toro 55-7660

V-BELT

$64.99

$

In Stock, only 1 left!

0

6

Toro 51-3530

V-BELT-DRIVE, DECK

$37.99

$

In Stock, only 1 left!

0

7

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Toro 56-4360

ROD - SPRING

$78.99

$

Usually ships in 3-6 days

0

9

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, only 2 left!

0

10

Toro 51-3650-01

Spring-Extension
(Superseded to 51-3650)

$23.99

$

In Stock, Qty 5

0

11

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 10

0

12

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

13

Toro 51-3641

SLEEVE-PIVOT, IDLER

$20.99

$

In Stock, only 1 left!

0

14

Toro 56-4341-03

IDLER ARM ASM

$93.99

$

Usually ships in 3-6 days

0

15

Toro 51-3660

PULLEY-IDLER

$39.99

$

In Stock, Qty 5

0

16

Toro 3211-5

SCREW-HH

$3.49

$

In Stock, Qty 5

0

17

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0
