30133 - Toro 32" Recycler Mower Deck (SN: 049000501 - 049999999) (1994) CUTTING UNIT ASSEMBLY Parts Diagram

32" Recycler Mower Deck

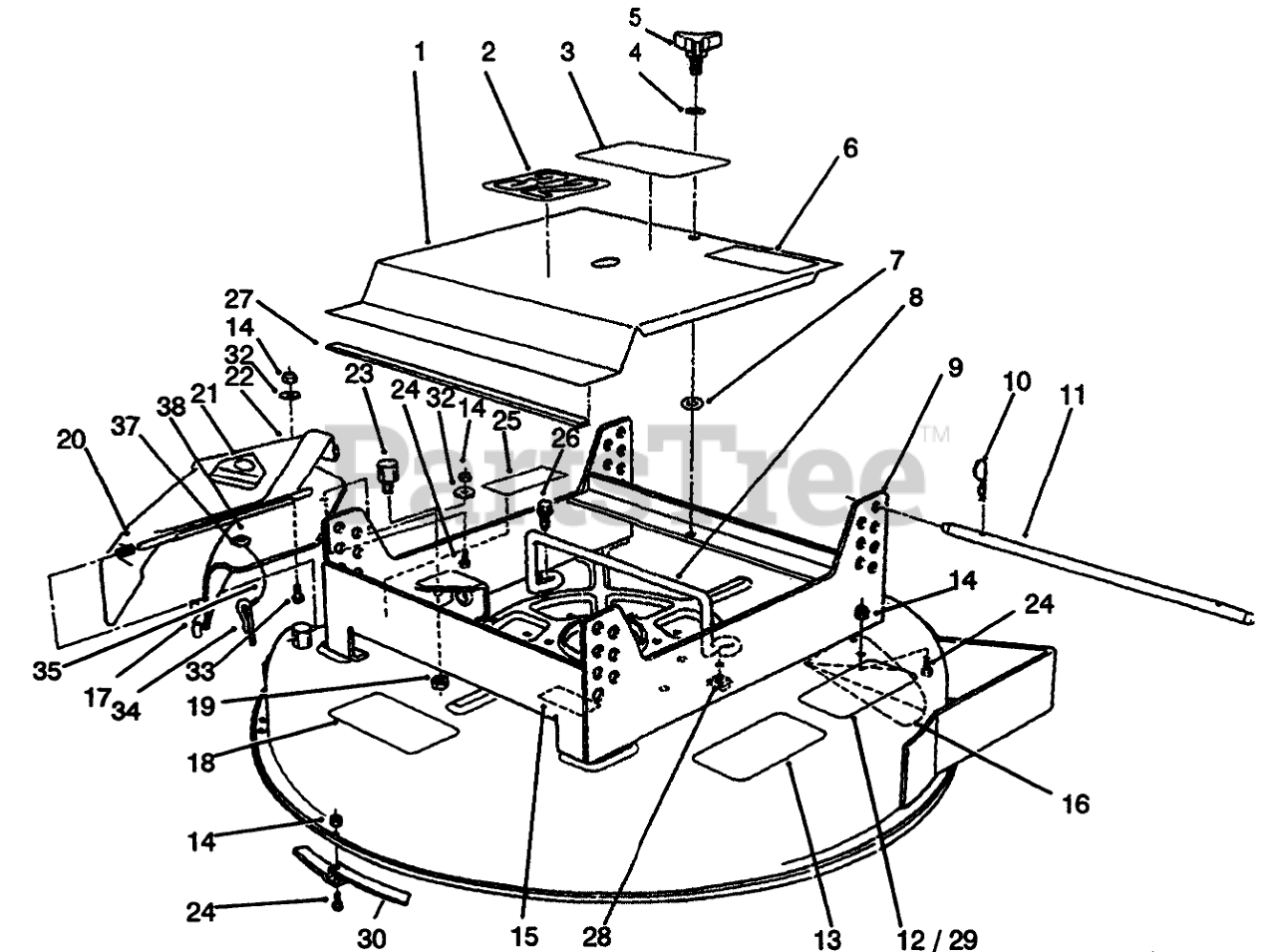

CUTTING UNIT ASSEMBLY Parts Diagram

  • Title
1

Toro 67-6150

Cover (Incl. Ref.#2-7 & 27)

$552.99

$

Usually ships in 3-6 days

0

2

Toro 67-6170

DECAL

$

$

Not available

3

Toro 74-2080

DECAL-PROLINE

$

$

Not available

4

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

$8.49

$

In Stock, only 1 left!

0

6

Toro 54-0910

DECAL-HOT

$

$

Not available

7

Toro 32151-72

RING-RETAINING

$1.99

$

Usually ships in 3-6 days

0

8

Toro 74-0570

GUIDE-BELT

$77.99

$

Usually ships in 3-6 days

0

9

Toro 14-5079

32 INCH DECK ASM

$

$

Not available

10

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

11

Toro 67-6140

ROD-SUPPORT

$

$

Not available

12

Toro 42-6860

DECAL

$

$

Not available

13

Toro 66-1330

Decal
(Superseded to 68-8340)

$21.99

$

In Stock, only 1 left!

0

14

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 67-5360

DECAL-DANGER

$15.99

$

In Stock, only 1 left!

0

16

Toro 80-2630

Kicker
(Superseded to 80-2630-03)

$33.99

$

In Stock, only 4 left!

0

17

Toro 92-5422

MULCHER COVER ASM

$721.99

$

Usually ships in 3-6 days

0

18

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 3 left!

0

19

Toro 32153-2

NUT-LOCK, SIDE
(Superseded to 603773)

$2.99

$

In Stock, Qty 20+

0

20

Toro 28-8010

SPRING

$24.99

$

Usually ships in 3-6 days

0

21

Toro 54-9220

DECAL-DANGER
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0

22

Toro 44-5930

Deflector Ass-y (Incl. Ref.#21)

$191.99

$

Usually ships in 3-6 days

0

23

Toro 28-7350

POST-PIVOT

$38.99

$

Usually ships in 3-6 days

0

24

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

25

Toro 66-6380

DECAL-DANGER

$8.99

$

Usually ships in 3-6 days

0

26

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

27

Toro 67-6180

STRIP-MAGNETIC

$

$

Not available

28

Toro 3290-496

NUT-RETAINER

$6.49

$

In Stock, only 3 left!

0

30

Toro 92-5419

Ring-Deck
(Superseded to 92-5419-03)

$25.99

$

Usually ships in 3-6 days

0

32

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

33

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

34

Toro 28-8130

PIN-LOCKING, CHUTE

$12.99

$

Usually ships in 3-6 days

0

35

Toro 28-8070

LANYARD

$16.99

$

Usually ships in 3-6 days

0

37

Toro 3256-49

WASHER-PLAIN

$0.99

$

In Stock, Qty 8

0

38

Toro 3290-282

RIVET-BLIND

$0.99

$

In Stock, Qty 8

0

29

Toro 92-1159

Decal-Height of Cut 2-5"
(Superseded to 92-5765)

$

$

Not available
