30133 - Toro 32" Recycler Mower Deck (SN: 020000001 - 029999999) (1992) DRIVE SPINDLE ASSEMBLY Parts Diagram

32" Recycler Mower Deck

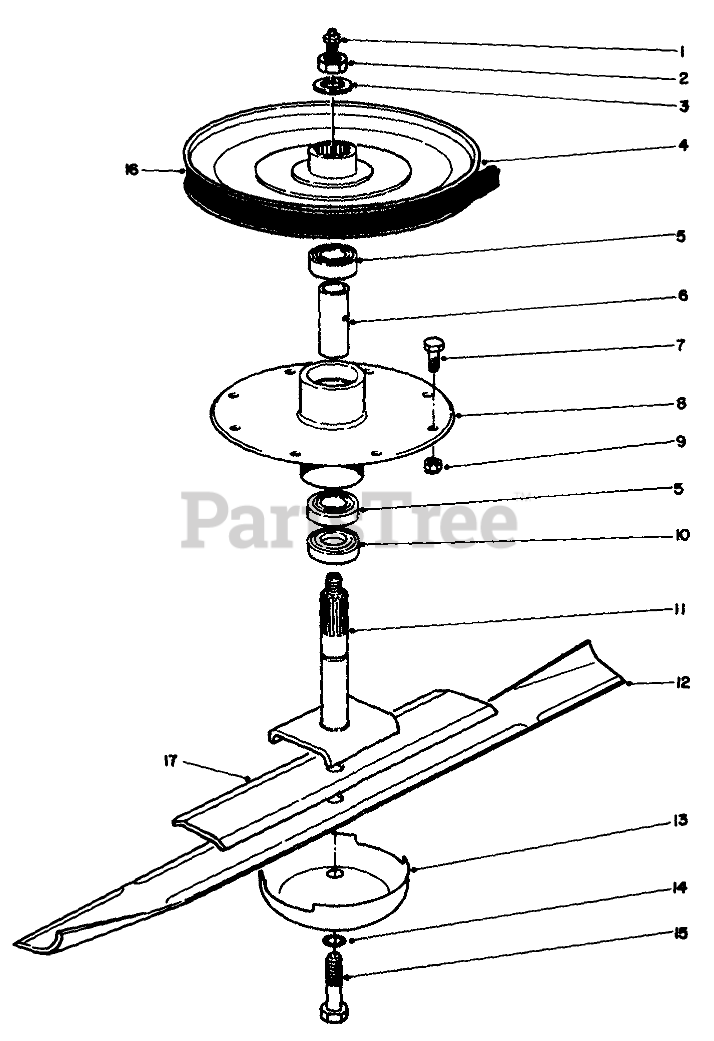

DRIVE SPINDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

2

Toro 32152-6

NUT-LOCK, CONE

$9.49

$

Usually ships in 3-6 days

0

3

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 5

0

4

Toro 74-0580

PULLEY ASM

$289.99

$

Usually ships in 3-6 days

0

5

Toro 251-257

BEARING-BALL

$15.99

$

In Stock, Qty 11

0

6

Toro 67-6070

SPACER-BEARING

$56.99

$

Usually ships in 3-6 days

0

7

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

8

Toro 67-6060

HOUSING-SPINDLE
(Superseded to 67-6060-03)

$570.99

$

Usually ships in 3-6 days

0

9

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 67-6080

SPACER

$102.99

$

Usually ships in 3-6 days

0

11

Toro 67-8040

O-Ring

$

$

Currently unavailable

12

Toro 80-4430

BLADE-RECYCLER
(Superseded to 80-4430-03)

$52.99

$

In Stock, only 1 left!

0

13

Toro 7-3522

Cup
(Superseded to 92-6313)

$53.99

$

In Stock, only 1 left!

0

14

Toro 3253-23

WASHER-LOCK/SP

$5.49

$

In Stock, only 3 left!

0

15

Toro 51-4060

SCREW-BLADE

$7.99

$

In Stock, Qty 14

0

16

Toro 67-6920

V-BELT

$67.99

$

Usually ships in 3-6 days

0

17

Toro 82-4770

BLADE SPACER ASSEMBLY

$148.99

$

Usually ships in 3-6 days

0
