30133 - Toro 32" Recycler Mower Deck (SN: 020000001 - 029999999) (1992) CARRIER FRAME ASSEMBLY Parts Diagram

32" Recycler Mower Deck

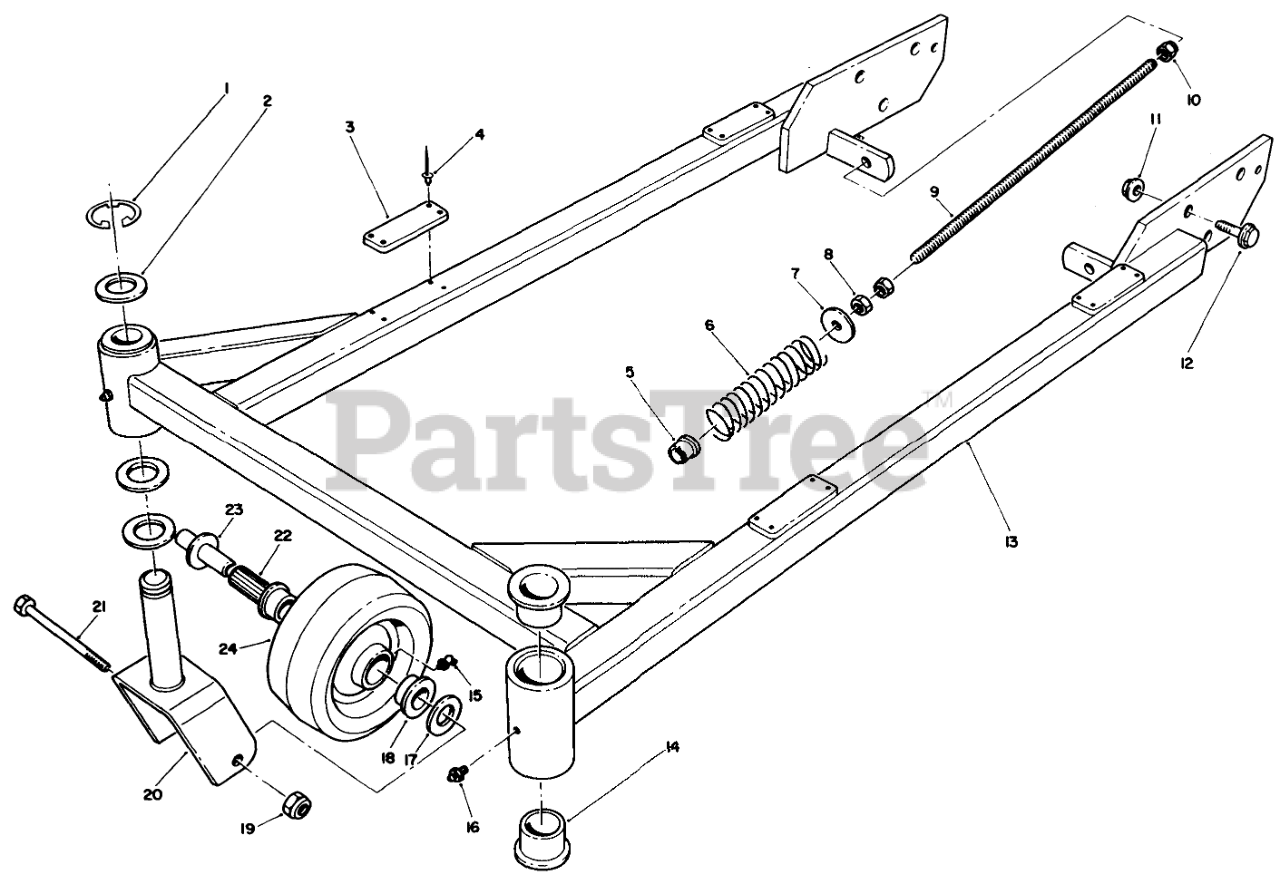

CARRIER FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 32151-91

RING-RETAINING

$2.49

$

In Stock, Qty 5

0

2

Toro 3-6781

WASHER-THRUST

$3.49

$

In Stock, Qty 7

0

3

Toro 74-0330

PAD-RUBBER

$12.99

$

Usually ships in 3-6 days

0

4

Toro 3269-24

RIVET

$2.99

$

In Stock, Qty 12

0

5

Toro 256-156

BUSHING-FLANGE

$13.99

$

In Stock, only 2 left!

0

6

Toro 74-0290

SPRING

$27.99

$

Usually ships in 3-6 days

0

7

Toro 41-8440

WASHER

$1.99

$

In Stock, only 4 left!

0

8

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

9

Toro 74-0310

SHAFT-ADJUSTING

$64.99

$

In Stock, only 2 left!

0

10

Toro 3256-45

WASHER-FLAT

$0.99

$

In Stock, only 3 left!

0

11

Toro 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0

12

Toro 3234-6

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

13

Toro 74-0080

Carrier Frame Assembly (Incl. Ref. #3, 4, 14 & 16)

$

$

Not available

14

Toro 28-9290

Bushing
(Superseded to 94-1291)

$11.99

$

In Stock, Qty 10

0

15

Toro 302-11

FITTING-LUBE, 45 DEG

$1.99

$

In Stock, only 2 left!

0

16

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

17

Toro 67-6570

SPACER-WHEEL

$19.99

$

Usually ships in 3-6 days

0

18

Toro 62-5580

BEARING-OUTSIDE

$7.49

$

In Stock, only 2 left!

0

19

Toro 32153-5

NUT-HEX

$1.99

$

In Stock, Qty 13

0

20

Toro 74-0270

Fork-Castor
(Superseded to 93-1164-01)

$236.99

$

Usually ships in 3-6 days

0

21

Toro 325-18

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

22

Toro 63-8580

BEARING-ROLLER

$15.99

$

Usually ships in 3-6 days

0

23

Toro 67-6220

SPANNER

$28.99

$

In Stock, only 1 left!

0

24

Toro 63-8400

Wheel Assembly-Castor (Incl. Ref. #15, 18, & 22)

$91.99

$

In Stock, only 4 left!

0
