30128 - Toro 44/52" Soft Bag, 5 bu. for Floating Mid-Size Mowers (SN: 250000001 - 250999999) (2005) 44IN AND 52IN SOFT BAG KIT ASSEMBLY Parts Diagram

44/52" Soft Bag, 5 bu. for Floating Mid-Size Mowers

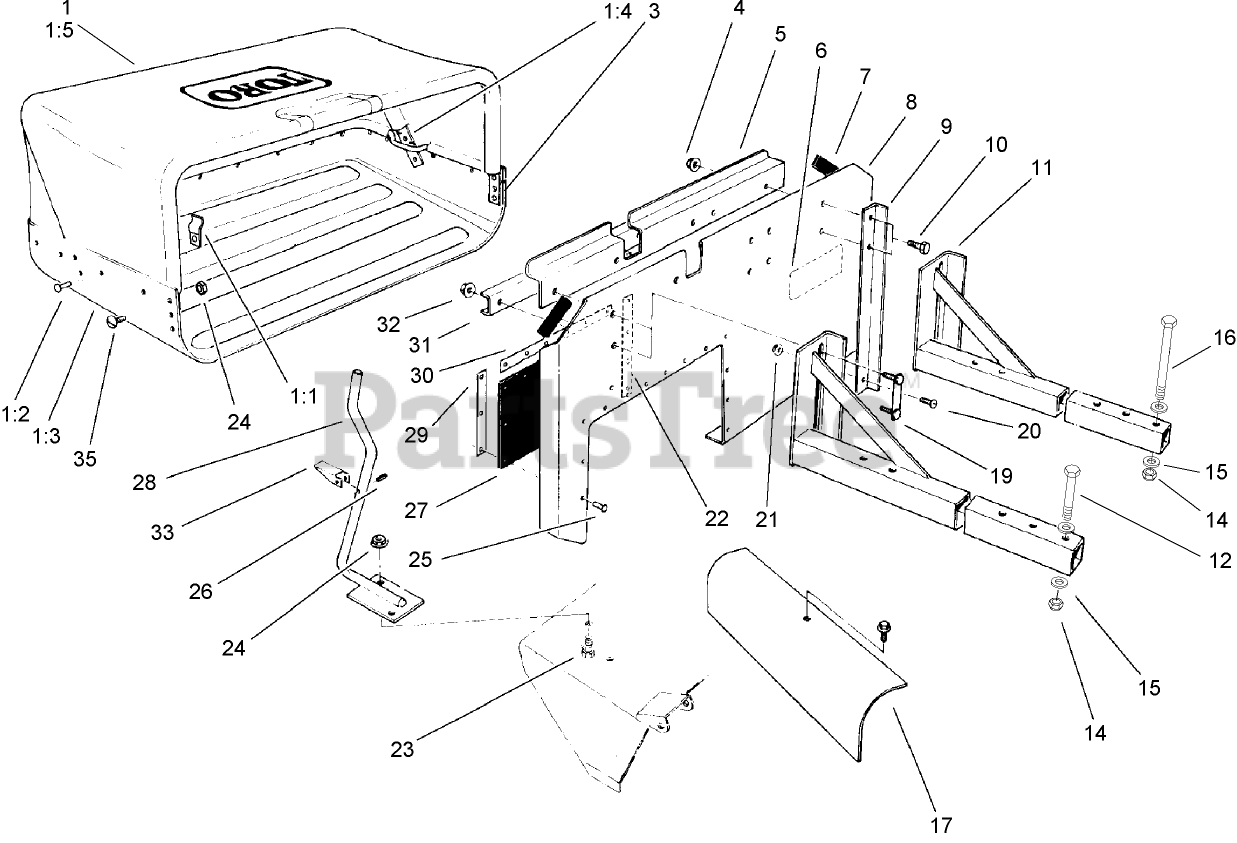

44IN AND 52IN SOFT BAG KIT ASSEMBLY Parts Diagram

  • Title
1

Toro 92-5792

BAG TRAY ASM

$

$

Not available

1:1

Toro 2412-90

CLIP-HALF

$4.49

$

Usually ships in 3-6 days

0

1:2

Toro 3290-412

RIVET-BLIND

$3.49

$

In Stock, only 4 left!

0

1:3

Toro 52-4620

TRAY-BAG, GRASS

$

$

Not available

1:4

Toro 52-5330

Rod-Cloth

$

$

Not available

1:5

Toro 92-5789

Bag-Cloth
(Superseded to 99-6433)

$

$

Not available

3

Toro 52-5270-01

TUBE-SUPPORT, BAG

$

$

Not available

4

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

5

Toro 55-9910-01

SUPPORT-ATTACHMENT, BAG

$

$

Not available

6

Toro 52-5370

DECAL-DANGER

$

$

Not available

7

Toro 52-5260

PAD-RUBBER

$18.99

$

Usually ships in 3-6 days

0

8

Toro 55-9940-01

PANEL-BACK

$

$

Not available

9

Toro 52-5320-01

SUPPORT-PANEL, LH

$

$

Not available

10

Toro 323-4

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

11

Toro 55-9760-01

MOUNT-BEAM

$

$

Not available

12

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

14

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

15

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

16

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

17

Toro 55-9930-01

BAFFLE-52IN

$

$

Not available

17

Toro 55-9931-01

BAFFLE-44IN

$

$

Not available

19

Toro 55-9780

Retainer-Bolt

$

$

Not available

20

$2.99

$

Usually ships in 3-6 days

0

21

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

22

Toro 55-9951

STRIP-Seal, 10in

$

$

Not available

23

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

24

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

25

Toro 3269-3

RIVET-POP

$0.99

$

In Stock, only 4 left!

0

26

Toro 32121-16

PIN-SPRING

$0.99

$

In Stock, Qty 8

0

27

$

$

Not available

28

Toro 52-5340-01

ROD-LOCKUP

$209.99

$

Usually ships in 3-6 days

0

29

Toro 55-9952

STRIP

$

$

Not available

30

Toro 55-9950

STRIP-SEAL, 16in

$

$

Not available

31

Toro 55-9790-01

SUPPORT-CHANNEL

$

$

Not available

32

Toro 32128-29

NUT-LOCK, FLANGE

$2.49

$

Usually ships in 3-6 days

0

33

Toro 52-5300

LATCH-LOCKUP

$

$

Not available

35

Toro 32122-14

SCREW-PPH

$2.49

$

In Stock, Qty 16

0
