30127BE (81930) - Snapper 30" Rear-Engine Riding Mower, 12hp Fuel Tank & Operator's Seat Parts Diagram

30" Rear-Engine Riding Mower, 12hp

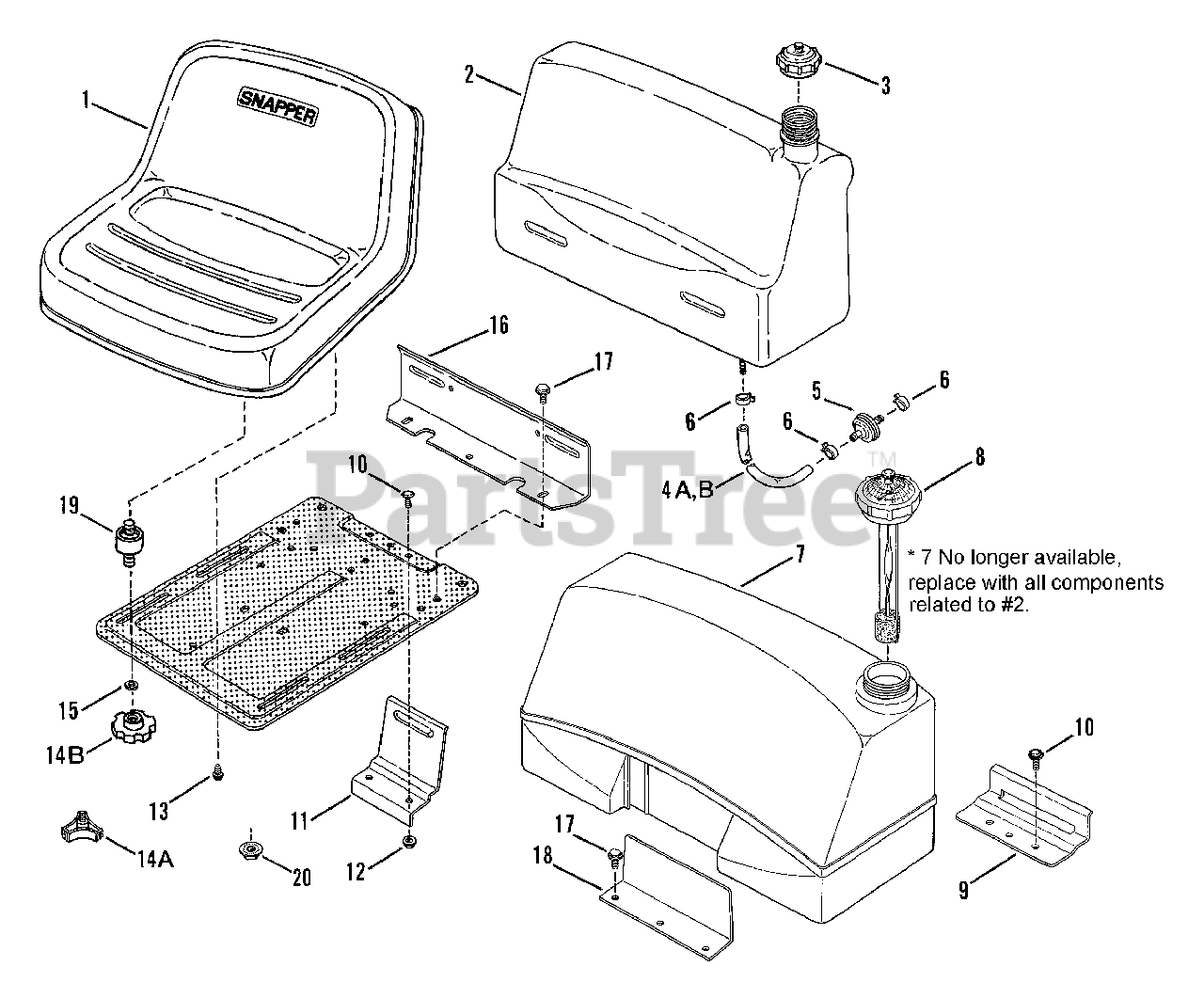

Fuel Tank & Operator's Seat Parts Diagram

  • Title

1

Snapper 7028650

SEAT, Operator
(Superseded to 7028650YP)

Note: Was 16082

$262.99

$

Usually ships in 2-12 days

0

2

Snapper 7051905

ASSEMBLY, Fuel Tank (6.5 & 8 HP Models)
(Superseded to 7051905YP)

Note: (Includes item 3)

$201.99

$

In Stock, only 2 left!

0

3

Snapper 7012515

CAP, Fuel Tank
(Superseded to 7012515YP)

$19.99

$

In Stock, only 3 left!

0

4A

Snapper 7032015

HOSE, Fuel, 7" (6.5,8, & 12 HP B&S Engine)
(Superseded to 791766)

$7.99

$

In Stock, Qty 20+

0

4B

Snapper 7012638

HOSE, Fuel, 12-1/2" (14 HP B&S Engine)
(Superseded to 791766)

Note: Was 12912

$7.99

$

In Stock, Qty 20+

0

5

Snapper 7014359

FILTER, Fuel, In-Line
(Superseded to 394358S)

$5.99

$

In Stock, Qty 20+

0

6

Snapper 7029900

CLAMP, Fuel Line
(Superseded to 791850)

Note: Was 12222

$3.49

$

In Stock, Qty 20+

0

7

Snapper 7051905

ASSEMBLY, Fuel Tank (12 & 14 HP Models)
(Superseded to 7051905YP)

Note: Was 51863 (Now 51905 + 33101 + 38471)

$201.99

$

In Stock, only 2 left!

0

8

Snapper 7019377

CAP & GAUGE, Fuel Tank
(Superseded to 7019377YP)

Note: Was 23825

$34.99

$

Usually ships in 2-12 days

0

9

Snapper 7038481

BRACKET, Fuel Tank, Rear (12 & 14 HP Models)
(Superseded to 7038481YP)

$38.99

$

Usually ships in 2-12 days

0

10

Snapper 7090799

BOLT, 5/16-18x5/8" Short Neck Carriage
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

11

Snapper 7038471

BRACKET, Fuel Tank, Rear (6.5 & 8 HP Models)
(Superseded to 7038471YP)

$23.99

$

In Stock, only 1 left!

0

12

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

13

Snapper 7091038

BOLT, 5/16-18x1/2" Hex Flange Lock
(Superseded to 7091038YP)

$4.49

$

In Stock, Qty 9

0

14A

Snapper 7023191

KNOB, Seat Adjusting (8, 12 & 14 HP Models)
(Superseded to 7023191SM)

$6.99

$

In Stock, only 2 left!

0

14B

Snapper 7023735

KNOB, Seat Adjusting (6.5 HP Models)
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

15

Snapper 7090188

WASHER, 5/16 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

16

Snapper 7033101

BRACKET, Fuel Tank, Front (6.5 & 8 HP Models)

Note: Was 38470

$

$

Not available

17

Snapper 7090361

SCREW, 5/16-18x5/8" Self-Tapping
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

18

Snapper 7038480

BRACKET, Fuel Tank, Front (12 & 14 HP Models)

$

$

Not available

19

Snapper 7016285

MOUNT, ISO Sandwich (6.5 HP Models)

$

$

Not available

20

Snapper 7090951

NUT, 5/16-18 Hex Flange Lock
(Superseded to 704001)

$4.49

$

In Stock, Qty 13

0
