30127BE (81930) - Snapper 30" Rear-Engine Riding Mower, 12hp Drive Disc Assembly Parts Diagram

30" Rear-Engine Riding Mower, 12hp

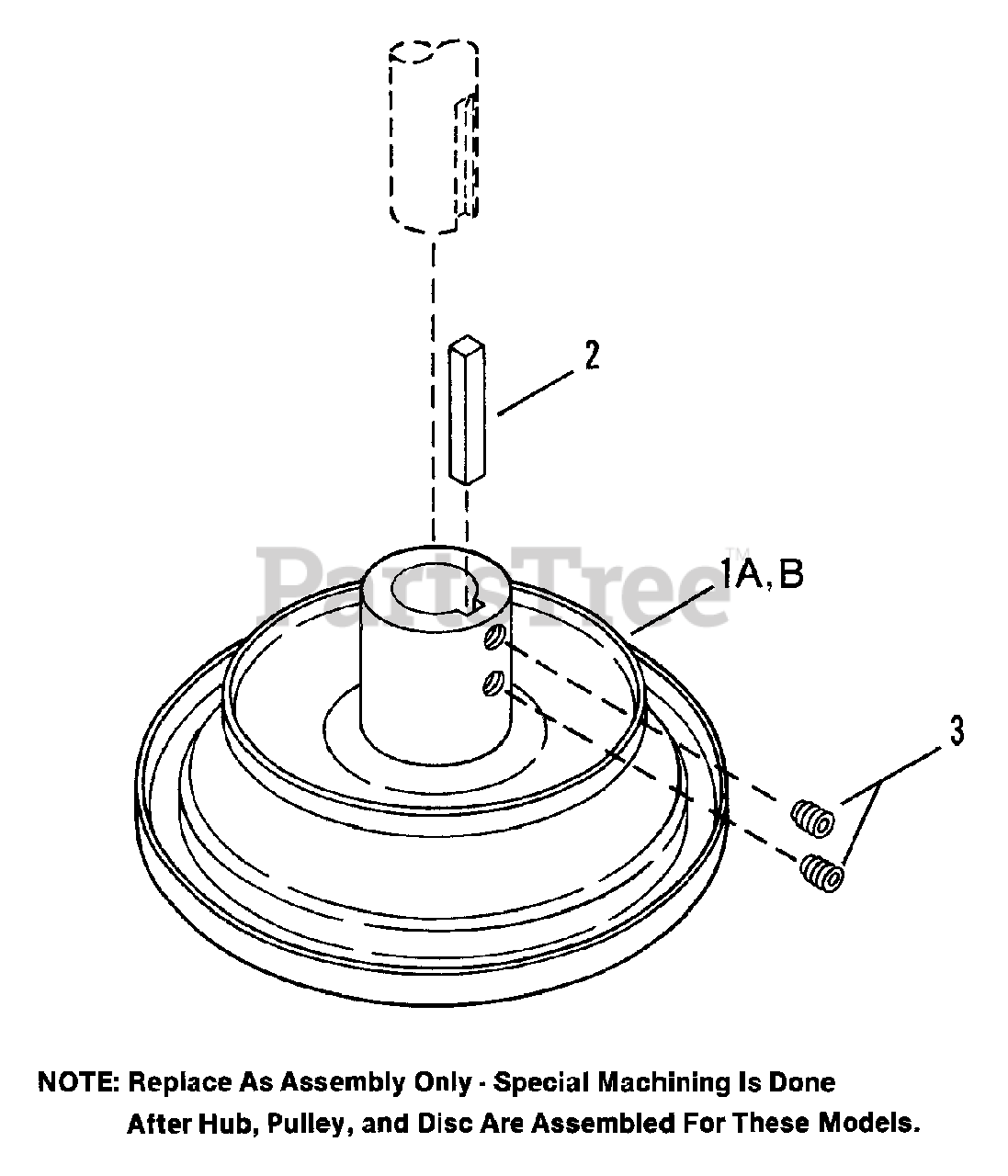

Drive Disc Assembly Parts Diagram

  • Title
1A

Snapper 7074187

ASSEMBLY, Drive Disc, 4" O.D. for 30 & 33" Models
(Superseded to 7074187YP)

Note: Was 51581, 52072, or 51502

$155.99

$

In Stock, only 3 left!

0

1B

Snapper 7072658

ASSEMBLY, Drive disc, 5" O.D. for 25,26 & 28" Models
(Superseded to 7072658YP)

Note: Was 51582, 52073, or 51503

$125.99

$

In Stock, only 2 left!

0

2

Snapper 7010210

KEY, 1/4 x 1/4 2"
(Superseded to 703890)

$4.99

$

In Stock, Qty 6

0

3

Snapper 7090132

SET-SCREW, 3/8-16 x 3/8"
(Superseded to 7090132YP)

$3.49

$

In Stock, only 2 left!

0
