30127 - Toro 52" Soft Bag, 5 bu. for Floating Mid-Size Mowers (SN: 005000001 - 005999999) (1985) 44" & 52" BAGGING KIT ASSEMBLY Parts Diagram

52" Soft Bag, 5 bu. for Floating Mid-Size Mowers

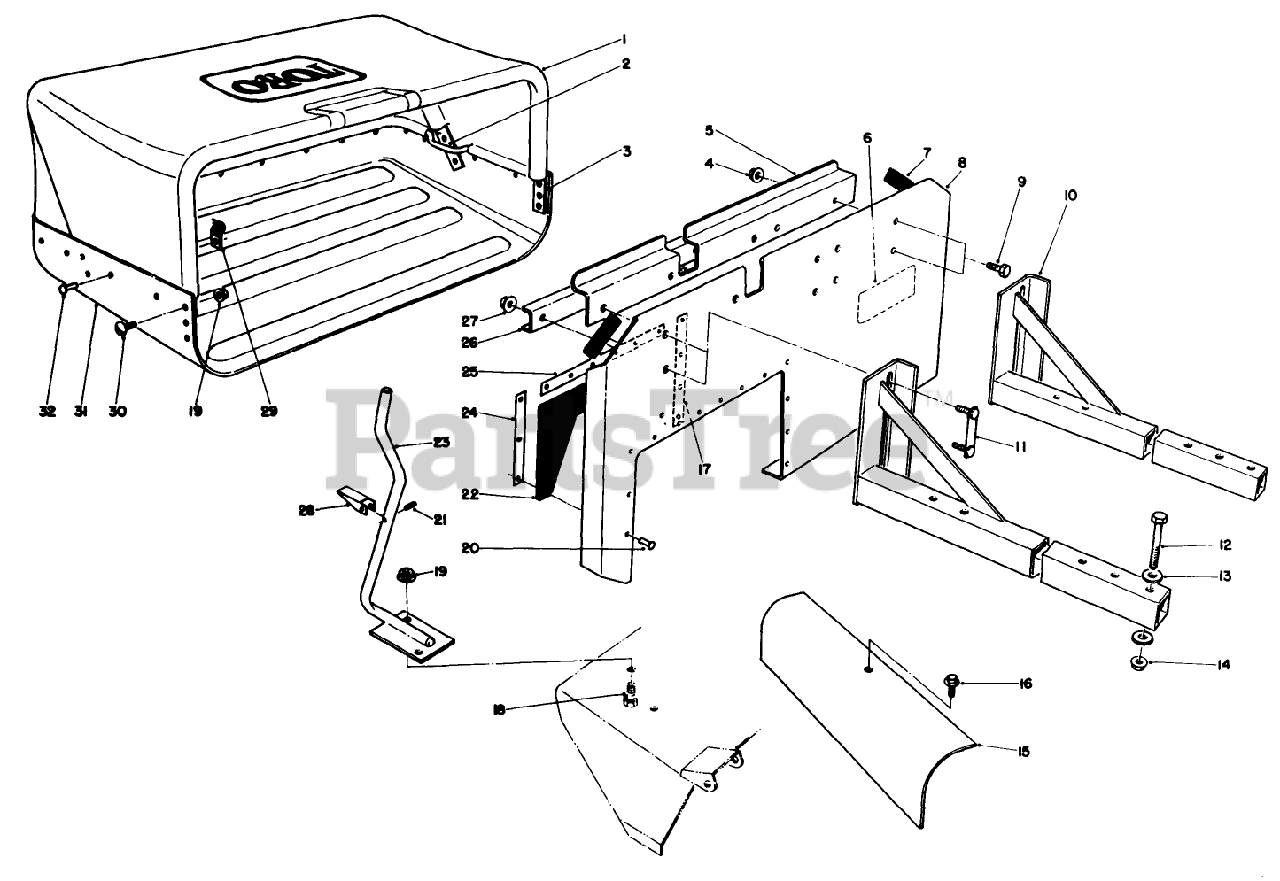

44" & 52" BAGGING KIT ASSEMBLY Parts Diagram

  • Title
1

Toro 52-5280

Bag-Cloth
(Superseded to 99-6433)

$

$

Not available

2

Toro 52-5330

Rod-Cloth

$

$

Not available

3

Toro 52-5270

Tube-Bag Support
(Superseded to 52-5270-01)

$

$

Not available

4

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

5

Toro 55-9910

Support-Bag
(Superseded to 55-9910-01)

$

$

Not available

6

Toro 52-5370

DECAL-DANGER

$

$

Not available

7

Toro 52-5260

PAD-RUBBER

$18.99

$

Usually ships in 3-6 days

0

8

Toro 55-9940

Panel-Back
(Superseded to 55-9940-01)

$

$

Not available

9

Toro 323-4

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

10

Toro 55-9760

Beam-Mounting
(Superseded to 55-9760-01)

$

$

Not available

11

Toro 55-9780

Retainer-Bolt

$

$

Not available

12

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

13

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

14

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

15

Toro 55-9931

Baffle-44in
(Superseded to 55-9931-01)

$

$

Not available

Toro 55-9930

Baffle-52in
(Superseded to 55-9930-01)

Note: Not Illustrated.

$

$

Not available

16

Toro 32140-45

Screw-HH

$

$

Not available

17

Toro 55-9951

STRIP-Seal, 10in

$

$

Not available

18

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

20

Toro 3269-3

RIVET-POP

$0.99

$

In Stock, only 4 left!

0

21

Toro 32121-16

PIN-SPRING

$0.99

$

In Stock, Qty 8

0

22

Toro 55-9961

Seal-Panel Model 30126

$

$

Not available

Toro 55-9960

Seal-Panel Model 30127

Note: Not Illustrated.

$

$

Not available

23

Toro 52-5340

Rod-Lockup
(Superseded to 52-5340-01)

$209.99

$

Usually ships in 3-6 days

0

24

Toro 55-9952

STRIP

$

$

Not available

25

Toro 55-9950

STRIP-SEAL, 16in

$

$

Not available

26

Toro 55-9790

Support-Channel
(Superseded to 55-9790-01)

$

$

Not available

27

Toro 32128-29

NUT-LOCK, FLANGE

$2.49

$

Usually ships in 3-6 days

0

28

Toro 52-5300

LATCH-LOCKUP

$

$

Not available

29

Toro 2412-90

CLIP-HALF

$4.49

$

Usually ships in 3-6 days

0

30

Toro 32122-14

SCREW-PPH

$2.49

$

In Stock, Qty 16

0

31

Toro 52-4620

TRAY-BAG, GRASS

$

$

Not available

32

Toro 3290-412

RIVET-BLIND

$3.49

$

In Stock, only 4 left!

0

Toro 55-4940

Blade
(Superseded to 55-4940-03)

Note: Not Illustrated.

$38.99

$

In Stock, only 1 left!

0

Toro 55-4210

BLADE-18 INCH

Note: Not Illustrated.

$

$

Not available
