3012523BVE (7085623) - Snapper 30" Rear-Engine Riding Mower, 12.5hp Wiring Schematic (10, 11 & 12.5HP Briggs) Parts Diagram

30" Rear-Engine Riding Mower, 12.5hp

Wiring Schematic (10, 11 & 12.5HP Briggs) Parts Diagram

  • Title

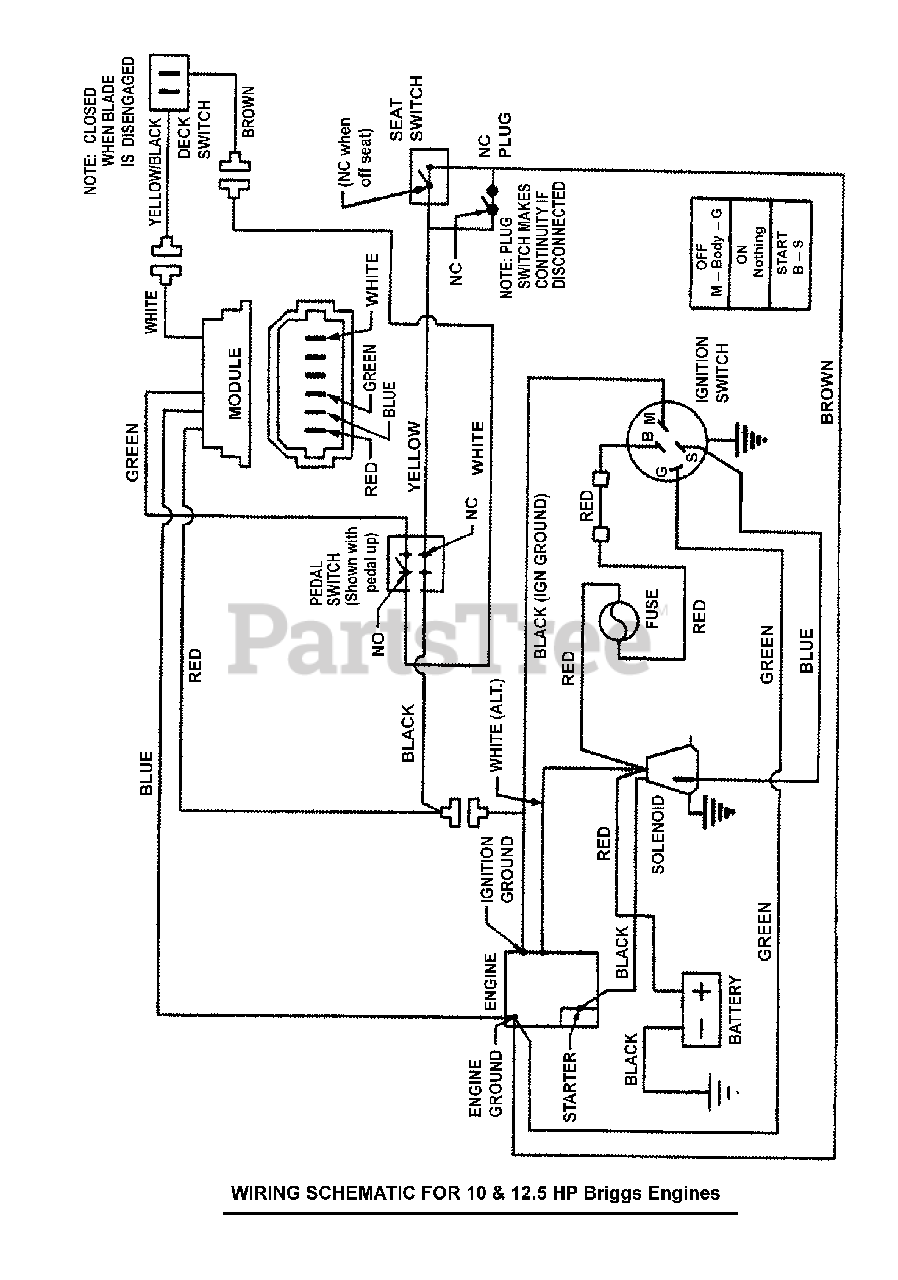

Wiring Schematic incl. harness #'s 7022788, 7073715 & 7028607

$

$
