30125 - Toro 36" Soft Bag, 5 bu. for Floating Mid-Size Mowers (SN: 006000001 - 006999999) (1986) 52" CUTTING DECK MODEL NO. 30152 Parts Diagram

36" Soft Bag, 5 bu. for Floating Mid-Size Mowers

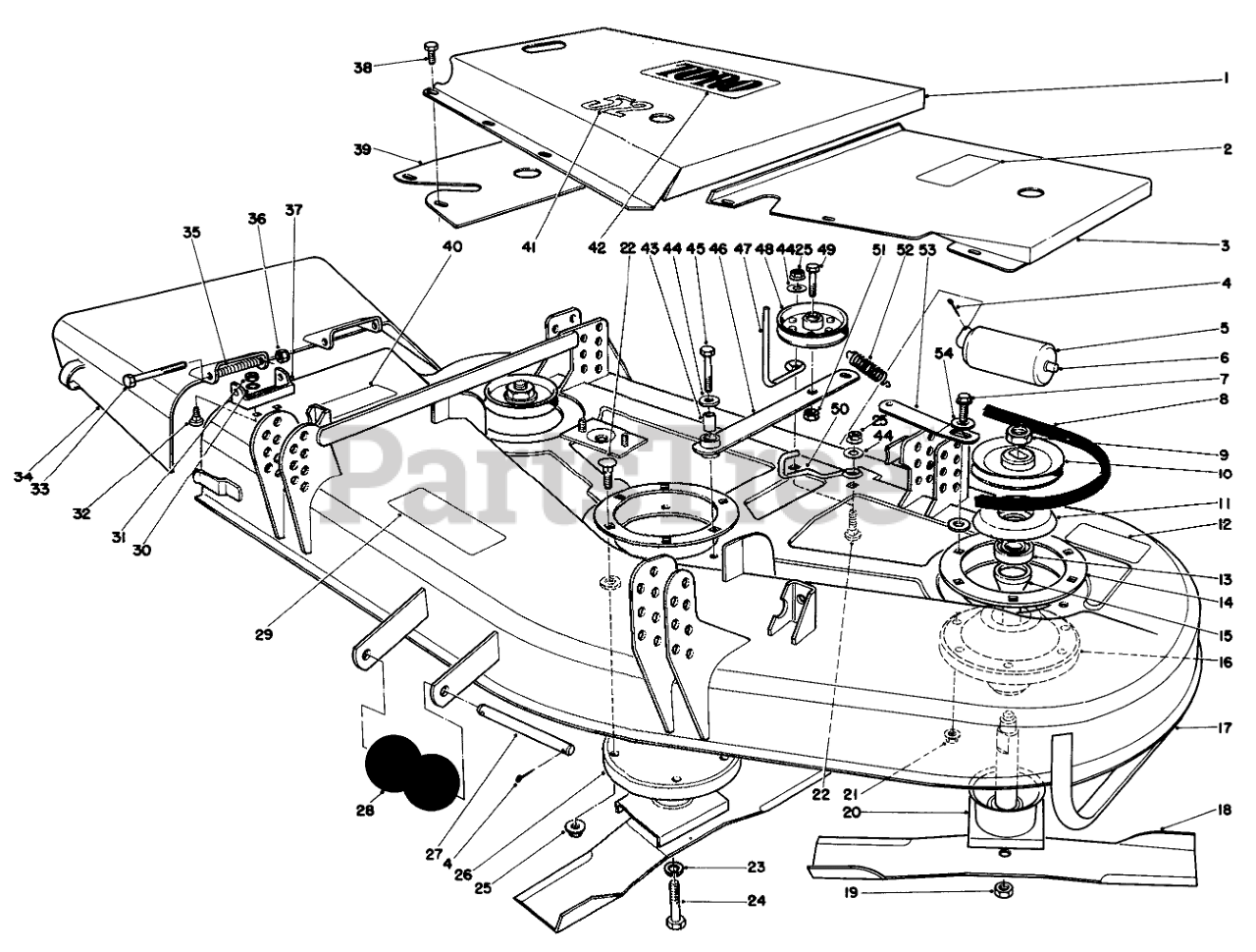

52" CUTTING DECK MODEL NO. 30152 Parts Diagram

  • Title

1

Toro 51-3930

CENTER COVER WA 52 R

$353.99

$

Usually ships in 3-6 days

0

2

Toro 42-6860

DECAL

$

$

Not available

3

Toro 51-3910

Cover
(Superseded to 51-3910-01)

$

$

Not available

4

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

5

Toro 36-1740

ROLLER-DECK

$45.99

$

In Stock, only 3 left!

0

6

Toro 40-0340

SHAFT-ROLLER, REAR

$30.99

$

In Stock, only 1 left!

0

7

Toro 3234-17

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

8

Toro 27-1160

V-BELT

$63.99

$

In Stock, only 1 left!

0

9

Toro 32146-19

Locknut
(Superseded to 3296-41)

$6.49

$

In Stock, Qty 9

0

10

Toro 51-3520

PULLEY and HUB ASM

$

$

Not available

11

Toro 39-7690

COVER-DUST

$

$

Not available

12

Toro 26-7970

DECAL-CAUTION, BLADE

$

$

Not available

13

Toro 40-6340

BEARING

$117.99

$

In Stock, only 2 left!

0

14

Toro 27-7680

SUPPORT-DECK, RING
(Superseded to 27-7680-03)

$86.99

$

Usually ships in 3-6 days

0

15

Toro 40-6320

SPACER-GREASE SHIELD

$32.61

$

In Stock, only 2 left!

0

16

Toro 51-3510

Spindle ASM
(Superseded to 325-33)

$13.99

$

In Stock, only 4 left!

0

17

Toro 51-3850

Deck Assembly

$

$

Not available

18

Toro 40-3760

Blade
(Superseded to 40-3760-03)

$31.99

$

Usually ships in 3-6 days

0

19

Toro 32146-19

Locknut
(Superseded to 3296-41)

$6.49

$

In Stock, Qty 9

0

20

Toro 40-6310

SHAFT and SADDLE ASM

$

$

Not available

21

Toro 32128-12

NUT-LOCK, FLANGE

$1.99

$

Usually ships in 3-6 days

0

22

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

23

Toro 3253-23

WASHER-LOCK/SP

$5.49

$

In Stock, only 3 left!

0

24

Toro 51-4060

SCREW-BLADE

$7.99

$

In Stock, Qty 14

0

25

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

26

Toro 54-7780

SPINDLE ASM

$

$

Not available

27

Toro 40-6400

SHAFT-ROLLER

$39.99

$

In Stock, Qty 5

0

28

Toro 29-4820

ROLLER

$18.99

$

In Stock, only 2 left!

0

29

Toro 26-7960

Decal-Caution
(Superseded to 68-7280)

$13.99

$

Usually ships in 3-6 days

0

30

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

31

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

32

Toro 3230-20

SCREW-CARR
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

33

Toro 3211-15

SCREW-HH

$9.49

$

Usually ships in 3-6 days

0

34

Toro 40-6200

Deflector
(Superseded to 13-3949)

$

$

Not available

35

Toro 40-6230

SPRING

$39.99

$

Usually ships in 3-6 days

0

36

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

37

Toro 29-5590

Bracket-Pivot
(Superseded to 29-5590-03)

$

$

Not available

38

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, only 4 left!

0

39

Toro 51-3890

Cover
(Superseded to 51-3890-01)

$

$

Not available

40

Toro 26-7980

DECAL-CAUTION, DEFLECTOR

$

$

Not available

41

Toro 51-3960

DECAL

$27.99

$

Usually ships in 3-6 days

0

42

Toro 43-5120

Decal-Toro
(Superseded to 62-7400)

$26.99

$

Usually ships in 3-6 days

0

43

Toro 51-3640

SLEEVE

$16.99

$

In Stock, only 1 left!

0

44

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

45

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

46

Toro 51-3610

ARM-IDLER, DECK

$

$

Not available

47

Toro 52-4780

ROD-BELT

$14.99

$

In Stock, only 2 left!

0

48

Toro 52-4580

Pulley
(Superseded to 99-5678)

$65.99

$

Usually ships in 3-6 days

0

49

Toro 3211-8

SCREW-HH

$4.49

$

In Stock, Qty 9

0

50

Toro 52-4770

BELT GUIDE

$

$

Not available

51

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

52

Toro 51-3650

SPRING-EXTENSION

$23.99

$

In Stock, Qty 5

0

53

Toro 51-3870

Plate-Spring Support
(Superseded to 55-7650)

$24.99

$

In Stock, Qty 9

0

54

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
