30125 - Toro 36" Soft Bag, 5 bu. for Floating Mid-Size Mowers (SN: 006000001 - 006999999) (1986) 44" CUTTING DECK MODEL NO. 30144 Parts Diagram

36" Soft Bag, 5 bu. for Floating Mid-Size Mowers

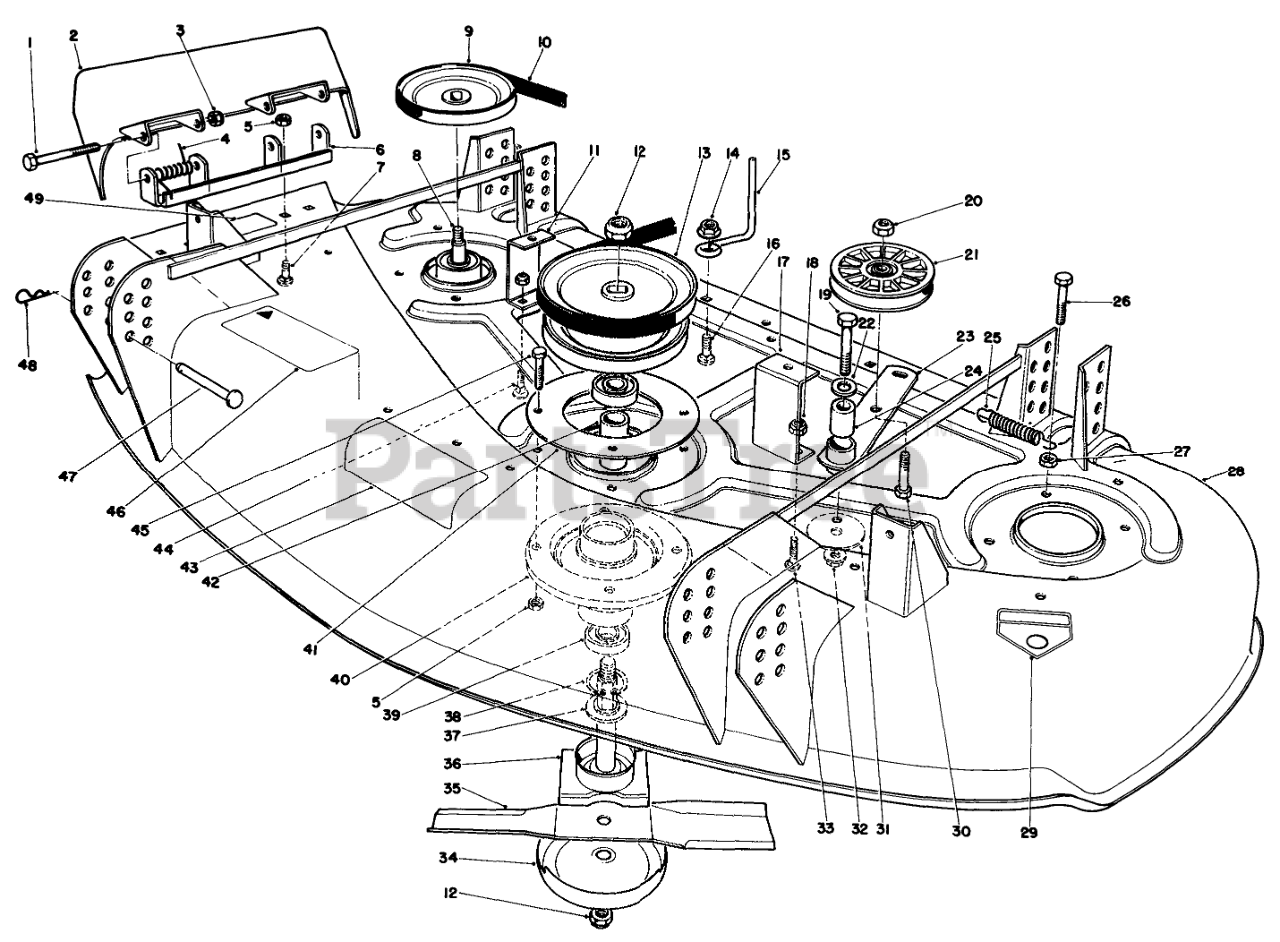

44" CUTTING DECK MODEL NO. 30144 Parts Diagram

  • Title

1

Toro 3211-15

SCREW-HH

$9.49

$

Usually ships in 3-6 days

0

2

Toro 54-2660

GRASS DEFLECTOR WA R

$

$

Not available

3

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

4

Toro 40-6230

SPRING

$39.99

$

Usually ships in 3-6 days

0

5

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

6

Toro 55-8320

PIVOT BRKT WA R/B

$

$

Not available

7

Toro 3230-20

SCREW-CARR
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

8

Toro 47-0091

SPINDLE SHAFT WA

$

$

Not available

9

Toro 54-2370

Pulley-Spindle
(Superseded to 55-7690)

$

$

Not available

10

Toro 27-1160

V-BELT

$63.99

$

In Stock, only 1 left!

0

11

Toro 54-3230

Bracket-Cover RH
(Superseded to 54-3230-03)

$

$

Not available

12

Toro 17-0980

Nut

$11.99

$

In Stock, only 4 left!

0

13

Toro 54-2890

PULLEY WA

$212.99

$

In Stock, only 1 left!

0

14

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

15

Toro 52-4780

ROD-BELT

$14.99

$

In Stock, only 2 left!

0

16

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

17

Toro 54-3240

Bracket-Cover
(Superseded to 54-3240-03)

$

$

Not available

18

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

19

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

20

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

21

Toro 52-4580

Pulley
(Superseded to 99-5678)

$65.99

$

Usually ships in 3-6 days

0

22

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

23

Toro 54-2710

Idler Arm
(Superseded to 14-8649)

$131.99

$

Usually ships in 3-6 days

0

24

Toro 51-3640

SLEEVE

$16.99

$

In Stock, only 1 left!

0

25

Toro 54-2730

Spring-Extension

$22.99

$

In Stock, only 2 left!

0

26

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

27

Toro 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

28

Toro 54-2900

Housing
(Superseded to 94-5836)

$

$

Not available

29

Toro 43-8480

DECAL-DANGER

$6.99

$

In Stock, Qty 6

0

30

Toro 3211-8

SCREW-HH

$4.49

$

In Stock, Qty 9

0

31

Toro 20-9530

WASHER-END

$37.99

$

Usually ships in 3-6 days

0

32

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

33

Toro 3229-3

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0

34

Toro 7-3522

Cup
(Superseded to 92-6313)

$53.99

$

In Stock, only 1 left!

0

35

Toro 54-0010

Blade
(Superseded to 54-0010-03)

$33.99

$

In Stock, only 3 left!

0

36

Toro 47-0092

W.A.-SPINDLE SHAFT

$

$

Not available

37

Toro 47-0100

Spacer-Bearing
(Superseded to 83-7020)

$28.99

$

In Stock, only 1 left!

0

38

Toro 32120-11

RING-RETAINING
(Superseded to 32151-75)

$3.49

$

In Stock, Qty 19

0

39

Toro 251-297

BEARING-BALL

$19.99

$

In Stock, only 2 left!

0

40

Toro 54-0160

Spindle Tube

$

$

Not available

41

Toro 55-8280

DECK RING
(Superseded to 55-8280-01)

$

$

Not available

42

Toro 54-0210

BEARING SPACER
(Superseded to 55-7680)

$

$

Not available

43

Toro 42-6860

DECAL

$

$

Not available

44

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

45

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

46

Toro 42-6430

CAUTION DECAL

$

$

Not available

47

Toro 283-55

PIN-CLEVIS

$11.99

$

In Stock, Qty 5

0

48

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

49

Toro 26-7970

DECAL-CAUTION, BLADE

$

$

Not available
