30125 - Toro 36" Soft Bag, 5 bu. for Floating Mid-Size Mowers (SN: 005000001 - 005999999) (1985) CRANKCASE & FLYWHEEL ASSEMBLY Parts Diagram

36" Soft Bag, 5 bu. for Floating Mid-Size Mowers

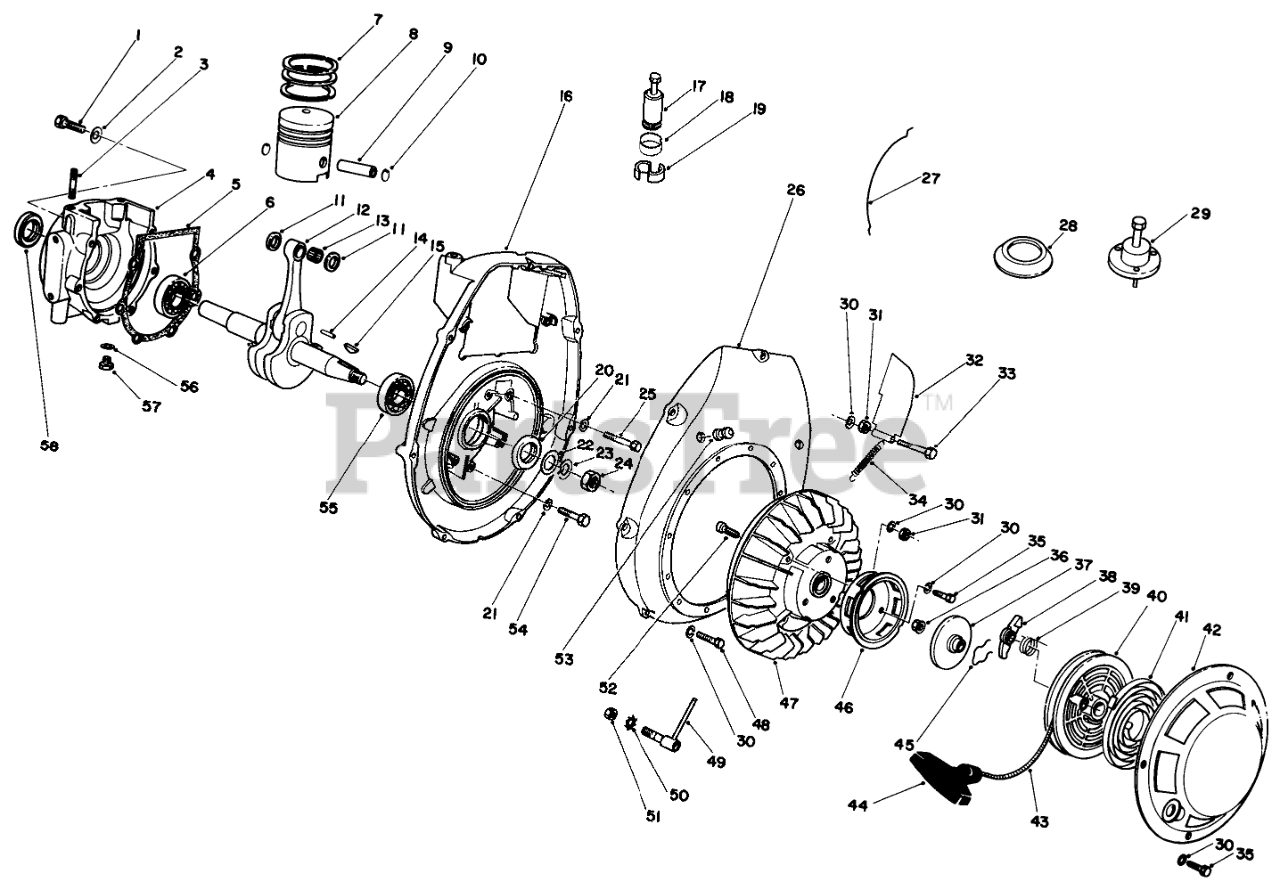

CRANKCASE & FLYWHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 55-5110

Screw-Hex Head

$

$

Not available

2

Toro 55-5120

Washer

$

$

Not available

3

Toro 55-5020

Stud

$

$

Not available

4

Toro 55-5010

Crankcase-PTO Side

$

$

Not available

5

Toro 55-5080

CRANKCASE GASKET

$

$

Not available

6

Toro 55-5160

Ball Bearing

$

$

Not available

7

Toro 55-5240

Piston Rings

$

$

Not available

Toro 55-6470

Piston Rings

Note: Not Illustrated.

$

$

Not available

Toro 55-6480

Piston Rings

Note: Not Illustrated.

$

$

Not available

8

Toro 55-5230

Pistons

$

$

Not available

Toro 55-6450

Pistons

Note: Not Illustrated.

$

$

Not available

Toro 55-6460

Pistons

Note: Not Illustrated.

$

$

Not available

9

Toro 55-5250

Wrist Pin

$

$

Not available

10

Toro 55-5260

Locking Ring

$

$

Not available

11

Toro 55-5210

Washer

$

$

Not available

12

Toro 55-5130

Crankshaft Assembly

$

$

Not available

13

Toro 55-5180

Bearing-Needle
(Superseded to 72-3020)

$

$

Not available

14

Toro 55-5200

Needle

$

$

Not available

15

Toro 55-5190

Key-Woodruff

$

$

Not available

16

Toro 55-5000

Crankcase Starter Side

$

$

Not available

17

Toro 55-6070

Extractor

$

$

Not available

18

Toro 55-6090

Retaining Ring

$

$

Not available

19

Toro 55-6080

Half Bushes (Pair)

$

$

Not available

20

Toro 55-5100

Oil Seal

$

$

Not available

21

Toro 55-5070

Lockwasher

$

$

Not available

22

Toro 55-5220

Washer

$

$

Not available

23

Toro 55-5150

Washer

$

$

Not available

24

Toro 55-5140

Nut

$

$

Not available

25

Toro 55-5050

Screw-Hex Head

$

$

Not available

26

Toro 55-5710

Cover-Fan

$

$

Not available

27

Toro 55-5800

Control Cable

$

$

Not available

28

Toro 55-6110

Meter-Revolution Frequency

$

$

Not available

29

Toro 55-6100

Puller

$

$

Not available

30

Toro 55-5400

Lockwasher

$

$

Not available

31

Toro 55-5740

Nut

$

$

Not available

32

Toro 55-5750

Air Vane

$

$

Not available

33

Toro 55-5320

Screw-Hex Head

$

$

Not available

34

Toro 55-5780

Spring

$

$

Not available

35

Toro 55-5920

Screw-Hex Head

$

$

Not available

36

Toro 55-5890

Nut

$

$

Not available

37

Toro 55-5880

Brake-Disc

$

$

Not available

38

Toro 55-5840

Pawl

$

$

Not available

39

Toro 55-5870

Spring

$

$

Not available

40

Toro 55-5830

Pulley-Rope

$

$

Not available

41

Toro 55-5850

Recoil Spring

$

$

Not available

42

Toro 55-5820

Housing-Starter

$

$

Not available

43

Toro 55-5900

Rope (Incl. Ref. #44)

$

$

Not available

44

Handle

$

$

Not available

45

Toro 55-5860

SPRING

$

$

Not available

46

Toro 55-5910

Carrier

$

$

Not available

47

Toro 55-5700

Fan Wheel

$

$

Not available

48

Toro 55-5720

HEX HEAD SCREW

$

$

Not available

49

Toro 55-5760

LEVER

$

$

Not available

50

Toro 55-5790

Star Washer

$

$

Not available

51

Toro 55-5770

Nut

$

$

Not available

52

Toro 55-5730

Screw

$

$

Not available

53

Toro 55-6700

Plug

$

$

Not available

54

Toro 55-5060

Screw-Hex Head

$

$

Not available

55

Toro 55-5170

Ball Bearing

$

$

Not available

56

Toro 55-5040

Gasket Ring

$

$

Not available

57

Toro 55-5030

Screw-Hex Head

$

$

Not available

58

Toro 55-5090

Oil Seal

$

$

Not available

Toro 55-5810

Recoil Starter Assembly

Note: Not Illustrated.

$

$

Not available
