30125 - Toro 36" Soft Bag, 5 bu. for Floating Mid-Size Mowers (SN: 005000001 - 005999999) (1985) CARBURETOR ASSEMBLY Parts Diagram

36" Soft Bag, 5 bu. for Floating Mid-Size Mowers

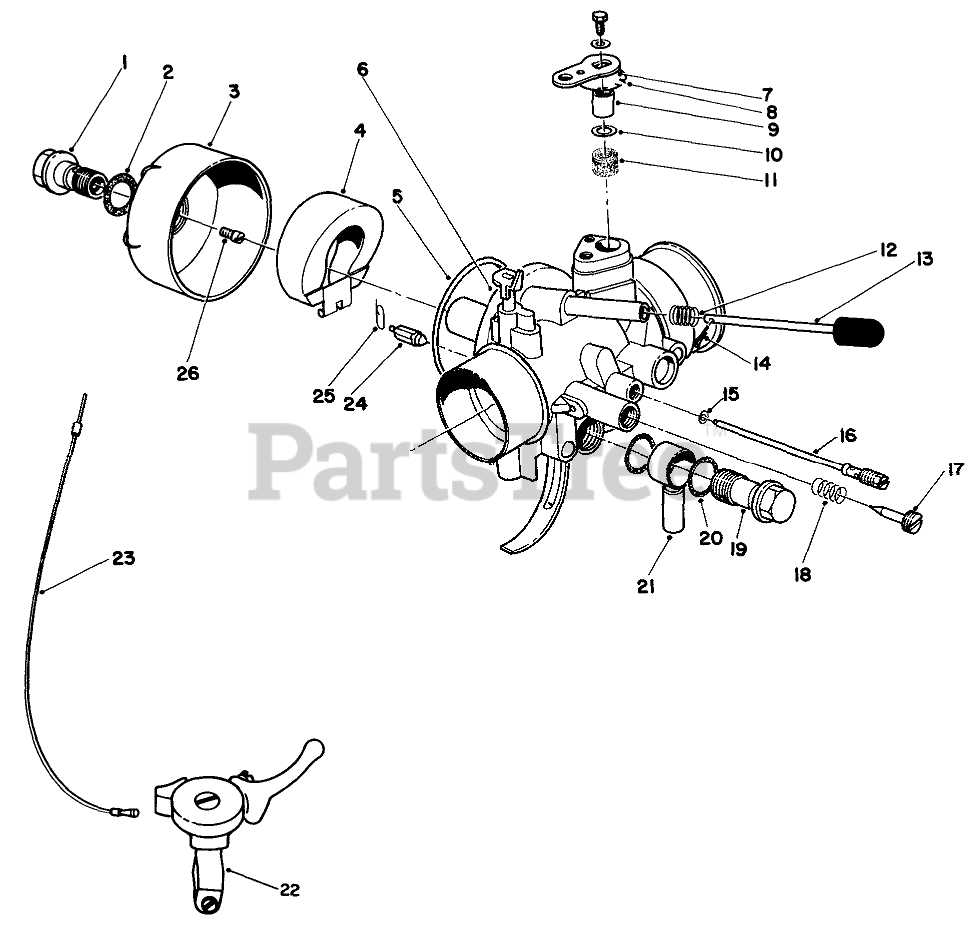

CARBURETOR ASSEMBLY Parts Diagram

  • Title

1

Toro 55-5600

Jet

$

$

Not available

2

Toro 55-5590

GASKET RING

$

$

Not available

3

Toro 55-5960

Chamber-Float

$

$

Not available

4

Toro 55-5580

Float

$

$

Not available

5

Toro 55-5560

Gasket Ring

$

$

Not available

6

Toro 55-5470

Carburetor Assy.-Complete

$

$

Not available

7

Toro 55-5630

Lever-Butterfly

$

$

Not available

8

Toro 55-5540

Hair Pin Spring

$

$

Not available

9

Toro 55-5490

Spacer-Tube

$

$

Not available

10

Toro 55-5500

Gasket Ring

$

$

Not available

11

Toro 55-5510

Sleeve

$

$

Not available

12

Toro 55-5670

Spring

$

$

Not available

13

Toro 55-5650

Tickler

$

$

Not available

14

Toro 55-5680

Split Pin

$

$

Not available

15

Toro 55-5570

GASKET RING

$

$

Not available

16

Toro 55-5610

Idling Jet

$

$

Not available

17

Toro 55-5480

Screw

$

$

Not available

18

Toro 55-5660

Spring

$

$

Not available

19

Toro 55-5520

JET RETAINER

$

$

Not available

20

Toro 55-5530

Gasket Ring

$

$

Not available

21

Toro 55-5690

Banjo Connection

$

$

Not available

22

Toro 55-6050

Lever-Gas

$

$

Not available

23

Toro 55-6060

Bowden Cable

$

$

Not available

24

Toro 55-5550

FLOAT NEEDLE

$53.99

$

Usually ships in 3-6 days

0

25

Toro 55-5640

RETAINER

$

$

Not available

26

Toro 55-5620

Main Jet

$

$

Not available
