30123 - Toro Deluxe Sulky (SN: 099000001 - 099999999) (1999) FRAME AND HITCH ASSEMBLY Parts Diagram

Deluxe Sulky

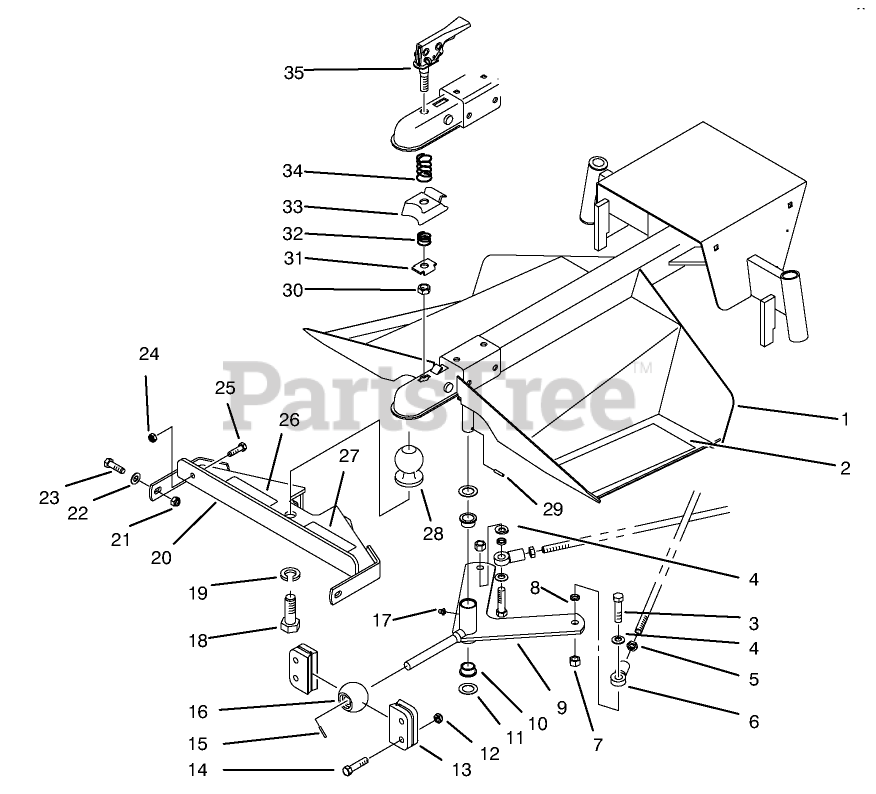

FRAME AND HITCH ASSEMBLY Parts Diagram

  • Title
1

Toro 82-7050

FRAME WA

$

$

Not available

2

Toro 82-7420

FOOTREST TREAD

$

$

Not available

3

Toro 324-7

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

4

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

5

$

$

Not available

6

Toro 251-304

BALL JOINT LH

$89.99

$

Usually ships in 3-6 days

0

7

Toro 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

8

Toro 62-4420

WASHER

$8.49

$

Usually ships in 3-6 days

0

9

Toro 82-7350

FRT PIVOT WA/SULKY

$263.99

$

Usually ships in 3-6 days

0

10

Toro 27-9080

BEARING-FLANGE

$3.99

$

In Stock, Qty 6

0

11

Toro 3-6498

WASHER-THRUST

$6.99

$

In Stock, Qty 15

0

12

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

13

Toro 82-7040

CHANNEL

$

$

Not available

14

Toro 3234-19

SCREW-HHF

$2.99

$

In Stock, only 2 left!

0

15

Toro 32121-116

ROLL PIN

$

$

Not available

16

Toro 82-7030

SPHERE

$54.99

$

Usually ships in 3-6 days

0

17

Toro 302-49

GREASE FITTING

$4.49

$

Usually ships in 3-6 days

0

18

Toro 328-24

SCREW-HH

$26.99

$

In Stock, only 4 left!

0

19

Toro 3253-9

WASHER-LOCK

$1.49

$

In Stock, only 3 left!

0

20

Toro 82-7170

Plate-Hitch
(Superseded to 82-7170-01)

$615.99

$

Usually ships in 3-6 days

0

21

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

22

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

23

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

24

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

25

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

26

Toro 82-7400

DECAL - CAUTION

$

$

Not available

27

Toro 82-7390

DECAL - WARNING

$

$

Not available

28

Toro 82-7300

COUPLER BALL

$137.99

$

In Stock, only 1 left!

0

29

Toro 32121-45

PIN-SPRING

$0.99

$

Usually ships in 3-6 days

0

30

Nut-Hex, Jam

$

$

Not available

31

Plate-Nut, Locking

$

$

Not available

32

Spring-Lock

$

$

Not available

33

Clamp-Ball

$

$

Not available

34

Spring-Release

$

$

Not available

35

Toro 82-7260

Assembly-Handle(Incl. Ref. #30-34)

$

$

Not available
