30123 - Toro Deluxe Sulky (SN: 020000001 - 029999999) (1992) SEAT AND WHEEL ASSEMBLY Parts Diagram

Deluxe Sulky

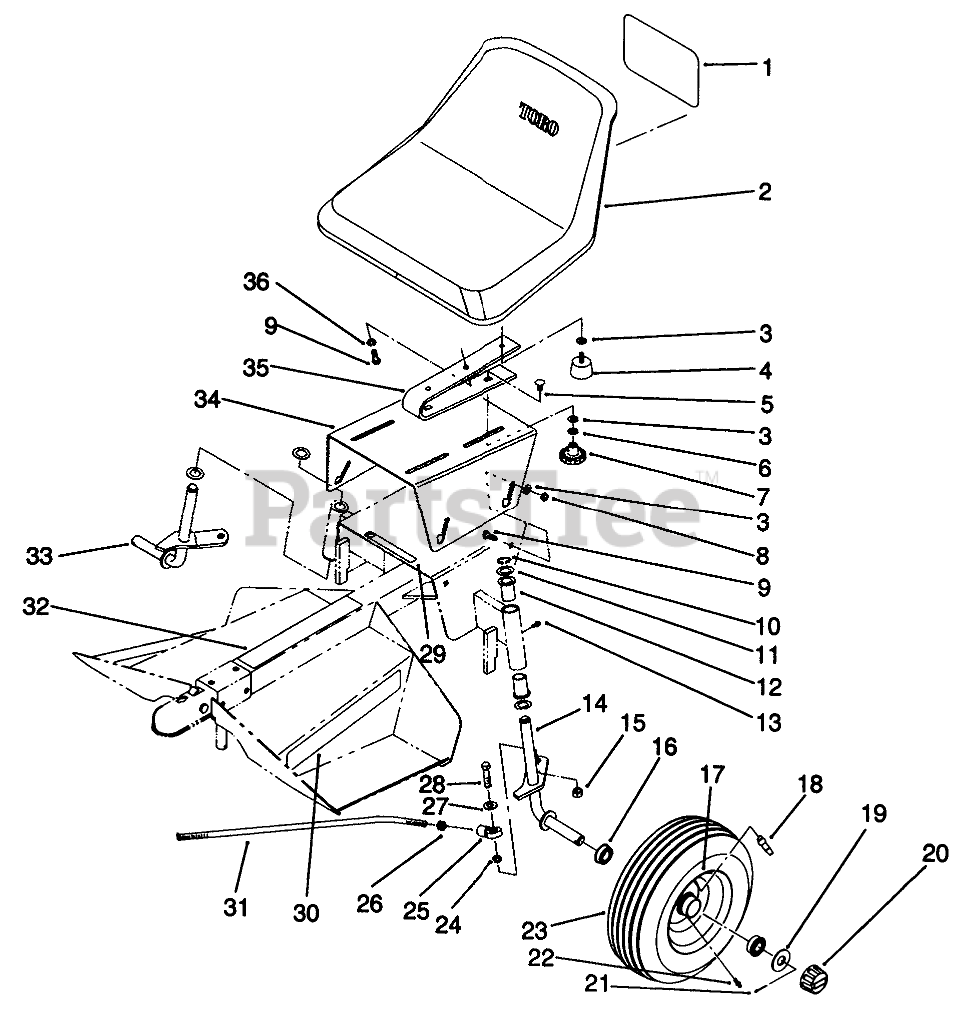

SEAT AND WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 62-7400

DECAL

$26.99

$

Usually ships in 3-6 days

0

2

Toro 76-1410

Seat
(Superseded to 108-6878)

$

$

Not available

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro 67-9800

RUBBER BUMPER
(Superseded to 68-3270)

$38.99

$

Usually ships in 3-6 days

0

5

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

6

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

7

Toro 19-4050

KNOB

$17.99

$

In Stock, only 3 left!

0

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

10

Toro 32151-48

E-RING

$1.99

$

In Stock, Qty 14

0

11

Toro 3-6498

WASHER-THRUST

$6.99

$

In Stock, Qty 15

0

12

Toro 46-6680

BUSHING PM

$24.99

$

In Stock, only 1 left!

0

13

Toro 302-49

GREASE FITTING

$3.49

$

Usually ships in 3-6 days

0

14

Toro 82-7330

Spindle -LH
(Superseded to 82-7330-01)

$136.99

$

Usually ships in 3-6 days

0

15

Toro 32152-9

NUT-HEX

$9.49

$

Usually ships in 3-6 days

0

16

Toro 251-210

Bearing
(Superseded to 110513)

$21.99

$

In Stock, only 4 left!

0

17

Toro 242-60

FRONT WHEEL
(Superseded to 115-4215)

$

$

Not available

18

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 17

0

19

Toro 28-2480

WASHER-PLAIN

$4.49

$

In Stock, Qty 6

0

20

Toro 61-9780

CAP-HUB

$7.49

$

In Stock, Qty 8

0

21

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 17

0

22

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

23

Toro 231-126

TIRE

$87.99

$

Usually ships in 3-6 days

0

24

Toro 62-4420

WASHER

$8.49

$

Usually ships in 3-6 days

0

25

Toro 251-305

BALL JOINT RH

$87.99

$

In Stock, only 2 left!

0

26

Toro 3220-4

NUT-JAM

$2.99

$

Usually ships in 3-6 days

0

27

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

28

Toro 324-7

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

29

Toro 65-3090

DECAL-INSTRUCTION

$10.99

$

Usually ships in 3-6 days

0

30

Toro 82-7410

DECAL - PROLINE

$

$

Not available

31

Toro 82-7380

STEERING ROD

$

$

Not available

32

Toro 82-7430

DECAL - WARNING

$42.99

$

Usually ships in 3-6 days

0

33

Toro 82-7310

Spindle -RH
(Superseded to 82-7310-01)

$

$

Not available

34

Toro 82-7220

Base-Seat
(Superseded to 82-7220-01)

$

$

Not available

35

Toro 68-3280

Spring Seat
(Superseded to 68-3280-01)

$100.99

$

Usually ships in 3-6 days

0

36

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0
