30117 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 010000001 - 019999999) (1991) GOVERNOR-ENGINE KOHLER MODEL NO. MV16S-TYPE 56511 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

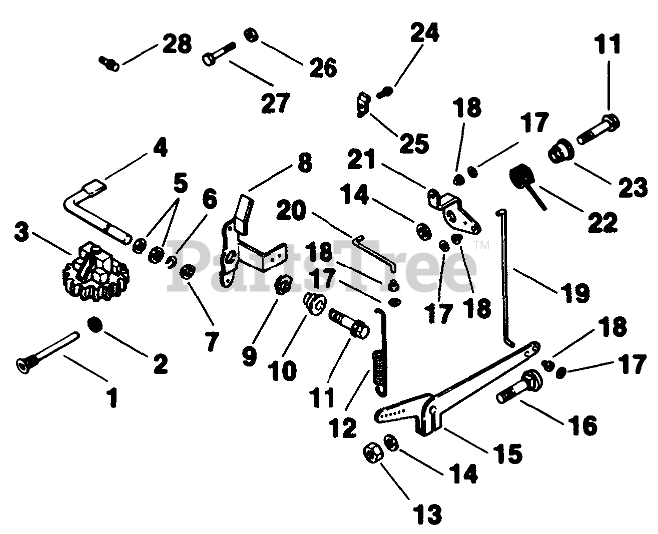

GOVERNOR-ENGINE KOHLER MODEL NO. MV16S-TYPE 56511 Parts Diagram

  • Title
1

Kohler 231355

Pin-GovemorStop
(Superseded to 231355-S)

$10.99

$

Usually ships in 2-5 days

0

2

Kohler X-25-12

Washer
(Superseded to X-25-12-S)

$3.49

$

In Stock, only 2 left!

0

3

Kohler A-235743-S

Governor Gear

$79.99

$

Usually ships in 2-5 days

0

4

Toro 52_078_04

Shaft-Govenor

$

$

Currently unavailable

5

Kohler X-25-102

Washer
(Superseded to X-25-102-S)

$2.49

$

In Stock, Qty 5

0

6

Kohler X-269-28

Retainer-Governor
(Superseded to X-269-28-S)

$3.99

$

Usually ships in 2-5 days

0

7

Kohler X-25-63

Washer
(Superseded to X-25-63-S)

$2.49

$

In Stock, only 3 left!

0

8

Toro 52_090_25

Lever-Speed Control

$

$

Currently unavailable

9

Kohler 277341

Washer
(Superseded to 277341-S)

$7.49

$

Usually ships in 2-5 days

0

10

$

$

Currently unavailable

11

25_086_21

Screw-Hex Wash. Hd.

$

$

Not available

12

52_089_07

Spring Governor

$

$

Not available

13

$

$

Currently unavailable

14

Kohler X-25-72

Washer
(Superseded to X-25-72-S)

$3.99

$

In Stock, only 1 left!

0

15

Toro 52_186_09

ARm-Governor

$

$

Currently unavailable

16

52_211_04

Screw-Round Hd.

$

$

Not available

17

$

$

Currently unavailable

18

Toro 25_58_08

Bushing-Linkage

$

$

Currently unavailable

19

Toro 52_079_07

Linkage-Governor

$

$

Currently unavailable

20

Toro 52_079_96

Linkage-Throttle

$

$

Currently unavailable

21

Toro 52_090_14

Lever-Throttle

$

$

Currently unavailable

22

Toro 52_089_08

Spring-Torsion

$

$

Currently unavailable

23

Toro 52_158_07

Bushing-Throttle Control

$

$

Currently unavailable

24

Kohler X-67-38

Screw
(Superseded to X-67-38-S)

$

$

Not available

25

$

$

Currently unavailable

26

Kohler X-70-3

Nut
(Superseded to X-70-3-S)

$3.49

$

Usually ships in 2-5 days

0

27

Toro 52_086_05

Screw-Hex Hd.

$

$

Currently unavailable

28

Toro 25_086_15

Screw-Hex Washer Hd.

$

$

Currently unavailable
