30117 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 010000001 - 019999999) (1991) CARBURETOR-ENGINE KOHLER MODEL NO. MV16S-TYPE 56511 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

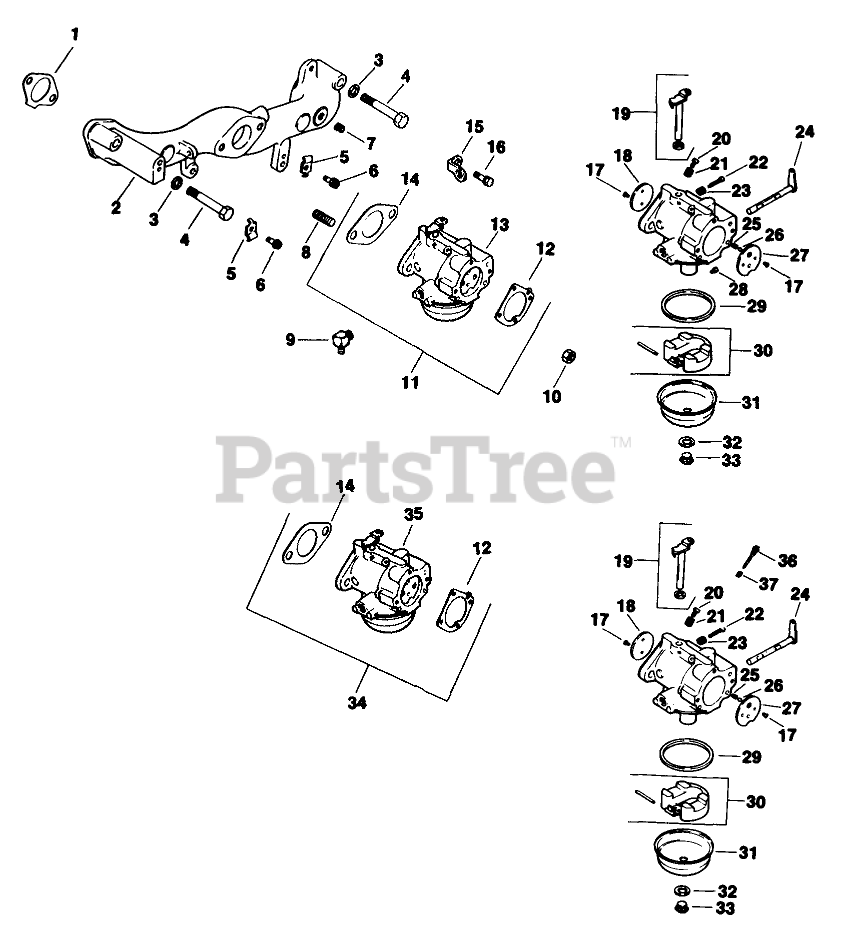

CARBURETOR-ENGINE KOHLER MODEL NO. MV16S-TYPE 56511 Parts Diagram

  • Title
1

Toro 52_041_09

Gasket-Intake

$

$

Currently unavailable

2

Toro 52_755_91

Kit-Manifold, Intake

$

$

Currently unavailable

3

Toro X-25-44

Screw

$

$

Currently unavailable

4

Toro X-25-44

Screw

$

$

Currently unavailable

5

$

$

Currently unavailable

6

Toro x-67-97

Screw

$

$

Currently unavailable

7

$

$

Currently unavailable

8

$

$

Currently unavailable

9

2515502

Connector-90deg.

$

$

Not available

10

$

$

Currently unavailable

11

Toro 52_853_09

Carburetor Kit W/Linkage (Incl. Ref. #12-13, & 16-29

$

$

Currently unavailable

12

Toro 277069

Gasket

$

$

Currently unavailable

13

Toro 52_053_34

Carburetor Assembly Ref.

$

$

Currently unavailable

14

Toro 271030

Gasket

$

$

Currently unavailable

15

Toro 232867

Strap Lifting

$

$

Currently unavailable

16

Toro X-67-62

Screw

$

$

Currently unavailable

17

Toro 25_086_27

Screw-Throttle Plate

$

$

Currently unavailable

18

25_146_02

Plate-Throttle

$

$

Not available

19

Toro 52_144_16

Shaft Assembly

$

$

Currently unavailable

20

25_368_01

Valve-Needle

$

$

Not available

21

25_089_02

Spring

$

$

Not available

22

25_086_26

Screw

$

$

Not available

23

25_089_04

Spring

$

$

Not available

24

Toro 52_090_13

Lever-Choke

$

$

Currently unavailable

25

25_089_03

Spring-Choke

$

$

Not available

26

25_194_01

Ball-Choke

$

$

Not available

27

Toro 25_146_03

Plate-Choke

$

$

Currently unavailable

28

Toro 52_337_06

Jet-Main

$

$

Currently unavailable

29

25_041_04

Bowl-Gasket

$

$

Not available

30

25_757_09

Kit-Float

$

$

Not available

31

25_104_01

Bowl

$

$

Not available

32

25_041_03

Gasket-Bowl

$

$

Not available

33

25_100_05

Screw-Bowl

$

$

Not available

Toro 25_757_08

Kit-Carburetor Repair

$

$

Currently unavailable

Toro 52_755_89

Kit-High Altitude

$

$

Currently unavailable

Toro 52_853_25

Kit-Carburetor w/Gasket

$

$

Currently unavailable

Toro 25_368_03

Needle-Main Fuel

$

$

Currently unavailable
