30117 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 010000001 - 019999999) (1991) BAFFLE & SHROUD-ENGINE KOHLER MODEL NO. MV16S-TYPE 56511 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

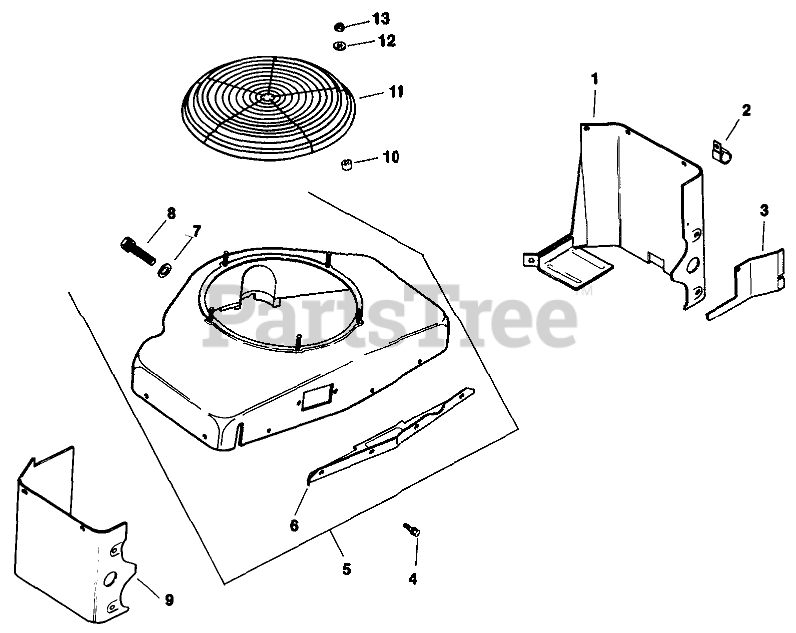

BAFFLE & SHROUD-ENGINE KOHLER MODEL NO. MV16S-TYPE 56511 Parts Diagram

  • Title
1

Toro 52_063_21

Baffle-Cylinder Head

$

$

Currently unavailable

2

$

$

Currently unavailable

3

Toro 52_063_01

Baffle-Cylinder Head

$

$

Currently unavailable

4

Kohler X-67-83

Screw
(Superseded to X-67-83-S)

$2.49

$

In Stock, only 1 left!

0

5

Toro 82_755_01

Kit-Blower Housing

$

$

Currently unavailable

6

Toro 52_217_01

Support-Upper Housing

$

$

Currently unavailable

7

$

$

Currently unavailable

8

52_086_11

Screw-H.C

$

$

Not available

9

Toro 52_124_23

Baffle-Cylinder Head

$

$

Currently unavailable

10

$

$

Currently unavailable

11

Toro 47_314_01

GuARd-Grass Screen

$

$

Currently unavailable

12

$

$

Currently unavailable

13

Kohler X-101-12

Locknut
(Superseded to X-101-12-S)

$

$

Not available
