30117 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 000000001 - 000999999) (1990) OIL PUMP-ENGINE KOHLER MODEL NO. MV16S-TYPE 56511 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

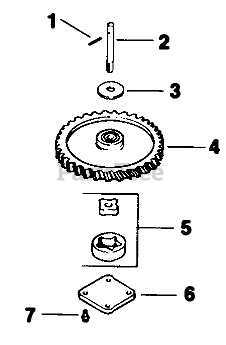

OIL PUMP-ENGINE KOHLER MODEL NO. MV16S-TYPE 56511 Parts Diagram

  • Title
1

Kohler X-280-25

Pin-Roll
(Superseded to X-280-25-S)

$3.49

$

In Stock, Qty 9

0

2

Toro 52_144_05

Shaft-0il Pump

$

$

Currently unavailable

3

Toro 52_422_01

Spacer-Shim

$

$

Currently unavailable

4

Toro 52_043_05

Gear-0il Pump

$

$

Currently unavailable

5

Toro 52_393_09

Rotor Set

$

$

Currently unavailable

6

Toro 52_096_03

Cover-Oil Pump

$

$

Currently unavailable

7

Kohler X-67-64

Screw
(Superseded to 25 086 101-S)

$2.99

$

Usually ships in 2-5 days

0
