30117 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 000000001 - 000999999) (1990) FUEL PUMP-ENGINE KOHLER MODEL NO. MV16S-TYPE 56511 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

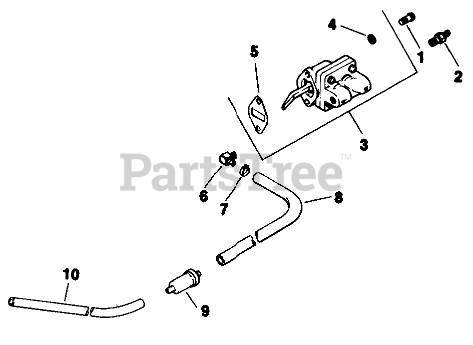

FUEL PUMP-ENGINE KOHLER MODEL NO. MV16S-TYPE 56511 Parts Diagram

  • Title
1

47_086_08

Screw-T.H.

$

$

Not available

2

Kohler X-380-1

Connector
(Superseded to X-380-1-S)

$3.99

$

In Stock, only 1 left!

0

3

Toro 52_559_01

Pump-Fuel (Incl. Ref. #4 & 5)

$

$

Currently unavailable

4

Kohler X-25-63

Washer
(Superseded to X-25-63-S)

$2.49

$

In Stock, only 3 left!

0

5

25_041_05

Gasket-Fuel Pump

$

$

Not available

6

25_155_02

Connector-90deg.

$

$

Not available

7

Kohler X-426-9

Clamp
(Superseded to X-426-9-S)

$4.99

$

In Stock, only 3 left!

0

8

Toro 52_353_18

Line-Fuel

$

$

Currently unavailable

9

Toro 45_050_01

Filter-Fuel

$

$

Currently unavailable

10

Toro 25_353_03

Line-Fuel

$

$

Currently unavailable
