30117 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 000000001 - 000999999) (1990) AIR INTAKE-ENGINE KOHLER MODEL NO. MV16S-TYPE 56511 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

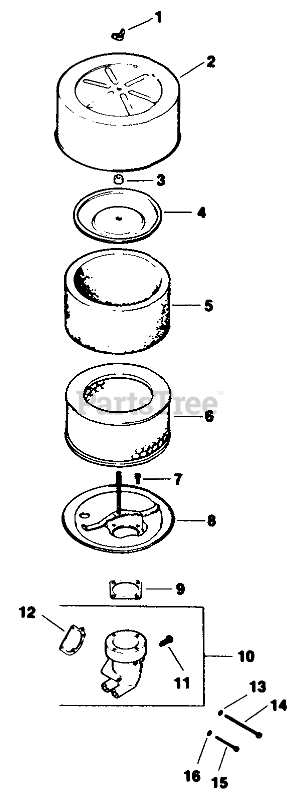

AIR INTAKE-ENGINE KOHLER MODEL NO. MV16S-TYPE 56511 Parts Diagram

  • Title
1

Toro X-276-7

Nut-Wing

$

$

Currently unavailable

2

Toro 45_082_01

Cover-Air Cleaner

$

$

Currently unavailable

3

$

$

Not available

4

52_082_04

Cover-Inner

$

$

Not available

5

Toro 45_083_01

Element

$

$

Currently unavailable

6

Toro 45_083_02

Element

$

$

Currently unavailable

7

Toro X-67-98

Screw-H.C.

$

$

Currently unavailable

8

Toro 52_094_06

Base-Air Cleaner

$

$

Currently unavailable

9

Toro 277093

Gasket-Air Cleaner

$

$

Currently unavailable

10

Toro 52_754_02

Kit-Elbow (Incl. Ref. #11 & 12)

$

$

Currently unavailable

11

52_086_11

Screw-H.C

$

$

Not available

12

Toro 25_041_06

Gasket-Elbow

$

$

Currently unavailable

13

Toro X-22-9

Washer

$

$

Currently unavailable

14

Toro X-50-57

Screw-R.H.M.

$

$

Currently unavailable

15

Toro X-50-37

Screw-R.H.M.

$

$

Currently unavailable

16

Toro X-25-79

Washer

$

$

Currently unavailable

$

$

Currently unavailable
