30116 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 009000001 - 009999999) (1989) HANDLE ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

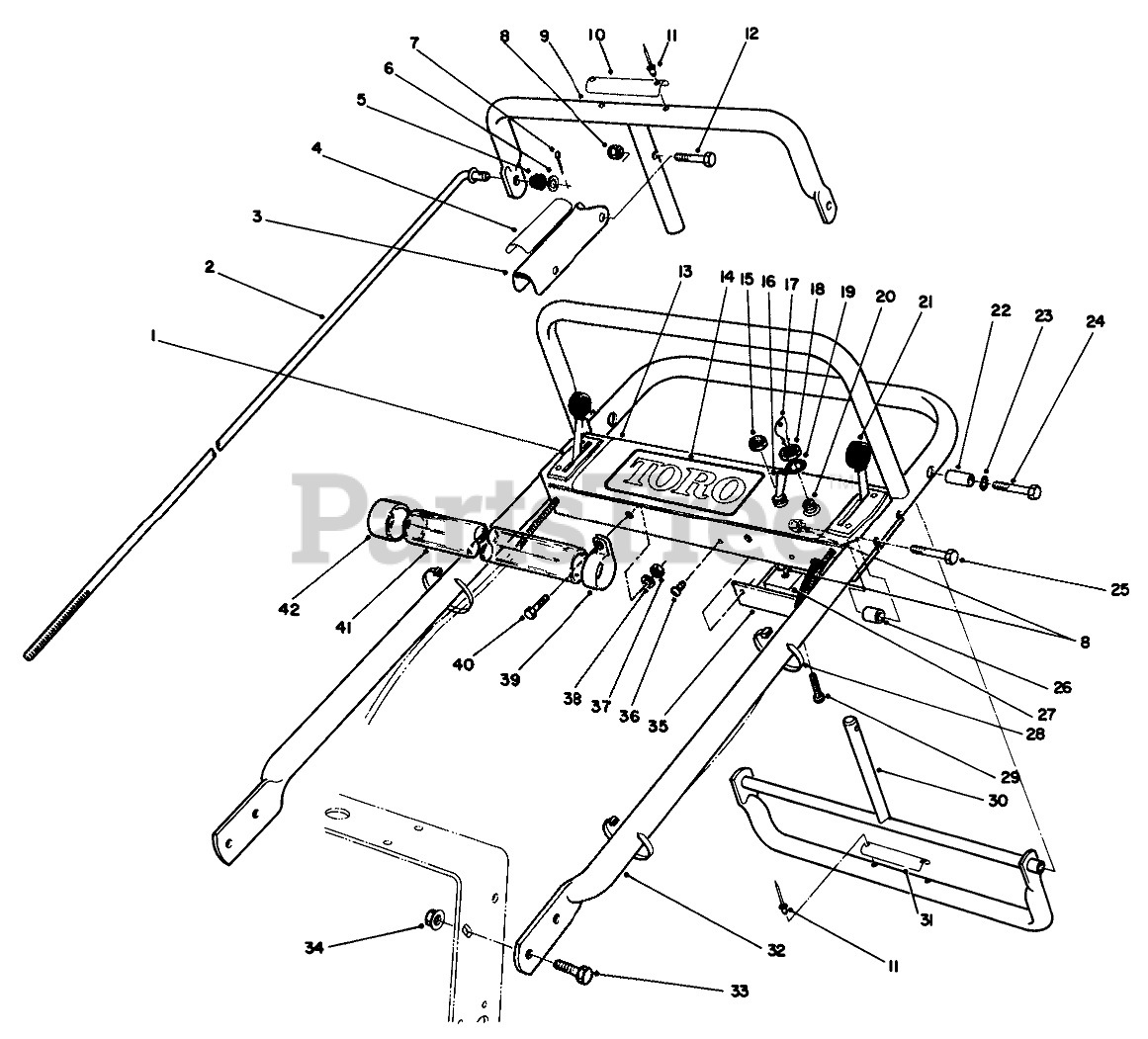

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 54-3060

CHOKE CONTROL

$

$

Not available

2

Toro 54-3070

ROD-CONTROL

$

$

Not available

3

Toro 51-4850

Lever-Parking Brake
(Superseded to 51-4850-03)

$38.99

$

In Stock, only 1 left!

0

4

Toro 52-2010

DECAL-LEVER, PARKING

$5.99

$

Usually ships in 3-6 days

0

5

Toro 237-141

GROMMET-RUBBER

$2.99

$

In Stock, Qty 14

0

6

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

7

Toro 3272-4

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

8

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 51-4730

Bar-Control
(Superseded to 51-4730-03)

$

$

Not available

10

Toro 54-2740

DECAL-CONTROL BAR

$

$

Not available

11

Toro 3290-54

RIVET-BLIND

$0.99

$

In Stock, only 2 left!

0

12

Toro 32105-1

SCREW-SHH

$3.49

$

In Stock, Qty 7

0

13

Toro 68-9680

Panel-Control
(Superseded to 74-0790)

$

$

Not available

14

Toro 54-2870

RECOIL PANEL DECAL

$

$

Not available

15

Toro 218-500

NUT
(Superseded to 3218-19)

$0.99

$

Usually ships in 3-6 days

0

16

Toro 37-2610

Switch (Clutch)(Incl. Ref. #15)
(Superseded to 92-6328)

$

$

Not available

17

Toro 62-7770

KEY-IGNITION

$4.99

$

In Stock, only 1 left!

0

18

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

19

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

20

Toro 23-0660

lgnition Switch (Incl. Ref. #17-19)

$23.99

$

In Stock, only 1 left!

0

21

Toro 54-3050

THROTTLE CONTROL

$151.99

$

Usually ships in 3-6 days

0

22

Toro 51-4790

PIVOT-SPACER

$

$

Not available

23

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

24

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

25

Toro 32105-14

SCREW-SHH

$3.49

$

Usually ships in 3-6 days

0

26

Toro 54-2970

SPACER

$27.99

$

Usually ships in 3-6 days

0

27

Toro 37-7600

RECTIFIER-BRIDGE

$27.99

$

In Stock, only 1 left!

0

28

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

29

Toro 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0

30

Toro 51-4760

Control-Pivot
(Superseded to 106-5477-03)

$202.99

$

Usually ships in 3-6 days

0

31

Toro 52-2120

DECAL-REVERSE HANDLE

$

$

Not available

32

Toro 51-4550

HANDLE-UPPER
(Superseded to 51-4550-01)

$

$

Not available

33

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

34

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

35

Toro 57-5810

PANEL-BOTTOM

$

$

Not available

36

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

37

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

38

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

39

Toro 2412-102

CLAMP-R

$9.49

$

Usually ships in 3-6 days

0

40

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

41

$

$

Not available

42

Toro 65-5890

CAP-END

$

$

Not available
