30116 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 009000001 - 009999999) (1989) ENGINE ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

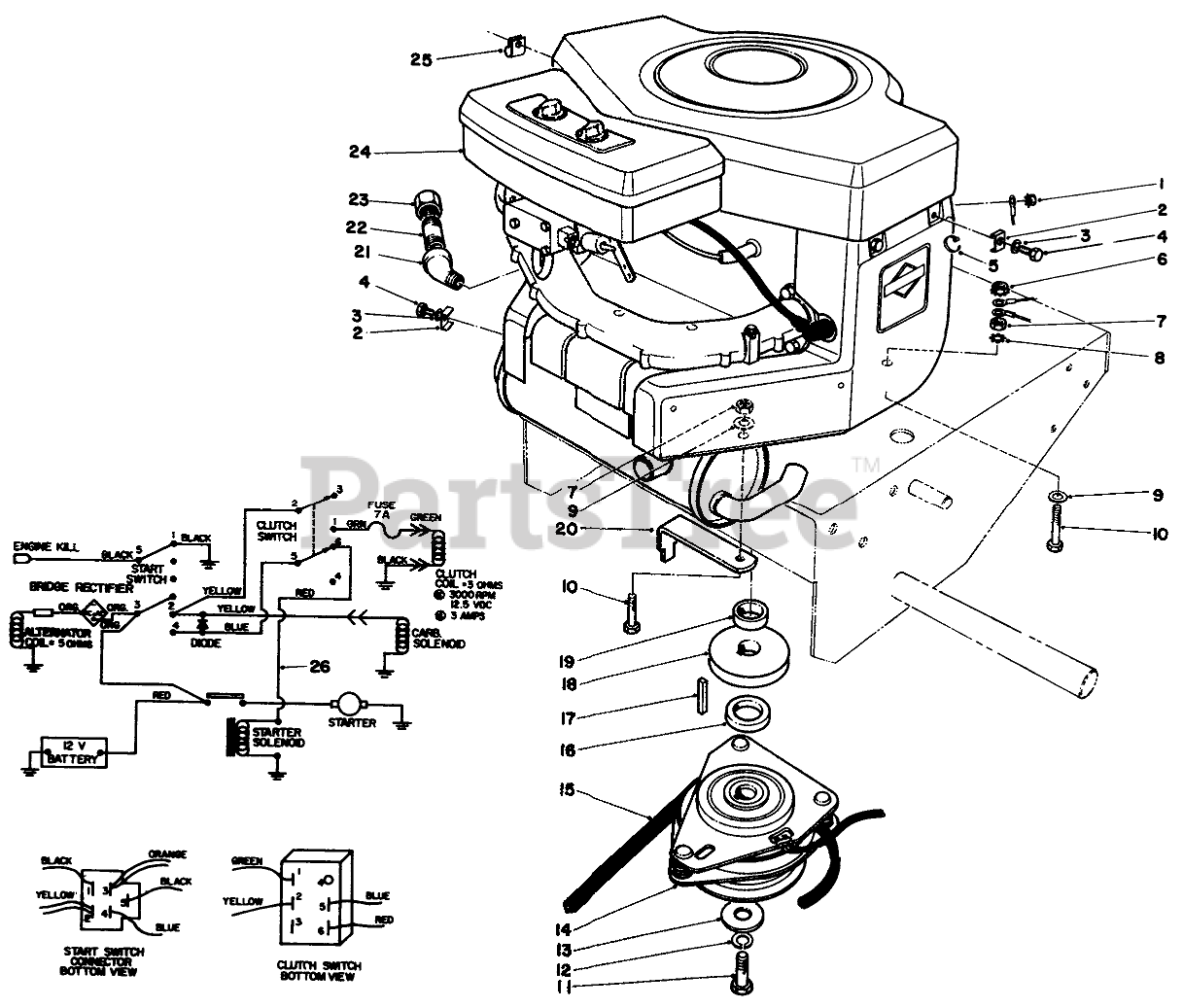

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

2

Toro 29-9550

CLAMP-CABLE

$

$

Not available

3

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

4

Toro 3214

Bolt

$

$

Currently unavailable

5

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0

6

Toro 32149-1

NUT-KEPS

$6.49

$

In Stock, Qty 9

0

7

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

8

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

9

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

10

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

11

Toro 3212-24

SCREW-HH

$24.99

$

Usually ships in 3-6 days

0

12

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

13

Toro 44-8160

WASHER-CLUTCH

$

$

Not available

14

Toro 54-3200

CLUTCH/BRAKE
(Superseded to 105-2635)

$576.99

$

In Stock, only 1 left!

0

15

Toro 542750

V-Belt-Deck Drive (36" & 44- Cutting Units)

$

$

Currently unavailable

15

Toro 55-7660

V-BELT

$64.99

$

In Stock, only 1 left!

0

16

Toro 51-3280

SPACER-LOWER

$

$

Not available

17

Toro 5-1336

KEY-SQUARE

$10.99

$

In Stock, Qty 5

0

18

Toro 51-4460

Pulley-Drive
(Superseded to 100-3251)

$

$

Not available

19

Toro 51-3290

Spacer-Upper

$

$

Not available

20

Toro 51-4540

Retainer-Clutch
(Superseded to 51-4540-03)

$21.99

$

In Stock, only 1 left!

0

21

Toro 2811-3

ELBOW

$

$

Not available

22

Toro 289-42

NIPPLE

$18.99

$

Usually ships in 3-6 days

0

23

Toro 288-4

CAP-PIPE

$23.99

$

In Stock, only 1 left!

0

24

Engine-Briggs & Stratton Model 402707 Type 0158-01

$

$

Not available

25

Toro 2412-73

CLAMP-R

$3.49

$

Usually ships in 3-6 days

0

26

Toro 57-4240

16 HP WIRE HARNESS

$

$

Not available
