30116 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 008000001 - 008999999) (1988) SULKY KIT MODEL NO. 30122 (OPTIONAL) Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

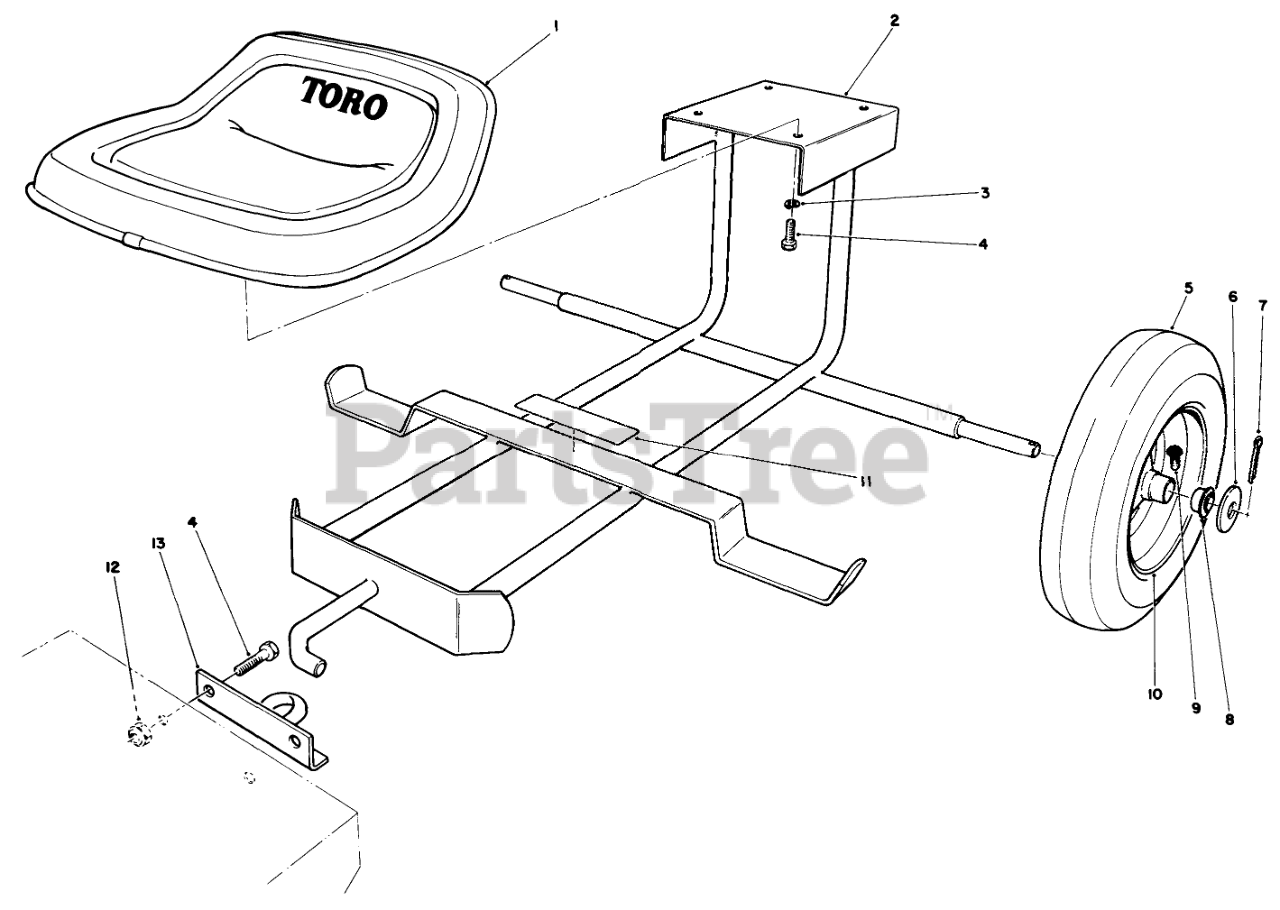

SULKY KIT MODEL NO. 30122 (OPTIONAL) Parts Diagram

  • Title
1

$

$

Not available

2

Toro 55-9810

Frame ASM

$

$

Not available

3

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

4

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 16

0

5

$161.99

$

Usually ships in 3-6 days

0

6

Toro 3256-39

WASHER-FLAT

$1.49

$

In Stock, only 3 left!

0

7

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 17

0

8

Toro 55-3740

BEARING

$

$

Not available

9

Toro 55-3730

VALVE STEM-INNER TUBE

$11.99

$

Usually ships in 3-6 days

0

10

Toro 55-3750

WHEEL

$

$

Not available

11

Toro 55-9900

SULKY DECAL

$

$

Not available

12

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 61-9710

Bracket-Hitch
(Superseded to 68-4190)

$

$

Not available
